Automatic 5L Tin Can Making Machine 80CPM Output For Rectangular Can
Automatic 5L Tin Can Making Machine 80CPM Output For Rectangular Can
Automatic 5L Tin Can Making Machine 80CPM Output For Rectangular Can
Automatic 5L Tin Can Making Machine 80CPM Output For Rectangular Can
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Sunnran
Price :
Negotiable
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
20
Delivery Time :
150 working days
Packaging Details :
Wooden case
Type :
Packaging Line
Applicable Industries :
Food & Beverage Factory, Paint
Showroom Location :
None
Condition :
New
Application :
Food, Chemical
Packaging Type :
Vacuum packing , wooden case
Packaging Material :
Metal, Tinplate
Automatic Grade :
Fully-automation
Driven Type :
PLC or Advanced Motion control system
Voltage :
380V
Dimension(L*W*H) :
78300x1700x2450mm
Weight :
15000 KG
Warranty :
1 Year
Key Selling Points :
High quality with Competitive Price
Marketing Type :
Ordinary Product
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Motion control system
Applicable range: :
Rectangular can
Output: :
Max.80 CPM
Can size: :
1-5L
Air pressure: :
Not lower than 0.6Mpa
Connection height: :
1000±10mm
Description

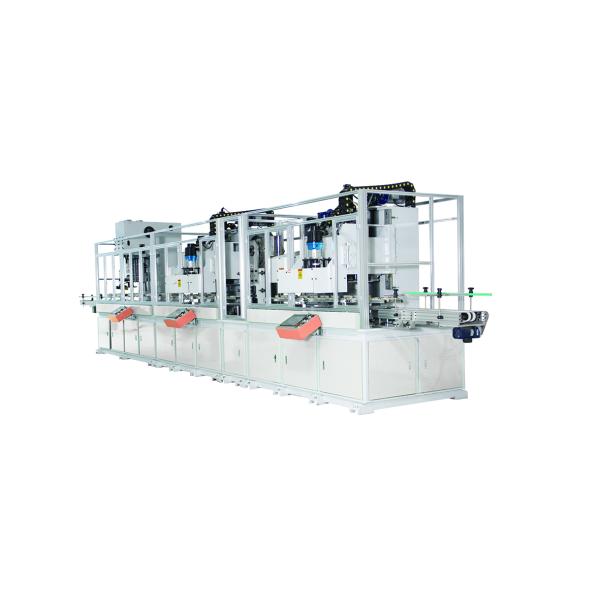

High Speed Rectangular Tin Can Production Line For Tin Can Making
Automatic 5L Tin Can Making Machine 80CPM Output For Rectangular Can
Two types of rectangular line can be selected by customer to meet their speed requirement , ZD-60S, ZD-S. ZD-60S can reach stable speed: 80CPM. Ultrasonic sensor equipped makes the can orientation more accurately. The adopts of dual expanding technique grants the machine better synchronism and faster speed. Integrated single head, single mold flanging and seaming can avoid can deformation effectively. The successive rotary lid delivery structure can feed the lids stably & quickly.

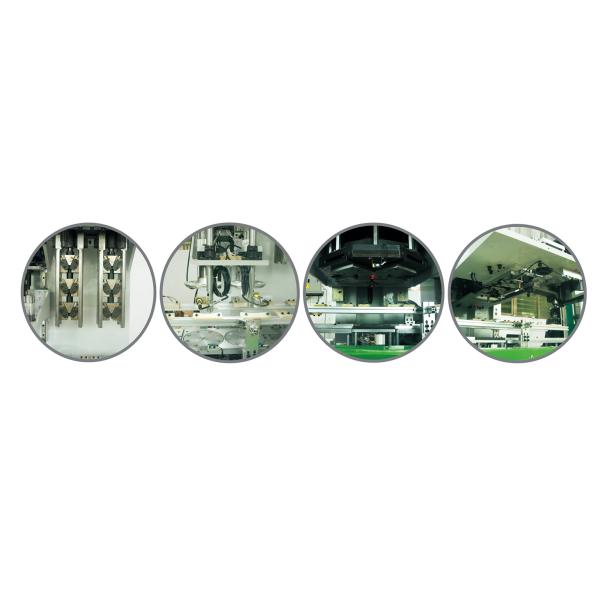

Details of the machine
Automatic 5L Tin Can Making Machine 80CPM Output For Rectangular Can

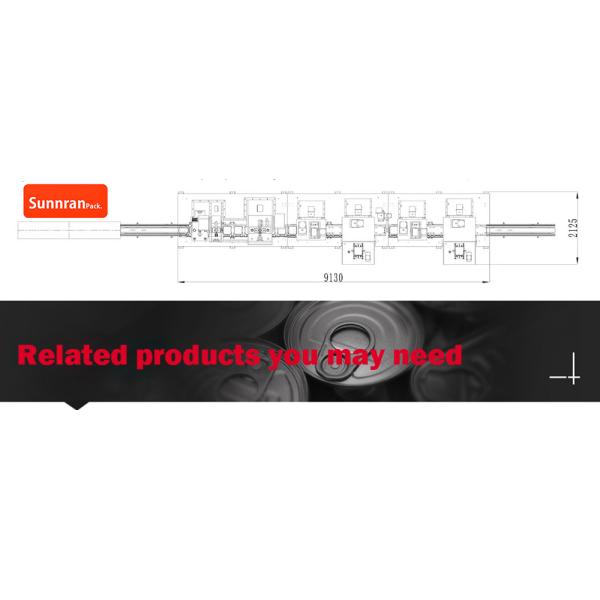

Layout
Automatic 5L Tin Can Making Machine 80CPM Output For Rectangular Can
Welding line
Automatic 5L Tin Can Making Machine 80CPM Output For Rectangular Can
Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.
Automatic welder
Wire speed
Can diameter
Can height
Can material
Power capacity
6-24m/Min
99-180mm
70-330
Tinplate,Ni-plate,SS
26Kw
Internal & external coating machine
Coating speed
Can diameter
Coating width
Power Consumption
Power source
10-35m/min
52-300
10-14
0.6Kwh
220V
Induction oven
Conveying speed
Heater Qty.
Power
Cooling water
Air source
9-30m/min
3 x 2m/Heater
380V , 50Hz
>30L/min>400Kpa/cm2<20℃
