Specifications
Certification :
E-Mark, CE, FCC, RoHS
Pixel :
720P*480P
Applies to :
Rear View Camera Display System(RVC), 360° Around View Monitor System(AVM)
Supported :
NTSC/PAL
Brand Name :
Customized
MOQ :
300
Price :
Negotiatable
Packaging Details :
Regular Export Packaging, Customized
Delivery Time :
30~60 days
Payment Terms :
T/T, L/C
Supply Ability :
100000/Month
Application :
Automotive
Description

FEATURES:

  • CMOS image sensor;

  • Dynamic assisted line;

  • IP6K9K;

  • NTSC Supported.

  • Apply for car rearview camer, 360 SVM camera, car dash camera, etc.

SPECIFICATIONS:

Image Sensor

CMOS
Effective Pixel
 728(H) x 560(V), 400K
Horizontal View Angle
 120± 3º
Vertical View Angle
 98± 3º
Minimum Illumination
 0.1 lux
Maximum Illumination
 100,000 lux
Dynamic Range
 74dB
Automatic Gain Control (AGC)
 Yes
Automatic Exposure Control (AEC)
 Yes
Output Pixel
 720(H) x 480(V)
Signal Output
 CVBS
Image Output
 Mirrored/Non-mirrored
Response Time
 <1s (From fuzzy image to clear image)
Operating Temperature
-40℃～85℃
Storage Temperature
 -40℃～95℃
Operating Humidity
 ≤95%RH
Power Consumption
 <150mA
Lens Ingress Protection
 IP69K
Software Customized Support
Hardware Customized Support
Appearance Customized Support
Bracket Customized Support

SIZE OF CAMERA:

CMOS Image Sensor CVBS Camera With Dynamic Assisted Line And IP6K 9K Certification

IMAGE DISPLAY:

  • 720P*480P video output;

  • Mirrored / non-mirrored image output;

  • More clear night vision than general products.

CMOS Image Sensor CVBS Camera With Dynamic Assisted Line And IP6K 9K Certification

APPLICATIONS:

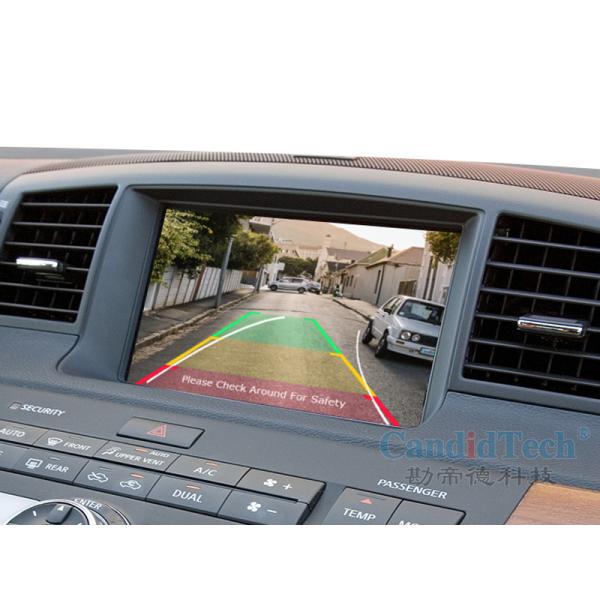

Rear View Camera Display System(RVC)

RVC is one of the driver assistance system. It through the camera which installed on the rear of vehicle, to convert the rear view into electrical signals, and transmit to real-time video on the car display screen, to assist driver for reversing or parking.

Adding assisted line into the real-time video, can help driver to estimated the distance between bumper and rear obstacles, and take action in time to avoid accident.

CMOS Image Sensor CVBS Camera With Dynamic Assisted Line And IP6K 9K Certification

CMOS Image Sensor CVBS Camera With Dynamic Assisted Line And IP6K 9K Certification

CMOS Image Sensor CVBS Camera With Dynamic Assisted Line And IP6K 9K Certification

Position 60mm

to the left of rear center
Installation Height
 1045mm to the level ground
Installation
 Angle 34°
Blind Spot Angle
 12°
Vertical Blind Spot Distance
 264mm
Angle of Elevation
 14°


Remarks:

1. Above installation status are for reference only, the actual installation will be based on practical car 3D data.

2. The installation for camera must comply with local law and regulations.

Our current product lines cover vehicle cameras for different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, Microwave Radar Blind Spot Detection Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email: sales2@candidelectronics.com for more details.
