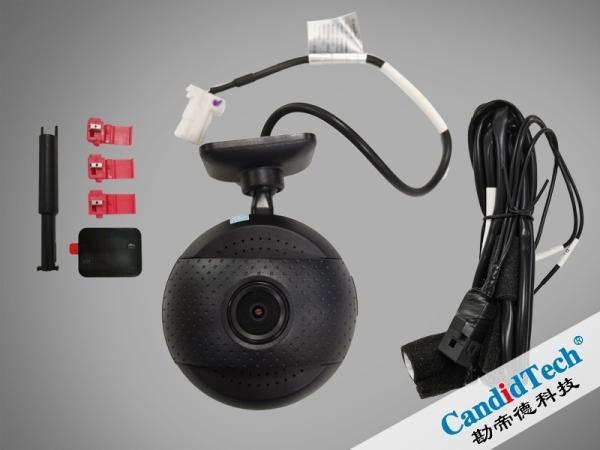

64G TF Card Dash Camera With Monitor Front Dual Recording Optional
64G TF Card Dash Camera With Monitor Front Dual Recording Optional
64G TF Card Dash Camera With Monitor Front Dual Recording Optional
64G TF Card Dash Camera With Monitor Front Dual Recording Optional
64G TF Card Dash Camera With Monitor Front Dual Recording Optional
64G TF Card Dash Camera With Monitor Front Dual Recording Optional
64G TF Card Dash Camera With Monitor Front Dual Recording Optional
64G TF Card Dash Camera With Monitor Front Dual Recording Optional
64G TF Card Dash Camera With Monitor Front Dual Recording Optional
64G TF Card Dash Camera With Monitor Front Dual Recording Optional
64G TF Card Dash Camera With Monitor Front Dual Recording Optional
64G TF Card Dash Camera With Monitor Front Dual Recording Optional
Specifications
Customization :
OEM/ODM
Monitoring :
Real-time video checking
Output :
High definition
Calibration :
Ultra wide angle
Recording :
Front view recording or front and rear view dual recording optional
Storage :
64G TF card
Brand Name :
Customized
Certification :
E-Mark, CE, FCC, RoHS
MOQ :
300
Price :
Negotiatable
Packaging Details :
Regular Export Packaging, Customized
Delivery Time :
30~60 days
Payment Terms :
T/T, L/C
Supply Ability :
100000/Month
Application :
Automotive
Description

Kindly reminder: the installation and usage of car cameras and dash cameras must comply with local law and regulations.

SPECIFICATIONS:

Front Camera

Horizontal FOV

 120±3°
Vertical FOV 62±3°
Horizontal Resolutions ≥ 630 TV Line
Vertical Resolutions ≥ 600 TV Line
F/No 1.8
Waterproof Level IP5K5K
Structure 6G+IR Filter

Image Sensor
Resolutions 1928(H) x 1088(V) (16:9 mode)
Sensitivity 4.0 V/lux-sec
Night Vision Low light level night vision
Frame Rate 30 fps (1080P)
SNR 48dB min
Dynamic Range 120dB min
Minimum Illumination 50IRE@0.1 Lux
Maximum Illumination 100,000 Lux

Memory

Capacity

 8~32GB (can be recorded for 6h)
Video Files MP4
Data Protection File encryption function
Data Processing When memory card is full, the new videos will cover the old ones.

Image Compressed Format

 H.264
Compression Ratio 200:1

Operation Mode

Collision Lock Recording

 Automatic lock protection when collision
Privacy Protection Sound turn-off optional
Circular Recording Mode Recording time 1/3/5 minutes setting optional
Auto Power On Yes

Video Output

Video Format

NTSC
Output Interface CVBS signal connect with Wi-Fi then output to mobile phone APP
Frame Correction Build-in

Power

Power Supply

 Battery + ACC

Operation Voltage

 9~16VDC

Opeartion Current

 270mA

Quiescent Current

 < 1mA
Power Consumption 3W

General

Operation Temperature

 -20℃～70℃

Storage Temperature

 -40℃～95℃

DVR Weight

 450g(for reference only)
Rear-view Recording Kit (Optional)
Horizontal FOV 120°±3°
Vertical FOV 62°±3°
Image Compressed Format H.264 (MP4)
Photo Format JPG
Video Pixel 2 million pixels
Video Output Signal LVDS
Operation Voltage 5VDC
Minimum Illumination 0.1 lux
Frame Rate 30 fps
Waterproof Level IP6K9K
Resolutions 1920(H) x 1080(V)

SPECIAL FUNCTIONS:

1) Ultra Wide Angle Image Calibration

64G TF Card Dash Camera With Monitor Front Dual Recording Optional

2) Wi-Fi Connect: Real-time Video Display

User can watch real-time video on smart phone, the camera and view angle are adjustable when installation.

  • Real-time video output to smart phone;
  • Smart phone can be consider as a monitor;
  • User can adjust the camera view angel through smart phone APP.

64G TF Card Dash Camera With Monitor Front Dual Recording Optional

3) Wi-Fi Connect: Video Playback

User can watch video playback on smart phone.

  • Continuous video recording(1080P);
  • Connect with smart phone APP through Wi-Fi;
  • Previous video playback;
  • User can copy the videos to the smart phone;
  • User can upload the videos to the Internet by smart phone.

64G TF Card Dash Camera With Monitor Front Dual Recording Optional

INSTALLATION:

Take left hand drive vehicle for example, the recommend position for dash camera installation is right to the rear view mirror. The actual installation position can be changed according to different vehicles.

64G TF Card Dash Camera With Monitor Front Dual Recording Optional

Rear view camera is optional. The dash camera can work with rear view camera to record the surroundings from both front and rear.

64G TF Card Dash Camera With Monitor Front Dual Recording Optional

Our current product lines cover vehicle cameras for different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email:sales2@candidelectronics.com for more details.
