Pickles Automatic Filling Machines Auto Bottle Filling Machine
Pickles Automatic Filling Machines Auto Bottle Filling Machine
Pickles Automatic Filling Machines Auto Bottle Filling Machine
Pickles Automatic Filling Machines Auto Bottle Filling Machine
Pickles Automatic Filling Machines Auto Bottle Filling Machine
Pickles Automatic Filling Machines Auto Bottle Filling Machine
Pickles Automatic Filling Machines Auto Bottle Filling Machine
Pickles Automatic Filling Machines Auto Bottle Filling Machine
Specifications
Place of Origin :
Shang Hai
Brand Name :
LeadWorld
Certification :
CE
MOQ :
1 SET
Price :
Price Negotiable
Packaging Details :
Film bag& plastic cartons& wooden cartons
Payment Terms :
According to your needs
Product Name :
Automatic Filling Machine
After-sale Service :
Provided
Capacity :
Customized
Control System :
PLC
Dimension :
Customized
Filling Speed :
Customized
Material :
Stainless Steel
Operation Mode :
Automatic
Power :
220V/50HZ
Type :
Automatic
Warranty :
3 Year
Description

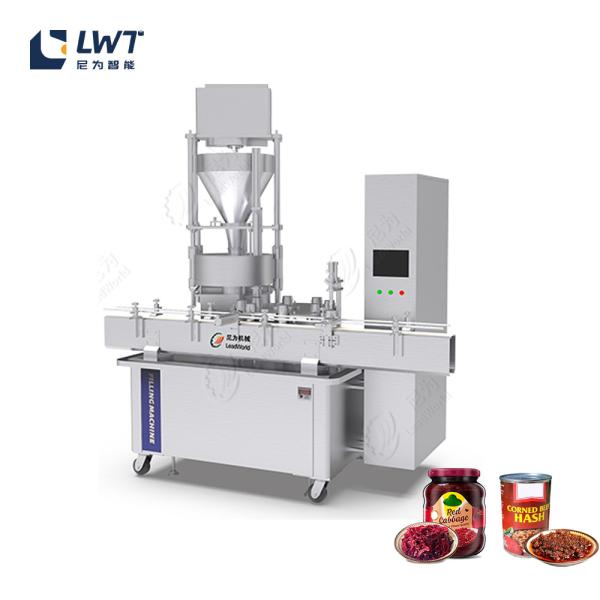

Pickles Filling Machine

This machine is suitable for bottles, tin cans, plastic cans, jars and other containers. Mainly used in pickles, mushroom sauce, red oil Flammulina velutipes, kelp, kimchi, dried radish, plums, olives, Pleurotus eryngi, mustard greens, toon seasoning, sauerkraut (crumbs) and other pickle products. The main functions include automatic material feeding.automatic servo screw measuring cup measurement, automatic filing, automatic oil filling, and automatic transportation.

Pickles Automatic Filling Machines Auto Bottle Filling Machine

Features

1.User friendly, control by color touch screen interface, Panasonic servo motor and Danfoss frequency converter.

2.The Stainless steel is made by SUS304,IP65 high protection grade, easy to clean.

3.lt is suitable for no liquidity material, during the filling process, the oil and the material are separated.

4.The sensor is intelligently controlled, no bottle no filling.

Pickles Automatic Filling Machines Auto Bottle Filling Machine

Main Technical Parameters

Model LW-FSP50 LW-FSP20

Container Specification

 Φ50-100mm Φ50-150mm

Pickles filling range

 20ML-300ML 50g-5000g

Oil filling range

 5ML-100ML 5ML-60ML,50ML-150ML

Packaging speed

 30-50p/min 10-25p/min

Filling accuracy

 <±1% ≤±1%

Gross power

 3p 380v 4.5kw 3P 380v 3kw

Gas consumption

 0.6MPa 0.1m3/min 0.6MPa 0.1m3/min

Dimension of machine

 1700x1500x2300 1700*1200*2300

Application products
