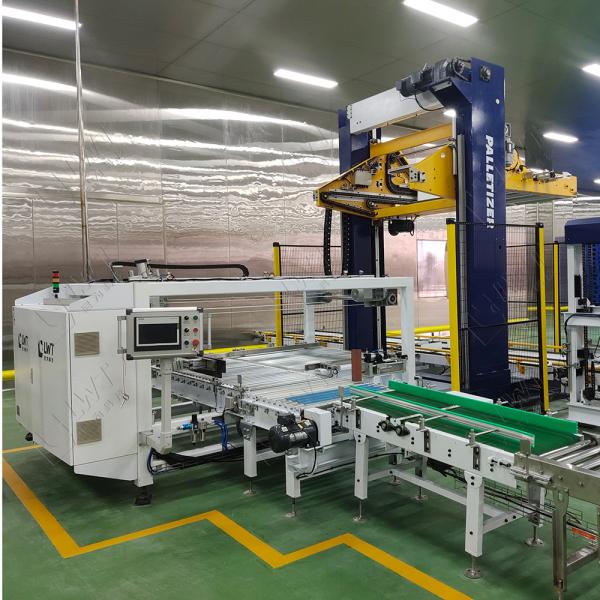

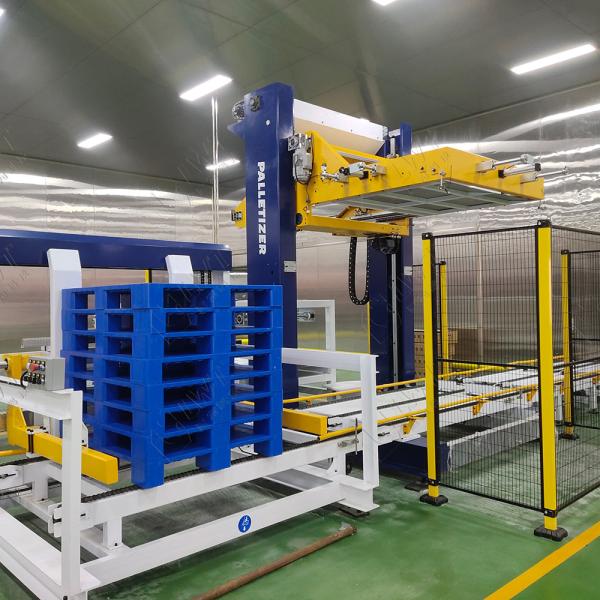

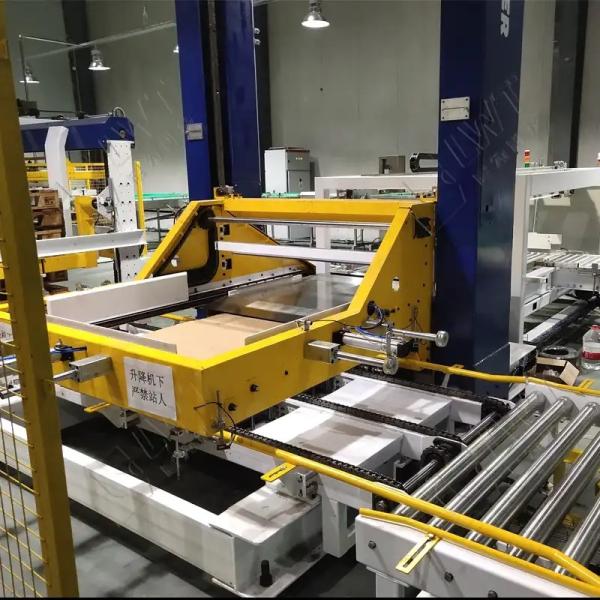

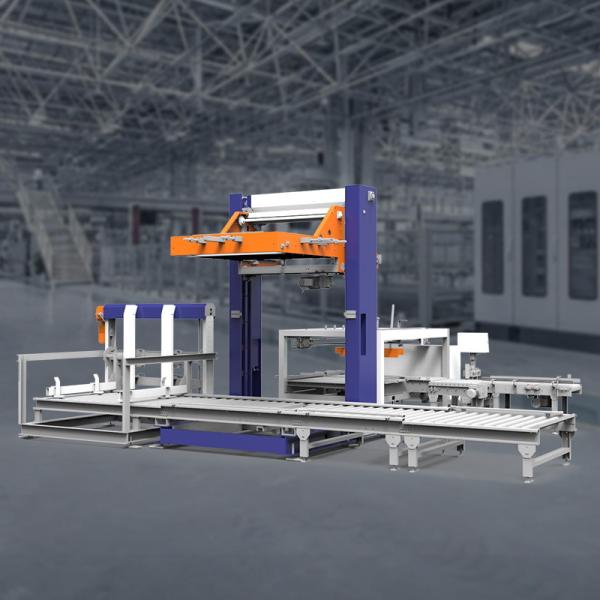

Gantry palletizer
Gantry palletizer
Gantry palletizer
Gantry palletizer
Gantry palletizer
Gantry palletizer
Specifications
Place of Origin :
Shang Hai
Brand Name :
LeadWorld
Packaging Details :
Film bag& plastic cartons& wooden cartons
Supply Ability :
200 Set/Sets per Month Gantry Palletizing Machine
Price :
Price Negotiable
Certification :
CE
MOQ :
1 SET
Delivery Time :
45 days
Payment Terms :
According to your needs
Packaging Type :
Bottles, CANS, Cartons, case, Barrel, Stand-up Pouch, Bags, Film, Foil, Pouch, Cartons
Packaging Material :
Plastic, Paper, Metal, Glass, Wood
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
AC 380V
Dimension(L*W*H) :
OEM
Weight :
1000 KG
Warranty :
3 years
Core Components :
Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox
Product name :
Automatic Gantry Palletizing Machine
Name :
Canned Food Palletizer Depalletizer
Capacity :
8-20 Cases/min
Packing speed :
10-65bag/min
Description

LWT Palletizer series is used for food and beverage, the chemical industry, etc. The package is suitable for all kinds of cartons, plastic boxes, stretch film, barrels, and other types of packing stack, Machiner's hosts include the double speed belt, steering mechanism, sorting box area, pallet carton area, main part lifting mechanism, pallet output roller line, etc.


Main Technical Parameters:

Model LWT-PSS10A LWT-PSS10D LWT-PSG30 LWT-PSG60
Capacity 5-12carton/min 5-10carton/min 20-30carton/min 40-60carton/min
Pallet Size L1200*W1200*150mm L1200*W1200*150mm
Stacking way Servo Gantry
Stacking H <1800mm <1900mm <2000mm <2000mm
Equipment Size 3800*1000*1400mm 2620*2440*3500mm L8400*W4700*H3700mm
Power 380V 7KW 380V/3P 7.2KW 380V/3P 11KW 380V/3P 12KW
Air Consumption 0.8m3/min 210L/min 6kg/cm2 110L/min 6kg/cm2 180L/min 6kg/cm2
Conveyor H 650mm 650mm 850mm 850mm
Pallet Conveyor H 300mm 650mm 650mm 650mm
Max weight 1000KG 1500KG 1500KG 1500KG

Feature:

The structural framework for the welding way is strong and durable and has adjustable base functions, the main lifting platform USES the SEW motor drive, the entry speed conveyor belt to separate into the box, the entry expedite conveyor belt to separate into the box to separate, the stack area roller conveyor,2.5m chain conveyor output, free roller conveyor, use the safety protection device, USES Germany Siemens PLC control system. man-machine interface, portable fault automatic display.
