900A 50KVA 40KW Emergency Diesel Generator , 4 Cylinder Diesel Generator
900A 50KVA 40KW Emergency Diesel Generator , 4 Cylinder Diesel Generator
900A 50KVA 40KW Emergency Diesel Generator , 4 Cylinder Diesel Generator
900A 50KVA 40KW Emergency Diesel Generator , 4 Cylinder Diesel Generator
Specifications
Brand Name :
ACEPOW
Model Number :
API-50
Certification :
CE,ISO, SASO
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10000SETS/YEAR
Delivery Time :
25 DAYS
Packaging Details :
NUDE PACKING,PLYWOOD CASE
Genset type :
diesel powered generator
Produce place :
Fujian, China
Genset Condition :
Brand New
Speed :
1500RPM 1800RPM
Options :
ATS

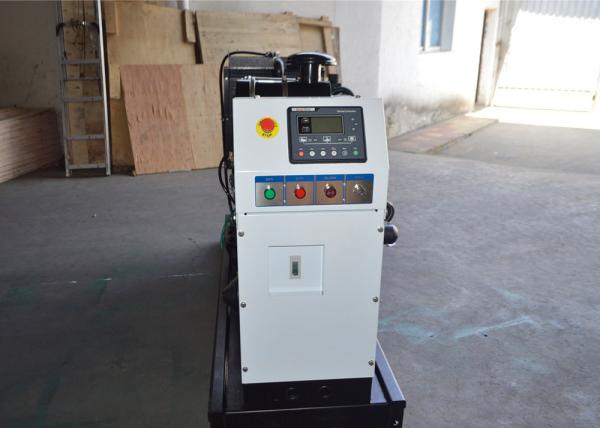

Control panel :
LCD Digital Display,Deepsea / ComAp / Harsen / Smartgen 6110
Rated current :
8-900A
Alternator :
Marathon,Stamford,Leroy Somer,SLG
Engine :
Isuzu brand
Fuel tank :
Base Fuel Tank/External FueL Tank
Description

Emergency Power Isuzu Diesel Powered Generator 50kva 40kw 4bd1-Z 4 Cylinder Closed Water Cooling Power Generators

Product description

Rated power: 5kVA-2500kVA
Frequency: 50/60Hz
Speed: 1500/1800rpm
Voltage: 110/220V, 230/400V, 220/380V

Engine Brand: ISUZU

Number of Cylinders: 6

Cylinders Arrangerment: Vertical in-line

Aspiration: Turbo & Inter cooler

Starting method: Electric motor start

Type : 6-cylinder,In-line,Water cooled,Four-stroke,Turbo & Inter cooler

Governing Type: Mech

Governor Regulation

Coolant Capacity (L): 30

Rotation direction (face to the flyweel): Anticlockwise

The lowest stable speed at zero load (r/min): ≦ 1000

Starting motor capactiy (V.kw): 24V 3.7KW

Charging generator capactiy (V.A): 28V 35A

Accumulator capacity (V.Ah): 24V 120Ah

Alternator: ACEPOW Brushless alternator

Conttrol System: Separaately Excited BY P.M.G.

Insulatiion System : Class H

Protection: IP23

Rated Power Factor: 0.8

Stator Winding: Double Layer Concentric

Winding Pitch: Two Thirds

Winding Leads : 12

Exciter Rotorr Resisttance: 0.091 Ohms Per Phase At 22°C

R.F.I. Suppression: BS EN 61000-6-2 & BS EN 61000-6-4,VDE 0875G, VDE 0875N. refer to factory for others

Type: Super-silent, silent, open, mobile, container type

Optional: ATS, water heater, fuel heater...

Controller: Deepsea,Smartgen, Datakon

Delivery time: within 20 days

Export port: Fuzhou, China

Warranty: Running 1000 hours or 12 months

Genset Model API-50
Prime Power (kw/kva) 40/50 Standby Power(kw/kva) 44/55
Net Weight (kgs)-Open 820 Net Weight (kgs)-Silent 1030
Dimensions (mm)-Open 1950x800x1200 Dimensions (mm)-Silent 2400x930x1250
Engine Parameter:
Manufacturer/Model: ISUZU 4BD1-Z, 4 stroke Fuel System
Aspiration: Turbocharged 100% Load (Prime): 10.6L/H
Fuel System: Direct type Fuel Pump, 75% Load(Prime): 8.0 L/H
Cylinder numbers 4 cylinders 50% Load (Prime): 5.3 L/H
