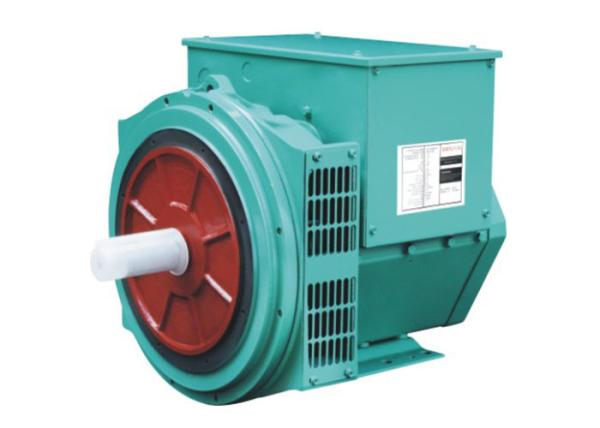

100 Percent Copper 250KVA 200KW Stamford Type Alternator
100 Percent Copper 250KVA 200KW Stamford Type Alternator
100 Percent Copper 250KVA 200KW Stamford Type Alternator
100 Percent Copper 250KVA 200KW Stamford Type Alternator
Specifications
Brand Name :
ACEPOW
Model Number :
UC274K
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10000SETS/YEAR
Delivery Time :
25 DAYS
Packaging Details :
CARTON BOX
Product name :
Brushless Stamford Type Alternator
Model :
UC274K
Materials :
100% Copper
Frequency :
50HZ 60HZ
Protection :
IP23
HS code :
85016100
Description

100% Copper Wire Brushless Alternator Stamford Type Alternator 3 Phase Generator 250KVA 200KW

MECHANIC FEATURES
FARME
All industrial standard generators is IP21(NEMAL),also IP 23 is optional,But rated power will decrease 5%,
Marine standard generators is lp23.Air filter is optional,but rated power will decrease 5% If installed
SHAFT AND KEY
All of the generator rotors pass balance test,The vibrations are lower than the minimum of BS6861 P.1,G 2.5 two bearing generator has a half-key testing balance
TERMINALAND TERMINAL BOX:
The three-field generator has 12 leads brought out to the terminals in terminal box.The terminals are put on the non drive end.The box is equipped with removable panels
ENGINEADAPTORAND COUPLING DISC:
ASG Series generators have two kinds construction
ASG Series single-bearing,engine adaptor: SAE0,1,2,3 and 4;Coupling discs:SAE8,10,11.5,14 and 18 are available
ASG Series double-bearing,engine adaptor: SAE0,1,2,3,4 and 5 are available
VOLTAGEREGULATION:
Voltage regulation refers to the change of voltage from no-load to full-load with power factor ranging from 0.8 to 1 and 3%’s fluctuation of the speed of engine.Voltage is adjusted via potentiometer of AVR

Model Prime Output (1500rpm/50Hz) 400V Prime Output (1800rpm/60Hz) 440V
KVA KW KVA KW
AP-164A 8.1 6.5 10.2 8.2
AP-164B 11 8.8 13.8 11
AP-164C 13.5 10.8 16.9 13.5
AP-164D 16 12.8 20 16
AP-184E 22.5 18 28.8 23
AP-184F 27.5 22 34.4 27.5
AP-184G 31.3 24 37.5 30
AP-184H 37.5 30 46.9 37.5
AP-184J 40 32 50 40
AP-224C 42.5 34 52.5 42
AP-224D 50 40 62.5 50
AP-224E 60 48 70 56
AP-224F 72.5 58 87.5 70
AP-224G 85 68 97.5 78
AP-274C 100 80 117.5 94
AP-274D 120 96 137.5 110
AP-274E 140 112 167.5 134
AP-274F 160 128 190 152
AP-274G 180 144 218.5 174.8
AP-274H 200 160 245 196
AP-274J 230 184 281 224.8
AP-274K 250 200 299 239.2
AP-314C 250 200 294 235

100 Percent Copper 250KVA 200KW Stamford Type Alternator
