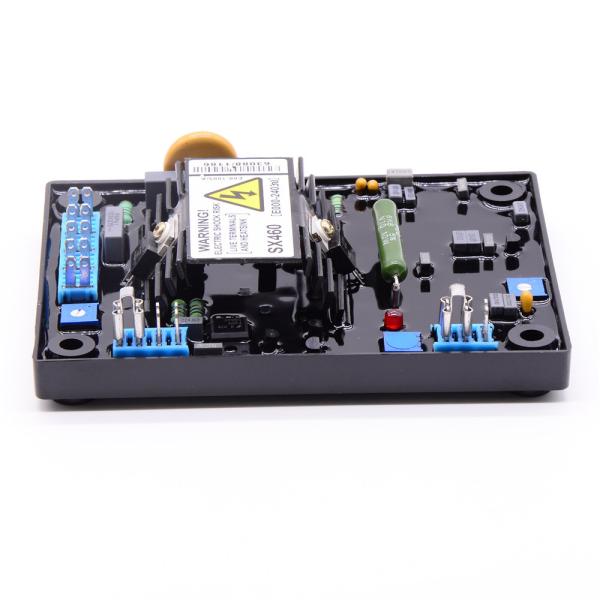

Two Wire Sx460 6 Amps 90 Voltage Generator AVR
Two Wire Sx460 6 Amps 90 Voltage Generator AVR
Two Wire Sx460 6 Amps 90 Voltage Generator AVR
Two Wire Sx460 6 Amps 90 Voltage Generator AVR
Specifications
Brand Name :
ACEPOW
Model Number :
SX460 white
Certification :
CE,ISO, SASO
Place of Origin :
Fujian, China
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10000SETS/YEAR
Delivery Time :
25 DAYS
Packaging Details :
NUDE PACKING,PLYWOOD CASE
Materials :
Plastic
type :
Generator AVR SX460
Function :
Automatic voltage regulator
Condition :
Brand New
Voltage :
82~200VA
Feature :
High Efficiency
Model number :
SX460
Description

1 Year Warranty Generator Parts Generator Avr Sx460 For Ac Brushless Generator 50hz 60hz

Features
With 4% engine governing
After 10 minutes.
Applies to Mod status F onwards. Generator de-rate may apply.
Factory set, semi-sealed, jumper selectable.
Non condensing.

Sensing/Power input
Voltage
120 (95 to 132) or 240 (190 to 264) Vac,1 phase 2 wire jumper selectable
Frequency
50/60 Hz jumper selectable
Output
Voltage
Max. 90 Vdc @ 207 Vac input
Current
Continuous 4A,Intermittent 6A for 10 seconds
Voltage Regulation
< +/-1% (with 4% engine governing)

Two Wire Sx460 6 Amps 90 Voltage Generator AVR

Two Wire Sx460 6 Amps 90 Voltage Generator AVR

The Stamford VOLTAGE REGULATOR SX460 is linked with the main stator windings and the exciter field windings to provide closed loop control of the output voltage with load regulation of +/- 1.0%.

In addition to being powered from the main stator, the VOLTAGE REGULATOR also derives a sample voltage from the output windings for voltage control purposes. In response to this sample voltage, the VOLTAGE REGULATOR controls the power fed to the exciter field, and hence the main field, to maintain the machine output voltage within the specified limits, compensating for load, speed, temperature and power factor of the generator.
