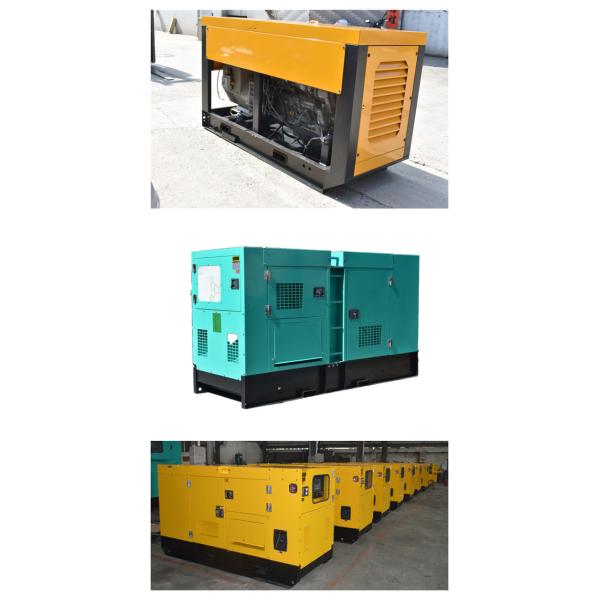

20KVA 15KW 480V 3 Phase Portable Diesel Generator
20KVA 15KW 480V 3 Phase Portable Diesel Generator
20KVA 15KW 480V 3 Phase Portable Diesel Generator
20KVA 15KW 480V 3 Phase Portable Diesel Generator
Specifications
Brand Name :
ACEPOW
Model Number :
APD-20
Certification :
CE,ISO, SASO
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10000SETS/YEAR
Delivery Time :
25 DAYS
Packaging Details :
NUDE PACKING,PLYWOOD CASE
Cooling system :
Air cooling
type :
air cooled diesel generator
Engine model :
F3L912d
Alternator type :
Self-excitation , brushless type
After-sales service provided :
12 months
Alternator material :
Brand New 100% copper,Cast alloy aluminum cooling fan
Governer :
Mechanically
Name :
20kva generator
Product name :
silent air cooled wind kva diesel generator portable
Engine type :
3-cylinder ,4-Stroke
Description

Ac Three Phase Air Cooled Diesel Generator 20kva 15kw Deutz Diesel Air Cooled Engines F3l912d Open Silent Genset

Features :

Voltage 110v-480v
Engine Deutz
Prime Power / Standby Power 7KW-600KW / 8KW - 660KW
Alternator Acepow, Leroy somer, Stamford, Marathon,
Controller Deepsea,Comap, Smartgen
Circuit Breaker ABB/SCHNEIDER
Type Open / Silent

Long life, easy operation, easy maintenance

Equip Superior quality " VARTA " battery

Best quality soundproof Materials to Redue the sound

Best quality Power Coating/ Mat Finish

Stainless Steel all Screws , Nuts , Bolts and Door Locks & Hinges , Anti-rust.

TECHNICAL DATA :

MODEL APD-20
PRIME POWER (KVA/KW) 20/16 Rated frequency(Hz) 50
STANDBY POWER(KVA/KW) 22/17.6 Power factor 0.8
Rated voltage(V) 400/230 Ambient temperature(℃) 40
Rated speed(rpm) 1500 Altitude(m) 1000
ENGINE MANUFACTURER DEUTZ ALTERNATOR MANUFACTURER STAMFORD
Model F3L912D Number of Phase 3
Rated Power(kW) 16 Connection Type 3 Phase and 4Wires
No. of cylinders & configuration In-Line 4 cylinders Number of Bearing 1
Method of operation 4-stroke Power Factor 0.8
Speed regulation Electronic governor Protection Grade IP23
Starting system DC 24V Electronic start Terminal 12
Cooling method Closed-circuit cooling system Winding/ Pitch 100% Copper 2/3 Pitch
Total displacement(L) 4.03 Cooling Fan Cast alloy aluminum
Bore x Stroke(mm) 101* 126 Exciter Type Brushless, Self-Exciting
100% Load fuel consumption(L/h) ≤ 13 Insulation Class, Temperature Rise H/H

20KVA 15KW 480V 3 Phase Portable Diesel Generator
