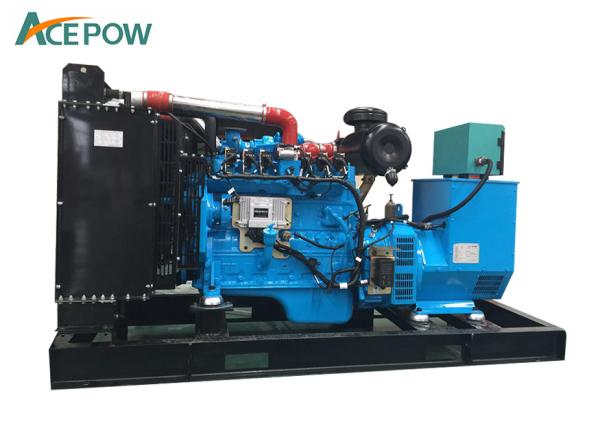

40KW 50KVA Natural Gas Standby Generator , Natural Gas Powered Electric Generator
40KW 50KVA Natural Gas Standby Generator , Natural Gas Powered Electric Generator
40KW 50KVA Natural Gas Standby Generator , Natural Gas Powered Electric Generator
40KW 50KVA Natural Gas Standby Generator , Natural Gas Powered Electric Generator
Specifications
Brand Name :
ACEPOW
Model Number :
APNG-50
Certification :
CE,ISO, SASO
Place of Origin :
Fujian, China
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10000SETS/YEAR
Delivery Time :
25 DAYS
Packaging Details :
NUDE PACKING,PLYWOOD CASE
Materials :
Steel
type :
gas generator set
Usage :
Common Units, Standby Unit, Emergency Crew
Excitation Mode :
AC Rotating Exciter
Genset Type :
Silent / Canopy
Package :
Plywood,plastic film packing
Rated voltage :
110V/220V/230V/240V/380V
Output type :
AC Single/Three Phase
Product name :
China 300kW genset natural gas generator set in with soundproof canopy
Description

50kva 40kw Natural Gas Generator Silent Natural Gas Standby Generator Natural Gas Electricity Generator

Features :

The nature gas engine is designed base on the diesel engine of international well known brand--Cummins.
The research and develop is worked according to the gas combustion characteristics and control principle.
The main part production process is strictly follow the international advanced level.
The special design and manufacturing could ensure the engine reliability and durability.

• Applicable for both island mode and parallel with mains grid, strong capability of working with variable loads.
• Advanced technology of lean-burn, simple for commissioning, operations and maintenance.
• Adopting highly intelligent gas control system, top brands of Germany Motortech, USA Altronic and Swiss Huegli.
• Heat Recovery system to realize CHP, Cogeneration and Distribution Energy.

GENSET MODEL APC-50G
Prime output(KW/KVA) 40/50 Standby output (KW/KVA) 44/55
Rated Voltage(V) 220/380,230/400;etc Frequency (HZ) 50HZ/60HZ
DIESEL ENGINE MODEL 4BTAA3.9 Bore x store (mm) 102x120
Rated ouput (kw) 45 Compression Ration 10.5:1
Intaking method Turbocharged and after cooled Displacement (L) 3.9
Cylinder Numbers 4 Governing method Electric
Rated Speed (rpm) 1500 Start method 24V Electric starting
ALTERNATOR BRAND Stamford Phase Connection 3 phase
Model UCI224D Winding connection 4 wires connected
Rated Output KW 40 Excitation method Brushless
Rated Speed rpm 1500 Insulation class H
Genset Weight open type(kgs) 900 Genset Size open type (mm) 1940*840*1150
