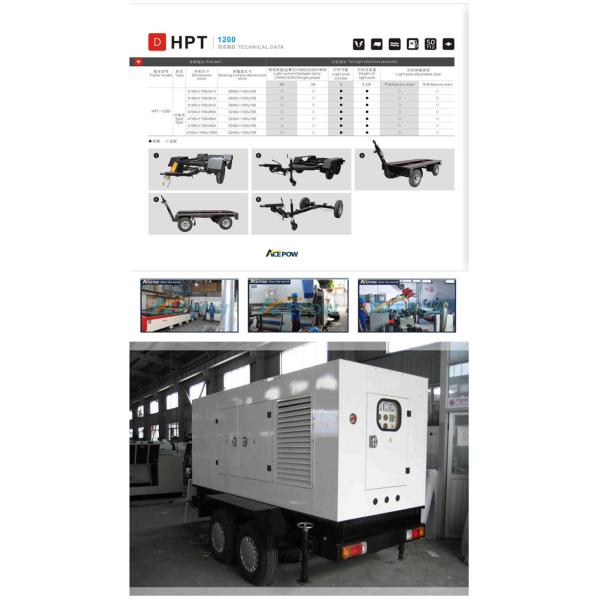

Water Cooled 1500RPM 106KVA Mobile Genset Trailer
Water Cooled 1500RPM 106KVA Mobile Genset Trailer
Water Cooled 1500RPM 106KVA Mobile Genset Trailer
Water Cooled 1500RPM 106KVA Mobile Genset Trailer
Specifications
Brand Name :
ACEPOW
Model Number :
API-106
Certification :
CE,ISO, SASO
Place of Origin :
Fujian, China
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10000SETS/YEAR
Delivery Time :
25 DAYS
Packaging Details :
NUDE PACKING,PLYWOOD CASE
Engine brand :
Isuzu
Genset type :
mobile trailer generator
Usage :
Common Units, Standby Unit, Emergency Crew
After-sales service provided :
Video technical support,Online support,Free spare parts
Condition :
Brand New, non-use
Key selling points :
Easy to Operate,Automatic,Energy saving
Wheel Braking System :
Trailer-Roadside Type
Description

Mobile Trailer Generator 106KVA Isuzu Engine Mobile Genset Trailer Water Cooled Diesel Generator Set

Product descriptions :

Engine Brand: ISUZU

Number of Cylinders: 6

Cylinders Arrangerment: Vertical in-line

Aspiration: Turbo & Inter cooler

Starting method: Electric motor start

Type : 6-cylinder,In-line,Water cooled,Four-stroke,Turbo & Inter cooler

Coolant Capacity (L): 30

Rotation direction (face to the flyweel): Anticlockwise

The lowest stable speed at zero load (r/min): ≦ 1000

Starting motor capactiy (V.kw): 24V 3.7KW

Charging generator capactiy (V.A): 28V 35A

Accumulator capacity (V.Ah): 24V 120Ah

Alternator: ACEPOW Brushless alternator

Conttrol System: Separaately Excited BY P.M.G.

Insulatiion System : Class H

Protection: IP23

Rated Power Factor: 0.8

Stator Winding: Double Layer Concentric

Winding Pitch: Two Thirds

Winding Leads : 12

Canopy

* All canopy designed with modular principles

* All metal canopy parts painted by electrostatic polyester power paint

* Soundproof design ensure that the noise level be controlled in small scope

* Convenient to lift and move

* Easy to maintenance and operate

Output Ratings
Generating Set Model Prime
API-106 106KVA/85KW
Dimensions and Weights
Generating Set Model Length (L) mm Width (W) mm Height (H) mm
API-106 2200 900 1450
APIS-106 2920 1080 1670
Dry = With Lube Oil Wet = With Lube Oil and Coolant
Ratings and Performance Data
Engine Brand ISUZU
Engine Model 6BG1-ZL1
Alternator Brand Stamford
Alternator Model UC274D / UCI274D
Control System Smartgen HGM6120N
Circuit Breaker Type /
Frequency / Phase 50Hz/ Three phase
Engine Speed ( RPM) 1500Rpm
Generator set Manufacture Acepow
Oil Consummption (g/kW.h) ≦ 0.4
Volatage (V) 220/230/240
Silencer Noise Reduction (dBA) 10-20
Fuel Consumption:
API-113 100% Load 75% Load 50% Load
H/L 28.10 21.07 14.05
(Based on diesel fuel with a specific gravity of 0.85 and conforming to BS2869,Class A2)
