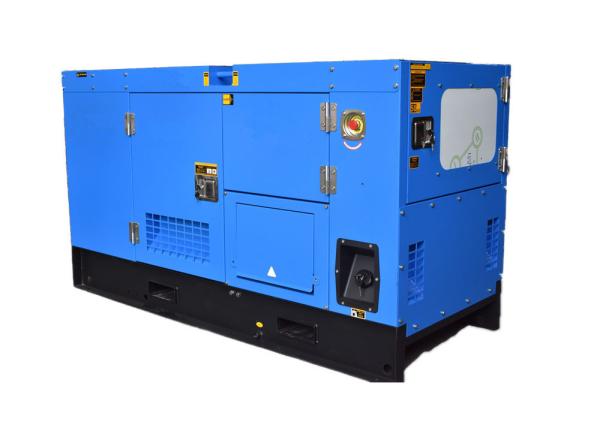

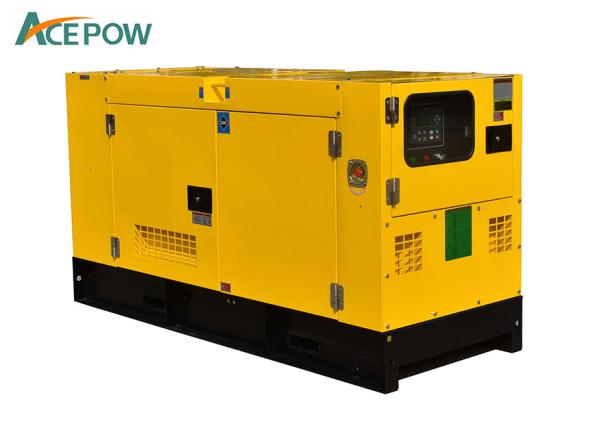

25KVA 400V Canopy Diesel Generator , Electric Start Diesel Generator
25KVA 400V Canopy Diesel Generator , Electric Start Diesel Generator
25KVA 400V Canopy Diesel Generator , Electric Start Diesel Generator
25KVA 400V Canopy Diesel Generator , Electric Start Diesel Generator
Specifications
Brand Name :
ACEPOW
Model Number :
APN-25
Certification :
CE,ISO, SASO
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10000SETS/YEAR
Delivery Time :
25 DAYS
Packaging Details :
NUDE PACKING,PLYWOOD CASE
Genset Frequency :
50HZ 60HZ
Genset Speed :
1500 rpm / 1800 rpm
Genset Rated voltage :
400/230V,220/380V
Genset Control panel :
Deepsea DSE6120
Options :
Automatic Transfer Switch/Parallel System
Engine :
Newmax
Type :
canopy diesel generator
Color :
At your requirement
HS Code :
850211
Genset power :
25KVA 20KW
Description

China Diesel Engine Canopy Diesel Generator Newmax 25kva 20kw Diesel Generator Varta Battery Electric Start Generator

Engine
* Heavy duty diesel engine
* Four stroke, water cooled
* 12V and 24V stater and charge alternator
* Cooling radiator and fan
* Maintenance free battery including ract and cable
* Flexible fuel connection hoses and manual oil sump drain valve
* Exhaust silencer
Alternator
* Brushless, single bearing, flexible disc
* Insulation class: H
* Protection class: IP23
* Self-exciting and Self-regulation
Canopy
* All canopy designed with modular principles
* All metal canopy parts painted by electrostatic polyester power paint
* Soundproof design ensure that the noise level be controlled in small scope
* Convenient to lift and move
* Easy to maintenance and operate

Control System
* Control, monitor and protect the Generator Set including :
* High water temperature
* Low oil pressure
* Over and under speed
* Over current
* Under / Over generator voltage
* Start and stop failure
* Low and high battery voltage
* Charge fail
* Emergency stop

Genset model : APN-25
Main data :
Type: silent
Fuel Tank running hours: 8/10/12H
Prime Power (KW/KVA): 20/25
Standby Power (KW/KVA): 22/27.5
Genset size(mm) (L×W×H): 1730*740*1100
N.W.(kgs): 690
Packing Plastic Films
Engine data :
Model : NM-525
Governor type: Mechanical Governor
Speed (r/min): 1500
Engine Size(mm) 770x520x680
Prime power(KW): 25
12H Fuel consumption(L/h) 8.0
Cylinder No.&Config.: 4-cylinder in-line
Fuel tank Vol.(L): 50
Displacement (L): 2.7
Compression ratio : 18:1
Oil capacity(L) : 7
Electrical system (V): 12
Coolant capacity(L) : 12
Cooling: Forced water-cooling
Aspiration : Natural
Starting Method Electric
Brand: NEWMAX
ATS : Optional
Socket: Optional
Frequency, (HZ) : 50HZ
Voltage (V): 220V/380V
Phase No. : 3
G.W.(kgs) 696
Controller :
