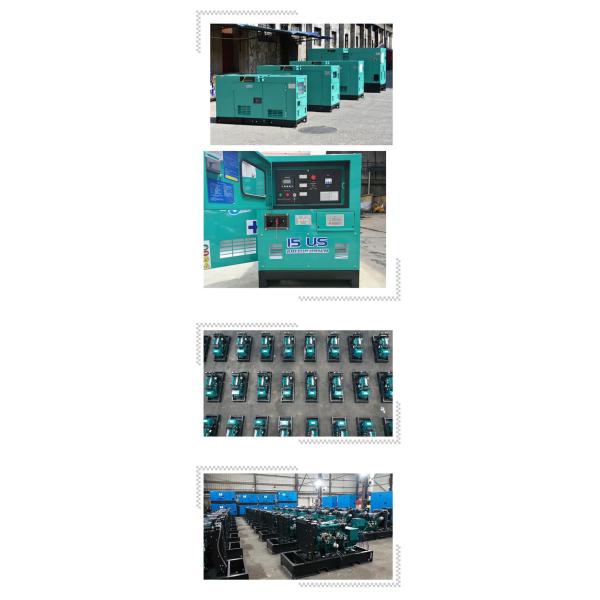

20KVA 15KW Three Phase Canopy Diesel Generator
20KVA 15KW Three Phase Canopy Diesel Generator
20KVA 15KW Three Phase Canopy Diesel Generator
20KVA 15KW Three Phase Canopy Diesel Generator
Specifications
Brand Name :
ACEPOW
Model Number :
APF-20
Certification :
CE,ISO, SASO
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10000SETS/YEAR
Delivery Time :
25 DAYS
Packaging Details :
NUDE PACKING,PLYWOOD CASE
Genset configuration :
Air Breaker
Genset configuration 2 :
External Cable
Optional configuration :
Deepsea 7320 Control system
Optional configuration 2 :
Leak Protection Device
Warranty :
12 Months/1000 Hours
Cooling method :
Water cooled
Control panel :
Deepsea / ComAp / Harsen / Smartgen 6110
Key selling points :
Easy to Operate,Automatic,Energy saving
Engine :
Fawde
Type :
canopy diesel generator
Description

Fawde Generator Set Pricelist Canopy Diesel Generator 20kva 15kw Ac Single Phase Three Phase Power Genset

Features :
Rated power: 5kVA-2500kVA
Frequency: 50/60Hz
Speed: 1500/1800rpm
Voltage: 110/220V, 230/400V, 220/380V
ATS (automatic transfer switch) receptacle
Stainless galvanized zinc plates with strong corrosion resistance
Base fuel tank for at least 8 hours running
Equipped with an industrial muffler
Engine oil pump
Complete protection functions and safety lables
Water jacket preheater, oil heater and double air cleaner, etc.

50hz @ 1500rpm or 60HZ @ 1800rpm all are available
Our Diesel Generator Engine for Choice
1. Cummins Engine 20KVA - 2000KVA
2. Deutz Engine 20KVA - 150KVA
3. FPT Iveco Engine 30KVA - 350KVA
4. Perkins Engine 8KVA - 2000KVA
5. Volvo Engine 85KVA - 700KVA
6. Doosan Engine 60KVA - 850KVA
7. Lovol Engine 20KVA - 150KVA
8.Yangdong Engine 8KVA - 40KVA
9. Weichai Engine 8KVA - 150KVA
10. Shanghai Engine 60KVA-1000KVA
11. Yuchai Engine 20KVA-1125KVA

Output Ratings
Generating Set ModelPrimeStandby
APX-2020KVA/16KW22KVA/18KW
Generating Set ModelLength (L) mmWidth (W) mmHeight (H) mmNet
kg (lb)		Gross
kg (lb)
APX-2015506501050520570
APXS-2019008501100700750
Dry = With Lube Oil Wet = With Lube Oil and Coolant
MODELAPF-20
PRIME POWER (KVA/KW)20/16
STANDBY POWER(KVA/KW)22/17.6
Rated voltage(V)400/230
Rated speed(rpm)1500
Rated frequency(Hz)50
Power factor0.8
Ambient temperature(℃)40
Altitude(m)1000
Connection type3 phase 4 wires
ENGINE MANUFACTURERFAWDE
Model4DW91-29D
Rated Power(kW)23
No. of cylinders & configurationIn-Line 4 cylinders
Method of operation4-stroke
Speed regulationMechanical governor
Starting systemDC 12V Electronic start
Cooling methodClosed-circuit cooling system
Total displacement(L)2.54
Compression ratio17.0:1
BorexStroke(mm)90 * 100
100% Load fuel consumption(L/h)5
