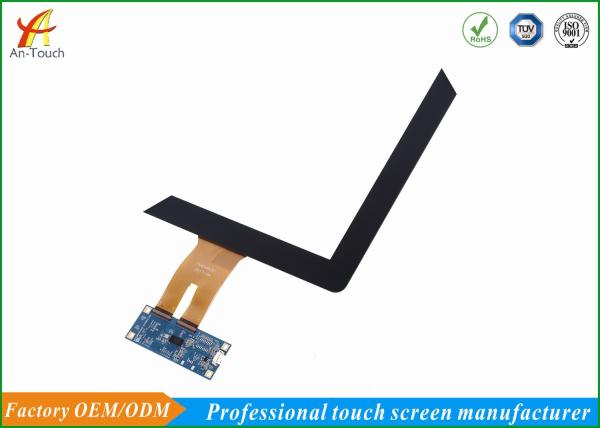

Low Power Smart Home Touch Screen , 15 Inch Touch Panel Scratch Resistant
Low Power Smart Home Touch Screen , 15 Inch Touch Panel Scratch Resistant
Low Power Smart Home Touch Screen , 15 Inch Touch Panel Scratch Resistant
Low Power Smart Home Touch Screen , 15 Inch Touch Panel Scratch Resistant
Specifications
Brand Name :
antouch
Model Number :
AC-C1111-15.0
Certification :
ROHS SGS ISO9001
Place of Origin :
China
MOQ :
1/PCS
Price :
10-100$/pcs / Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
50000/PCS/Month
Delivery Time :
5-8 Work Day
Packaging Details :
Standard Packing With Carton
Screen Diagonal :
15
Ratio :
4:3
Cover Lens :
1.1mm
Outline Dimensio :
361.42*287.42mm
Resolution :
4096*4096
Touch Points :
1-10
Description

Smart Home 15 Inch Touch Screen With Usb Capacitive Waterproof Touch Panel

Product details

Item Specification
Screen size 15.0 inch
Structures Cover Glass+ITO Glass
Surface Hardness >6H
Surface Treatment AG/AF/AR
IC Controller ILITEK 2302
Operating temperature -20℃~70℃
Storage temperature -30℃~80℃
Supply Voltage 3.3V~5V
Transmittance 86% Min
Interface Mode USB/IIC/RS232
Operating System XP win7,8 Android Linux
System Driver No need(USB plug and play)
Touch Points 1-10

Operation Principle:

Capacitive Touch Panel is to use the working current of induction of human body.The operational principle of the projected capacitive touch panel: There are two layers of the ITO layer under the surface of glass. This ITO layer respectively forms the electric field of X axis and Y axis, which can keep balance by crossing the surface of the class. Once the fingers approach the glass surface, the fingers and the electrode X axis or Y axis will form a new electric field, which can make the local capacitance change. Then the controller will determine the location based on capacitance changes.

Projected Capacitive touch screen Features:

1) Response speed fast, smooth touch.

2) Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.

3) Precision-touch capacitive screen is using the body's current-sensing.

4) Accuracy up to 99% proficient in writing, no break no drift.

5) Any point can withstand more than 50 million times touch.

6) Explosion-proof and durable, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, anti-interference ability.

7) Operating systems strong compatibility.

8) Intelligent automatic calibration, use forinternal / external variety of environments.

9) Long life, low maintenance costs.

Low Power Smart Home Touch Screen , 15 Inch Touch Panel Scratch Resistant

G+G means the structure of touch panel using Cover Glass + Sensor Glass. The Sensor Glass have

ITO coating so that it can be sensitive.

Advantages of G+G structure:

(1)High transmittance,>83%

(2)Hard and anti-wear surface.The hardness is 6H.

(3)Excellent corrosion resistance.

(4)Sensitive touch and stable performance.

Application:

►Point-of-information kiosks.

►Vending and ticket sales.

►Electronic catalogs.

►Gaming, lottery, and amusement.

►Public pay phones.

►Multimedia marketing.

►Banking/financial transactions.

►Industrial control rooms.

►Computer-based training.


Customer question

1. How about Sample lead time ?

-------Custom samples 12-18work-days,standard samples 5~10work-days.


2. How about mass production lead time ?

------ 15 days after sample confirmed.


3.Shipping?

------Usually we deliver our goods by DHL,UPS, FedEx etc.


4: Payment term?


------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.


5: How about the warranty?

------ Warranty 1year.
