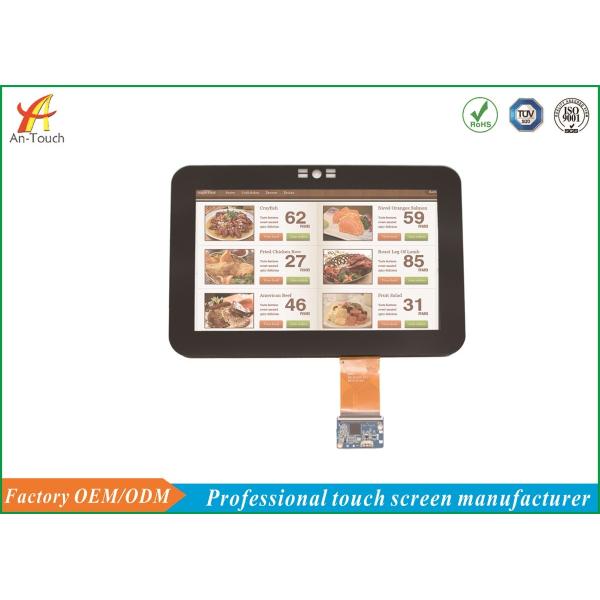

Unique CTP Lcd Capacitive Touchscreen 10.1 Inch For Self - Help Ordering Machine
Unique CTP Lcd Capacitive Touchscreen 10.1 Inch For Self - Help Ordering Machine
Specifications
Brand Name :
antouch
Model Number :
AC-C1361-10.1
Place of Origin :
China
MOQ :
1pcs
Price :
10-100$/pcs / Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000/pcs/Month
Delivery Time :
8-10 Work Days
Packaging Details :
Standard export package
TP Type: :
LCD CTP Touch Screen
Interface: :
USB
Touch Points: :
10 Points
Colour: :
Black (customizable)
IC Controller: :
ILITEK
Transmittance: :
≥85%
Surface Hardness: :
≧6H
Warrently: :
1 Year
Description

Unique 10.1 Inch 10 Point Capacitive LCD CTP Touch Screen for Self-help Ordering Machine

Basic Specification:

Screen size

10.1 inch
Structures Cover Glass+ITO Glass
Ratio 16:10
Surface Hardness >6H
Outline Dimension 260.0*183.0mm
Module View Area 216.36*136.0mm
Active Area 277.03*163.9mm
Cover Lens 2.0mm
Surface Treatment AG/AF/AR
Operating temperature -20℃~70℃
Storage temperature -30℃~80℃
Supply Voltage 3.3V~5V
Transmittance 86% Min
Interface Mode USB/IIC/RS232
Operating System XP win7,8 Android Linux
System Driver No need(USB plug and play)
Touch Points 1-10

Structure & Operating Principle:

Capacitive touch screen is a piece of 2 layer of compound glass with double side transparent conductive

coating that conducts a continuous electrical current across the sensor.

There is electrode pattern printed along the edges distributes a low voltage filed over the conductive layer.

The human body is also an electrical device which has stored electrons and therefore also exhibits

capacitance.

When a finger touches the screen and draws a minute amount of current to the point of contact ,creating a

voltage drop.

The current flow from each corner is proportional to the distance to the touch point. During a touch

,capacitance forms between the finger and the sensor grid. The touch location is calculated from the

changing electrical characteristics of the sensor grid.

Application:

Touch Screen All in one Computers

Touch Screen laptop

POS Machine

Industrial Control industry

Touch Monitor

Information Kiosks

Gaming, Lottery ect

Multimedia marketing

Banking / Fanancial System

Touch Table

Why choose us?

► Our factory is a legal,responsible,capable,experienced factory.

► We have the largest laminting mechine which can up to 65inch.

► In stock for fast delivery provide the best after-sales service.

► We can provide the best design solutions according customer requirements.

► All of our products have been inspected strictly before delivery.

FAQ:

  • How about Sample lead time ?

-------Custom samples 12-18work-days,standard samples 5~10work-days

  • How about mass production lead time ?

------ 15 days after sample confirmed

  • Shipping?

------Usually we deliver our goods by DHL,UPS, FedEx etc.

  • Payment term?

------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.

  • How about the warranty?

------ Warranty 1year

Shipment service:

FedEx, DHL, UPS, TNT, Aramex etc.

Delivery Time:

1.Samples in stock: 1~3 working days

2.Customized project: 10~15days for samples

3.Mass production: 10~18days

High Dedinition Product Map

Unique CTP Lcd Capacitive Touchscreen 10.1 Inch For Self - Help Ordering Machine

Technical Drawings:

Unique CTP Lcd Capacitive Touchscreen 10.1 Inch For Self - Help Ordering Machine
