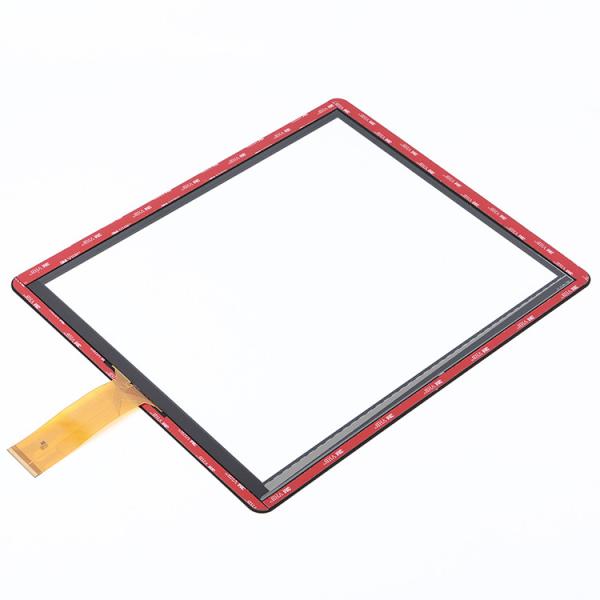

Multi Touch Windows Touch Panel With XP Win7 8 Android Linux Operate
Multi Touch Windows Touch Panel With XP Win7 8 Android Linux Operate
Specifications
Brand Name :
antouch
Model Number :
AC-C173001
Certification :
ROHS SGS ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
50000/PCS/Month
Delivery Time :
5-8 Work Day
Packaging Details :
Standard Packing With Carton
Name :
Windows Touch Panel
Size :
17.3 Inch
Structure :
Cover Glass+ITO Glass
Outline size :
413.88*246.8mm
Operating System :
XP win7 8 Android Linux
Thickness :
3.9±0.15mm
Transmittance :
86% Min
Touch Points :
1-10
Description

Multi Touch Windows Touch Panel With XP Win7 8 Android Linux Operate​

Product details

Multi Touch Windows Touch Panel With XP Win7 8 Android Linux Operate
ItemSpecification
Part NumberAC-C173001
StructuresCover Glass+ITO Glass
Surface Hardness>6H
Outline size413.88*246.8mm
View Area381.89*214.81mm
IC ControllerILITEK 2510/WD8752
Operating temperature-20℃~70℃
Storage temperature-30℃~80℃
Total Thickness3.9±0.15mm
Transmittance86% Min
Interface Mode USB/IIC/RS232
Operating SystemXP win7,8 Android Linux
Touch Points1-10

Operation Principle:

Capacitive touch panel works through body's current induction .When finger is on or close to touch panel surface,due to body electric field, the user and touch panel surface forms one coupling capacitance. For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal, the controller works out the touch point position

Projected Capacitive touch screen Features:

  1. Response speed fast, smooth touch.
  2. Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings.
  3. Any point can withstand more than 50 million times touch.
  4. Operating systems strong compatibility.
  5. Intelligent automatic calibration, use forinternal / external variety of environments.
  6. Long life, low maintenance costs.


G+G means the structure of touch panel using Cover Glass + Sensor Glass. The Sensor Glass have
ITO coating so that it can be sensitive.

Advantages of G+G structure:

  1. High transmittance,>83%.
  2. Hard and anti-wear surface.The hardness is 6H.
  3. Excellent corrosion resistance.
  4. Sensitive touch and stable performance.


Details

Multi Touch Windows Touch Panel With XP Win7 8 Android Linux Operate
Delivery Time:


Samples in stock: 1~3 working days.

Customized project: 10~15days for samples.

Mass production: 10~18days.
Why choose us?

1.Our factory is a legal,responsible,capable,experienced factory.
2.We have the largest laminting mechine which can up to 65inch.
3.In stock for fast delivery provide the best after-sales service.
4.We can provide the best design solutions according customer requirements.
5.All of our products have been inspected strictly before delivery.

Customer question

1. How about Sample lead time ?

-------Custom samples 12-18work-days,standard samples 5~10work-days.
2. How about mass production lead time ?

------ 15 days after sample confirmed.
3.Shipping?

------Usually we deliver our goods by DHL,UPS, FedEx etc.
4: Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid before shipment.
5: How about the warranty?

------ Warranty 1year.
