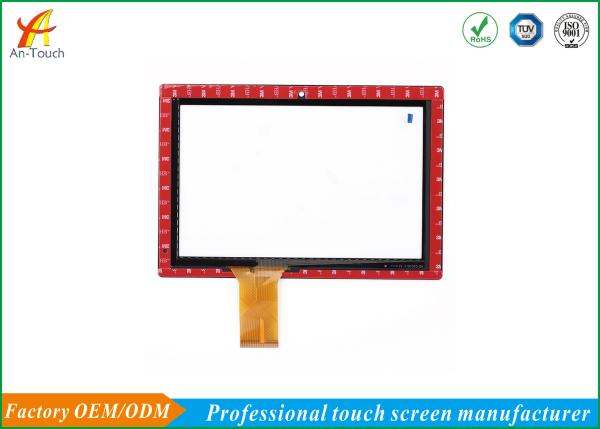

Custom Made Industrial Hmi Touch Panel / Thin Industrial Touch Screen
Custom Made Industrial Hmi Touch Panel / Thin Industrial Touch Screen
Specifications
Brand Name :
antouch
Model Number :
AC-C1336-10.1
Certification :
ROHS SGS ISO9001
Place of Origin :
China
MOQ :
negotiation
Price :
Negotiable
Payment Terms :
T/T, Western Union, D/P, Paypal
Supply Ability :
50000/PCS/Month
Delivery Time :
5-8 Work Day
Packaging Details :
Standard packing with carton
Name :
Industrial Hmi Touch Panel
Screen Diagonal :
Custom Made
Feature :
Thin
Surface Hardness :
>6H
Outline size :
256.37*174.37mm
View Area :
218.5*136.5mm
IC Controller/IC :
ILITEK 2511
Transmittance :
86% Min
Description

Custom Made Industrial Hmi Touch Panel / Thin Industrial Touch Screen

Industrial Hmi Touch Panel Features:

  1. 4096×4096 Resolution with linearity error ≤2mm.
  2. Size available from 7inch to 65inch.
  3. Multi-touch 1 to 10 touch points.
  4. Tempered scratch proof cover glass with high impact resistance.

Industrial Hmi Touch Panel Development process:

  1. Receive customer's technical files, including PCAP drawing, LCD specification.
  2. Recommend standard products or customize products based on customer's requirements.
  3. Offer engineering drawing for confirmation and fill in project kick-off form.
  4. Make samples according to the confirmed drawing.
  5. Debug the samples based on the information on kick-off form, keep the FW.
  6. Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.

Industrial Hmi Touch Panel Application:

  1. Industrial Control industry
  2. Touch Monitor
  3. Information Kiosks
  4. Gaming, Lottery ect
  5. Multimedia marketing
  6. Banking / Fanancial System
  7. Touch Table

Industrial Hmi Touch Panel Parameters

Item Specification
Part Number AC-C1336-10.1
Structures Cover Glass+ITO Glass
Surface Hardness >6H
Outline size 256.37*174.37mm
View Area 218.5*136.5mm
IC Controller/IC ILITEK 2511
Operating temperature -20℃~70℃
Interface Mode USB/IIC/RS232
Operating System XP win7,8 Android Linux
Touch Points 1-10

Custom Made Industrial Hmi Touch Panel / Thin Industrial Touch Screen

Operation Principle:

Capacitive touch panel works through body's current induction .When finger is on or close to touch panel surface,due to body electric field, the user and touch panel surface forms one coupling capacitance. For high frequency current, capacitance is direct conductor, then fingers suck a small current from the contact point, through amplifying and accurately calculating this current signal, the controller works out the touch point position
