220VAC 0.6mpa Industrial Vacuum Sealing Machine Meat Sealer 4times/Min
220VAC 0.6mpa Industrial Vacuum Sealing Machine Meat Sealer 4times/Min
220VAC 0.6mpa Industrial Vacuum Sealing Machine Meat Sealer 4times/Min
220VAC 0.6mpa Industrial Vacuum Sealing Machine Meat Sealer 4times/Min
Specifications
Brand Name :
Fair Machinery
Model Number :
FZL-420
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union. L/C
Supply Ability :
100 pcs per month
Delivery Time :
10-20 days
Packaging Details :
wooden packaged
Material :
304 Stainless steel
Automatic Grade :
Automatic
Key Selling Points :
High-accuracy, Easy to Operate
Application :
Food, MEDICAL, Chemical, Textiles
Driven Type :
Pneumatic
Packaging Type :
Bags, Film, Foil
Packaging Material :
plastic
Function :
Vacuum, Sealing
Accuracy :
±1%
Voltage :
380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ
Description

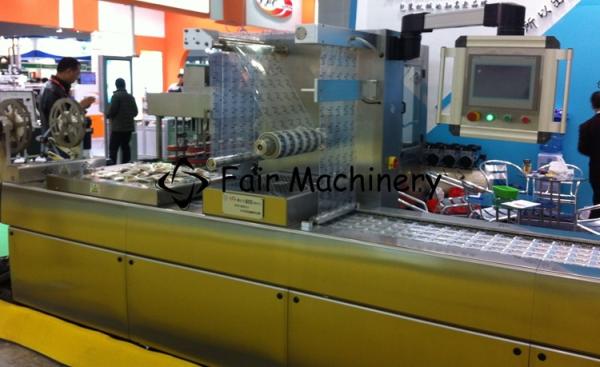

Automatic Meats Seafood sausage Thermoforming Stretch Film Vacuum Packaging Machine
Fully automatic continuous stretch vacuum packaging machine, mainly through the heating of the lower film, and then fill the package into the formed lower film mold cavity, and then enter the heat-sealing vacuum chamber to perform vacuum enrichment and inflation of the package. The upper film and the lower film are heat-bonded to form a packaging bag, and then the package is divided by cross-cutting and slitting. The finished product output of the packaging is automatically completed at one time, and the operation is simple. It greatly reduces the labor force, improves the production efficiency, and saves time and labor, which truly realizes automated production.

1. Photoelectric tracking, color cover film or light film can be used for packaging, reduce costs and improve product quality.
2. This type of vacuum packaging machine adopts servo motor control system.
3. It can be equipped with an automatic coding system according to the user's product packaging requirements.
4. According to the user's product packaging requirements, on the basis of vacuuming, the vacuum packaging machine products can be filled with nitrogen or mixed gases for packaging.
5. Photoelectric eye automatic tracking equipment.
6. Using imported chains, it is suitable for stretching and forming of various thicknesses of soft film, hard film and semi-hard film, and can be specially packaged.
7. Equipped with corner waste recycling system to maintain environmental sanitation.
8. It adopts advanced pallet conveying structure, which is faster and easy to operate.

Technical parameters:
Model FVQ-420
Power supply (VAC) AC 380 220/50 60
Vacuum pump displacement 20×3 M³/H
Power 10KW
Packing speed (BPM) 4-10 Times／Min
Upper film width 392 mm
lower film width 422mm
Compressed air pressure 0.6mpa
Dimensions (MM) 6100×1200×1900
Net weight (KG) 720

220VAC 0.6mpa Industrial Vacuum Sealing Machine Meat Sealer 4times/Min

220VAC 0.6mpa Industrial Vacuum Sealing Machine Meat Sealer 4times/Min

220VAC 0.6mpa Industrial Vacuum Sealing Machine Meat Sealer 4times/Min
