7.5KW 5400B/H Cup Filling Sealing Machine For Liquid Water Plastic 6 Cups 380V
7.5KW 5400B/H Cup Filling Sealing Machine For Liquid Water Plastic 6 Cups 380V
7.5KW 5400B/H Cup Filling Sealing Machine For Liquid Water Plastic 6 Cups 380V
7.5KW 5400B/H Cup Filling Sealing Machine For Liquid Water Plastic 6 Cups 380V
Specifications
Brand Name :
Fair Machinery
Model Number :
FCF-6A
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union. L/C
Supply Ability :
100 pcs per month
Delivery Time :
10-20 days
Packaging Details :
wooden packaged
Material :
304 or 316 Stainless steel
Automatic Grade :
Automatic
Application :
Beverage, Food
Driven Type :
Pneumatic
Packaging Type :
CANS, Bottles, Stand-up Pouch, Film, Foil, Pouch
Function :
sealing, film cutting
Warranty :
1 year
Core Components :
PLC, Engine, Motor
Voltage :
380V 50Hz,3PH (Customized), 380V 3phase 50HZ/60HZ
After-sales Service :
video technical support, free spare parts, field installation, commmissioning and training, field maintenance and repair service, online support
Description

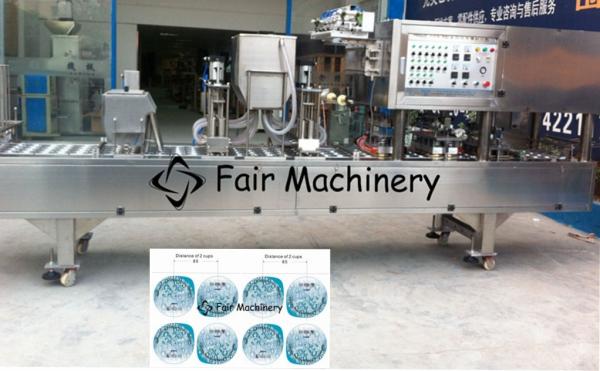

Automatic plastic cup filling and sealing machine for packing liquid water yogurt honey sauce jelly for 6 cups

1.Highly Automate: Auto cup falling, filling, sealing, coding and output; And easy operate, high filling precision;

2.This Machine Is Suitable For The Packaging Of PP, PE,PET, Aluminum Foil And Other Materials, Suitable For The Sealing

3.The Whole Machine Can Be Produced with PLC, Pneumatic Control Component And Intelligent Digital Display Temperature Control System.

4.This kind of machine will be produced according to customer’s requirements; Picture just for reference.

5.This machine is specially designed for cups with rolled film or pre-cut lid products (or other kinds of liquid products, such as fruit juice, water and even granule and powder and others etc. ) to be filled and sealed.

6.This kind of machine can deal with some big cup need high capacity, the groove of the conveyer can be made up to a dozen and more .

Technical parameters:
Model FCF-6A
Power (KW) 9 KW
Heat sealing power 7.5 KW
Capping speed (BPH) 5400 B/Hour
Power supply (VAC) 380V 220V 50/60HZ
Dimensions (MM) 4500x950x1700
Net weight (KG) 950

7.5KW 5400B/H Cup Filling Sealing Machine For Liquid Water Plastic 6 Cups 380V
7.5KW 5400B/H Cup Filling Sealing Machine For Liquid Water Plastic 6 Cups 380V
7.5KW 5400B/H Cup Filling Sealing Machine For Liquid Water Plastic 6 Cups 380V
7.5KW 5400B/H Cup Filling Sealing Machine For Liquid Water Plastic 6 Cups 380V
7.5KW 5400B/H Cup Filling Sealing Machine For Liquid Water Plastic 6 Cups 380V

7.5KW 5400B/H Cup Filling Sealing Machine For Liquid Water Plastic 6 Cups 380V
