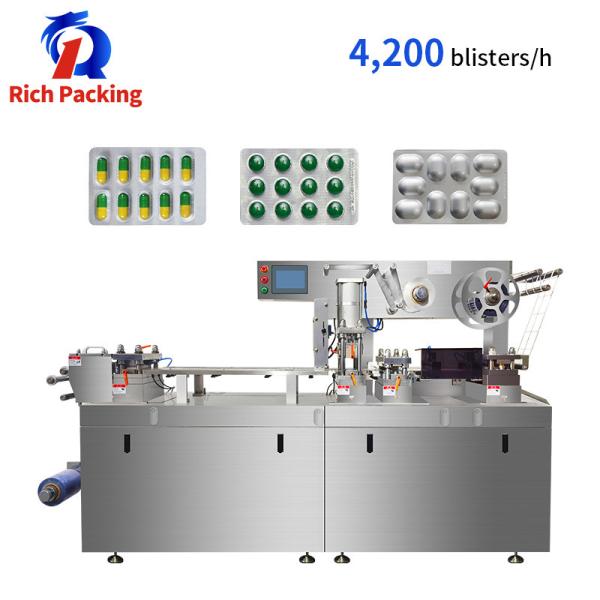

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
Specifications
Brand Name :
Rich Packing
Model Number :
DPP-160Pro
Certification :
CE/ISO 9001/SGS
Place of Origin :
Guangzhou, China
MOQ :
1 pcs
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
30 pcs/month
Delivery Time :
in 14 working days
Packaging Details :
Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Production capacity :
4,200 plates/hour
Number of blanking :
20～180 boards/min
Maximum forming area :
160×250*15mm
Maximum depth :
26mm (can customized)
Standard Travel Range :
40-160mm
Standard plate :
80*57mm
Description

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

DPP-160pro blister pack machinery has widely application, can package tablets, capsules, solid material, jam liquid sauce or others into blister plate or board auto. It adopts the module design way, mold replacing only need 15 minutes, easily for maintenance and for cleaning.

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule

Parameter:

Output capacity 4,200 plates/hour
Max. Shaping Dia. And Depth 250*160*15mm Max. Depth 26mm(custom-made)
Standard Plate 80*57mm
Total Power 5.5kw
Power 380/220V/50/60Hz (customizable)
Net weight of machine 1600 kg
Outline dim.(mm) 3500×740×1680 mm

DPP 160PRO capsule blister packing machine adopts two-stage control, active constant temperature, good temperature average; Full digital touch screen, man-machine interface friendly; Pneumatic cylinder control, easy to operate, convenient; Common air bag equipment and active exhaust equipment, to ensure that the packaging process will not produce air leakage scene;

Adopt cylinder control, fast packaging speed: can pack about 4200 per hour; Easy to operate: no special instructions, even skilled workers can quickly start to operate; Common mold change structure, to ensure that the mold change and loading and unloading quickly completed;

PLC full digital control (standard touch screen control), easy to operate and safe. Stable function: no noise during mechanical operation, good stability and high effectiveness. The first technical parameters are shown in the table below. Equipment operation: Mission temperature -5℃~+40℃. Do not exceed 85% of the additional voltage. Condition humidity 10%~80%, no corrupting gas and air. (such as compressed air), no strong electromagnetic interference, etc.

Tablet Blister Packing Machine High Speed Medical Thermoforming Packaging Capsule
