Hard Gelatin Capsule / Pellet Tablet Powder Capsule Filling Machine
Hard Gelatin Capsule / Pellet Tablet Powder Capsule Filling Machine
Hard Gelatin Capsule / Pellet Tablet Powder Capsule Filling Machine
Hard Gelatin Capsule / Pellet Tablet Powder Capsule Filling Machine
Specifications
Brand Name :
Rich Packing
Model Number :
NJP-200C
Certification :
SGS CE ISO 9001
Place of Origin :
Guangzhou, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
50 pcs/month
Delivery Time :
20-30 working days
Packaging Details :
Standard export wooden case
Product Name :
Automatic Capsule Filling Machine
Filling Material :
Powder/GranulePill
Machine Material :
304/316L Stainless Steel
Total power :
3KW
Overall size of machine :
805×705×1760(mm)
Noise :
<75DB(A)
Description

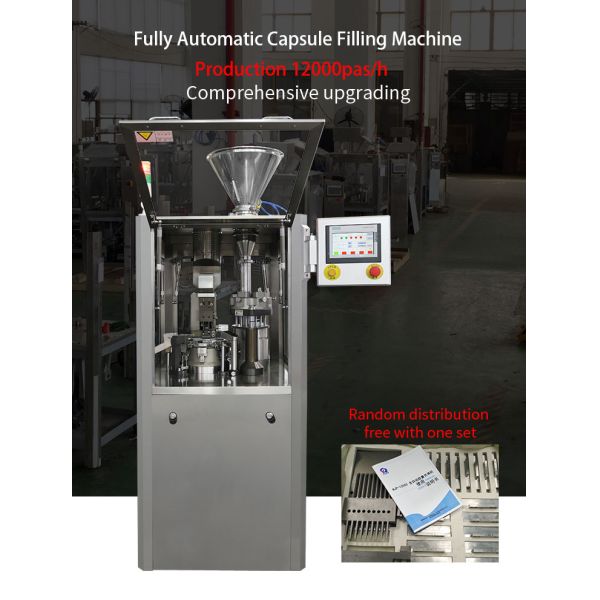

Hard Gelatin Capsule/ Pellet Tablet Powder Capsule Filling Machine

This machine is an upgraded version of semi-automatic capsule filling machine. It is mainly used for filling powdery and granular materials to empty capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#). It can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output. It has the advantages of accurate loading, stable operation and no dust. It meets the GMP requirements, it is an ideal equipment for filling Chinese, Western medicines and health care product .

Hard Gelatin Capsule / Pellet Tablet Powder Capsule Filling Machine

Filling Machine Model 200C 400C 800C 1200C
Capsule size 000,00,0,1,2,3,4,5 # Size Capsule
Power 3Kw 3.5Kw 5Kw 5.5Kw
Production Capacity 12000 Pcs/h 24000 Pcs/h 48000 Pcs/h 72000 Pcs/h
Dimension 805*705*1760mm 805*705*1760mm 865*855*1900mm 900*870*1950mm
Weight 600Kg 600Kg 900Kg 1100Kg

Spare Parts Item Specificatio Qty Manufacturer
Touch Screen 6AV6/648-0BC11-3AX0 1 Germany Siemens
PLC 6ES7/288-1ST20-0AA0 1 Germany Siemens
AC Contactor 3TB42 4 Germany Siemens
Thermal Relay 3UA59 3 Germany Siemens
Main Motor CH-30-1100W 1 Dongli

Hard Gelatin Capsule / Pellet Tablet Powder Capsule Filling MachineHard Gelatin Capsule / Pellet Tablet Powder Capsule Filling Machine

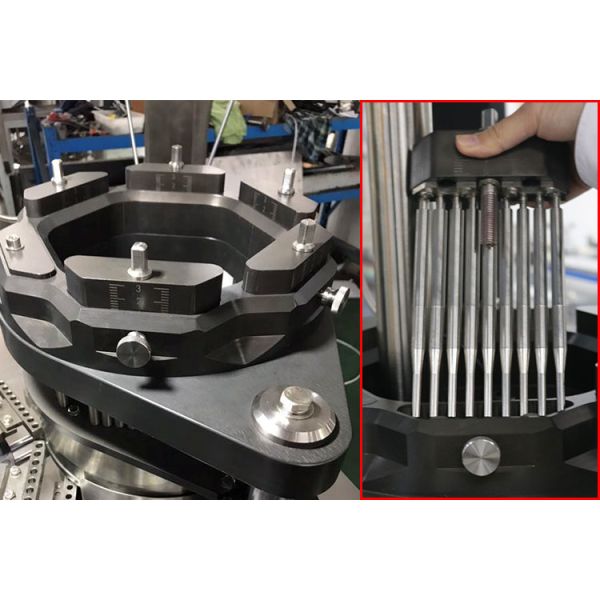

NO1.Metering device(Filling rod pull card slot)

Nut-type adjustment and metering device is convenient, fast and accurate；Filling rod holder adopts a pull-out slot design, which can save 60% of the time when replacing the filling rod

Hard Gelatin Capsule / Pellet Tablet Powder Capsule Filling Machine

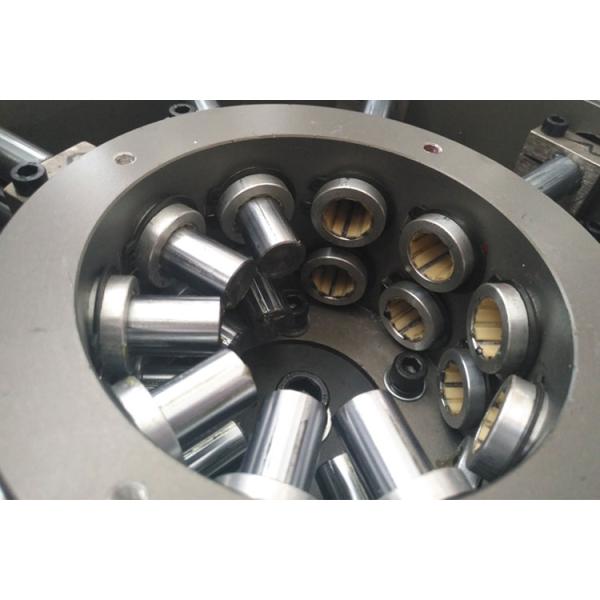

NO2.New design turntable

New design of the turntable has obtained a utility model patent.Transverse biaxial adapt PTFE oil-less bearing, no need refueling.

Patent No:ZL2015 2 1021519.4
