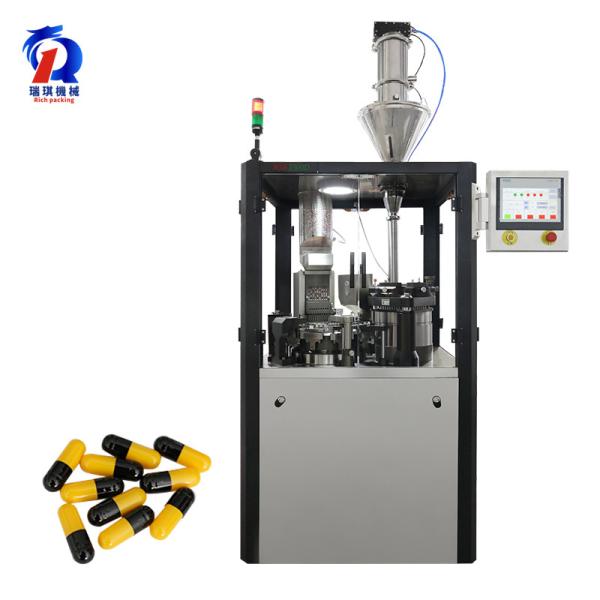

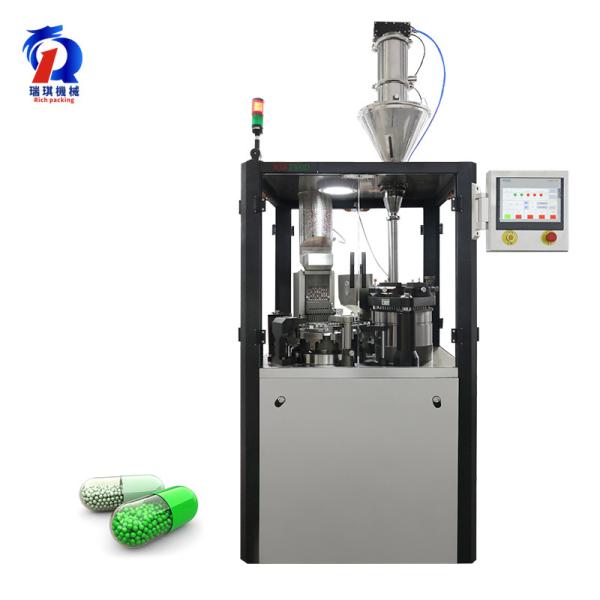

NJP-1500D this model capsule filling machine is the latest D-type innovative product developed by the company. It has 7 major technological innovations and 2 invention patents.,It can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#). It can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output. It has the advantages of accurate loading, stable operation and no dust. It meets the GMP and JB20025-2004requirements,it is an ideal equipment for filling Chinese, Western medicines and health care product .

1, Reasonable design,the working stations adopt design mode with low platform, modular structure, easy operation and lower failure rate.

2, Safety first, all the working stations take full account of the personal safety, such as the door control and emergency stop switch.

3, Segmentation adapt German Cai Si for 3 seconds (Zeiss) optical dividing head indexing, indexing shaft completed a one-time processing, loading and high precision, the error is less than or equal to 3%.
4, Machine maintenance is very easy, just need lubricate the cam one timein the capsule filling machine then the grease can be continuously lubricated, ensuring smooth transmission of the transmission mechanism.and no oil leaking,conform to the GMP requirements

5, Rotary design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow pollution; Transverse biaxial adapt PTFE oil-less bearing, no need refueling; modular structure, equipped with jog operation, convenient maintenance and cleaning, replacement of mold only 15 minutes.

5, NJP-1500D capsule filling machine adopts large high precision cam indexing box, completely changed the past 83DS failure frequency, even the phenomenon of the fracture of the force shaft and the output shaft. It is the only enterprise that adopts 100DS and 100DS indexing box in our country at present. The continuous operation of the equipment has been guaranteed.

6, The inner groove cam of NJP-1500D capsule filling machine is formed by CNC machining center once, no splitting, no splicing, no gap, better stability, no noise in the transmission mechanism in high-speed production of equipment.

7, The filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the metering plate evenly force, the adjustment volume is precise and quick, and the powder recovery device is added, the recycling rate is 100%, which reduces the waste and improves the economic benefit.

8, Capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil. The other seals use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.

9, The capsule filling machine filling rod holder adopts the drawing card slot design, and it is more convenient to replace various types of filling rods.

10, Equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.

11, Precision mold concentricity, zero deviation, ensure that the capsule is not wiping, no damage..

12,The filling rod, the upper and lower die holes, the measuring disk adapt non polar electronic polishing treatment, enhance the material fluidity, which has solved the problems of sticky of material, stick with mold and easy to absorb moisture. (According to the material properties and the special requirements of customers, we can provide the Teflon coating processing service)

13, The separation device has been innovated to separate the powder from the waste capsule and avoid the pollution of the reclaimed powder. (Optional)

14, The control appliance adopts the world famous brand, modularized setup, convenient inspection and maintenance, SIEMENS human machine interface, real-time counting, and can print the equipment according to customer needs, print production date, batch number, code, etc.

15, All the parts of the contact drug are made of stainless steel 316, and the waste device adopts seven lines of aero aluminum.

16, The equipment is high production, low in energy consumption, convenient in cleaning and stable in operation. It is suitable for continuous production of 24 hours.
