Snack Film Coating Machine , Capsule Coating Machine 770*560*950mm Dimension
Snack Film Coating Machine , Capsule Coating Machine 770*560*950mm Dimension
Specifications
Brand Name :
Rich Packing
Model Number :
BYC–300
Certification :
CE ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1 PC
Price :
$800-1200/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 pcs/month
Delivery Time :
20-30 working days
Packaging Details :
Standard export wooden case
Name :
Stainless Steel Snack Film Coating Machine Automatic Spray System
Model :
BYC–300
Throughput :
1～3kg/time
Pot body inclination :
42°
Motor power :
0.37kW
Fan power :
60W
Liquid tank volume :
1L
Spray gun :
RA-C1
Speed :
0～46r/min
Power Supply :
Power Supply
Outline dim. :
770*560*950mm
Weight :
70KG
Description

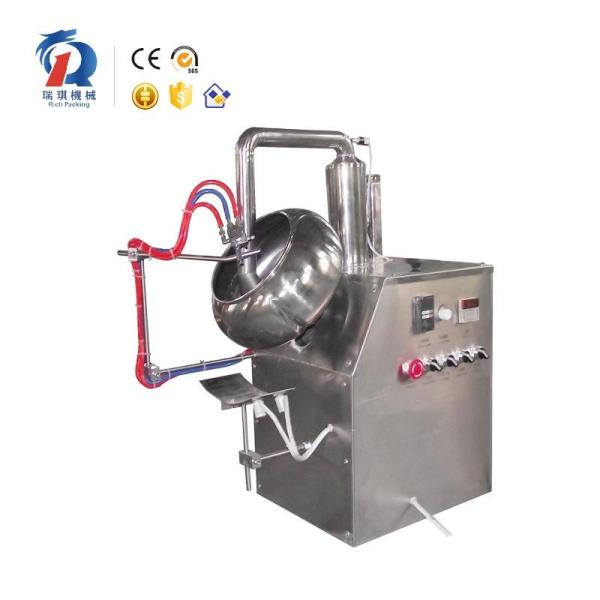

Stainless Steel Snack Film Coating Machine Automatic Spray System

Introduction of coating machine:

This coating machine is used to carry out film coating to the core of Chinese Traditional and Western Medicine tablets; the coating machine integrates strong power, weak power, hydraulic and pneumatic.The speed can be controlled, the coating accessories using high atomization spray to tablets surface by the method of automatic electrical control.

Features of coating machine:

The coating machine is a new type equipment improved on the basis of original common type sugar coating machine.The film coating machinery composed of the mainframe (original sugarcoating machine), controllable normal temperature hot air system, automatic fluid supply and air supply spraying system, etc.The tablets make continuous and complex track movement in the coating pan, let the coating fluid cover the tablet core evenly, the controllable normal-temperature hot air in the pan will dry the tablets at the same time, let the tablet rapidly form a firm, fine, complete and smooth surface film.

Model BYC–300
Throughput 1～3kg/time
Pot body inclination 42°
Motor power 0.37kW
Fan power 60W
Liquid tank volume 1L
Spray gun RA-C1
Speed 0～46r/min
Power Supply 220V/50Hz; 380V/60Hz
Outline dim. 770*560*950mm
Weight 70KG

Snack Film Coating Machine , Capsule Coating Machine 770*560*950mm DimensionSnack Film Coating Machine , Capsule Coating Machine 770*560*950mm Dimension

Snack Film Coating Machine , Capsule Coating Machine 770*560*950mm Dimension
