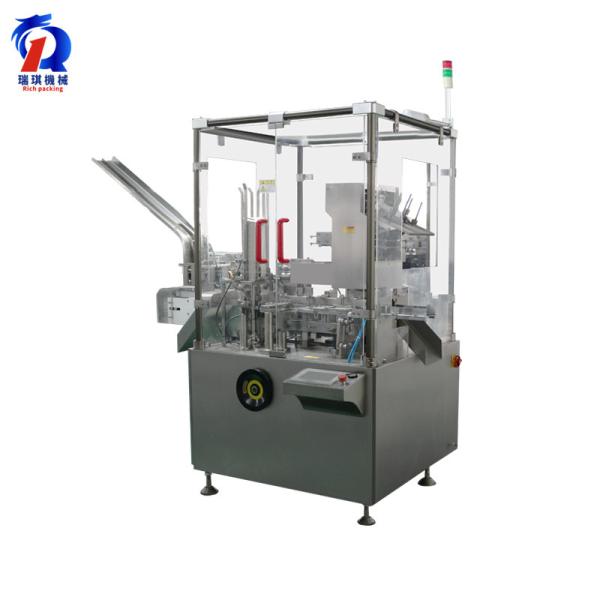

Vertical PLC Automatic Cartoning Machine 2150*1140*1800㎜ Overall Size
Vertical PLC Automatic Cartoning Machine 2150*1140*1800㎜ Overall Size
Specifications
Brand Name :
Rich Packing
Model Number :
RQ-ZHL-120
Certification :
CE ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1 PC
Price :
$27000-32000/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 pcs/month
Delivery Time :
20-30 working days
Packaging Details :
Standard export wooden case
Name :
PLC Auto Cartoning Packing Machine Manufacturer with GMP ISO CE
Speed :
35-125 carton/min
Total power :
1.10 KW
size range of carton :
L(65-150)*W(35-85)*H(12-45)mm
range of folding times of instructions :
1-4 fold
Power supply :
220/380V 50Hz
carton weight :
240-360g/㎡
size range of instructions :
L(78-250)*W(85-170)mm
instructions weight :
60-70g/㎡
pressure intensity :
≥0.6MPa
air consumption :
120-160 L/min
Overall size of machine :
2150*1140*1800㎜
Net weight of machine :
1500kg
Description

PLC Auto Cartoning Packing Machine Manufacturer with GMP ISO CE

Introduction of cartoning machine:

This automatic vertical cartoning machine is the preferred products for small and medium sized production in pharmaceutical manufacturing,chemical industry, electronic products and food industry, it meets the requirements of GMP.The automatic cartoning packing machine manufactured by Guangdong Rich Packing Machinery Co.,Ltd has strong compatibility and can pack products of various specifications on one machine.

Features of cartoning box packing machine:

4.Three detection of the carton box packing machinery were carried out in the packaging process of the products and instructions, and 100% of the unqualified products were rejected.
5.The cartoning box packing machine feeding part of machine adopts double servo motor,speed up to 120 carton/min,compared with single servo motor,it has fast speed and stable operation.

6.The cartoning box packing machine accessories adopt well-known brands, such as Siemens, Baker, Omron, etc
7.The automatic vertical cartoning packing machine produced by Guangdong Rich Packing Machinery Co.,Ltd has stable performance and is suitable for 24 hours operation.

Model RQ-ZHL-12OL
Speed 35-125 carton/min
Total power 1.10 KW
Power supply 220/380V 50Hz
Requirements of carton size range of carton:L(65-150)*W(35-85)*H(12-45)mm
carton weight:240-360g/㎡
Requirements of instructions size range of instructions:L(78-250)*W(85-170)mm
range of folding times of instructions:1-4 fold
instructions weight:60-70g/㎡
Pressure pressure intensity:≥0.6MPa
air consumption:120-160 L/min
Overall size of machine 2150*1140*1800㎜
Net weight of machine about 1500kg

Vertical PLC Automatic Cartoning Machine 2150*1140*1800㎜ Overall Size

Vertical PLC Automatic Cartoning Machine 2150*1140*1800㎜ Overall Size

High intelligence,accurate loading monitoring.Detection points are densely distributed in various workplaces, such as feeding, quantity detection , packaging into conveyor belt, number of packages, carton in place and so on. The whole process of inspection and result detection is monitored through the process.
