380V 50Hz Automatic Liquid Capsule Filling Machine , Pill Filling Equipment
380V 50Hz Automatic Liquid Capsule Filling Machine , Pill Filling Equipment
Specifications
Brand Name :
Rich Packing
Model Number :
NJY-300
Certification :
CE ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1 PC
Price :
$36000-41000/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 pcs/month
Delivery Time :
20-30 working days
Packaging Details :
Standard export wooden case
Name :
China Factory Good Quality Automatic Liquid Capsule Filling Machine
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support
Production capacity :
300pcs/min
Net weight of machine :
860*960*1800mm
Power :
380V 220V 50Hz
Total power :
5KW
No.of segment bores :
6
Noise :
<75DB(A)
Making rate :
Empty capsule 99.9% Full capsule 99.8%
Filling error :
≤2%
Applicable product :
00-3# gelatin capsule, methyl cellulose, plant capsule
Description

China Factory Good Quality Automatic Liquid Capsule Filling Machine

Introduction of liquid capsule filling machine

The liquid capsule filling machine is a new capsule filling machine specially designed for filling liquid, which fills the gap of liquid filling and sealing technology for hard capsules in China. This series of honey water liquid capsule filling machine, with accurate loading and good sealing, improves the safety of the products in the process of storage, transportation and clinical application of products. This liquid capsule filler machinery has wide applicability.

Features of liquid honey capsule filling machine

1.This series liquid capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.

2.This pharmaceutical honey capsule filling machine has safety firs, all the working stations take full account of the personal safety, such as the door control and emergency stop switch.

3. Equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.

4. The liquid capsule filler machinery is precision mold concentricity, zero deviation, ensure that the capsule is not wiping, no damage.

5. All the parts of the contact drug of pharmacy equipment are made of stainless steel 316, and the waste device adopts seven lines of aero aluminum.

Production capacity 300pcs/min
Net weight of machine 750KG

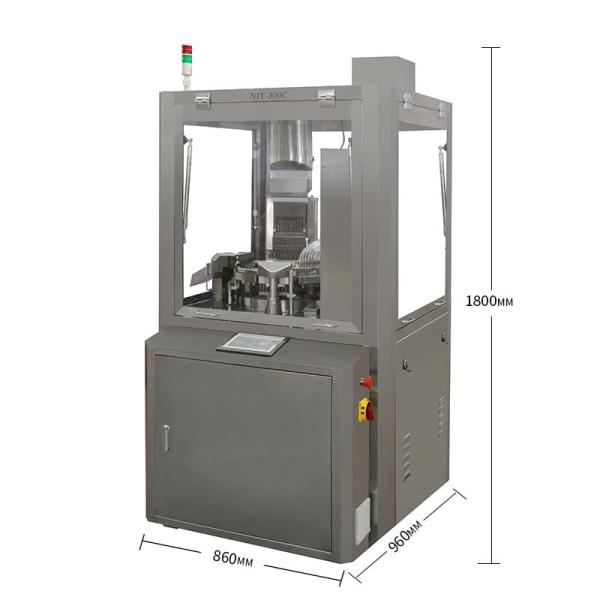

Overall size of machine 860*960*1800mm
Power 380V 50Hz
Total power 5KW
No.of segment bores 6
Noise <75DB(A)
Making rate Empty capsule 99.9% Full capsule 99.8%
Filling error ≤2%
Applicable product 00-3# gelatin capsule, methyl cellulose, plant capsule

380V 50Hz Automatic Liquid Capsule Filling Machine , Pill Filling Equipment

380V 50Hz Automatic Liquid Capsule Filling Machine , Pill Filling Equipment

Automatic controlcapsule sowing
