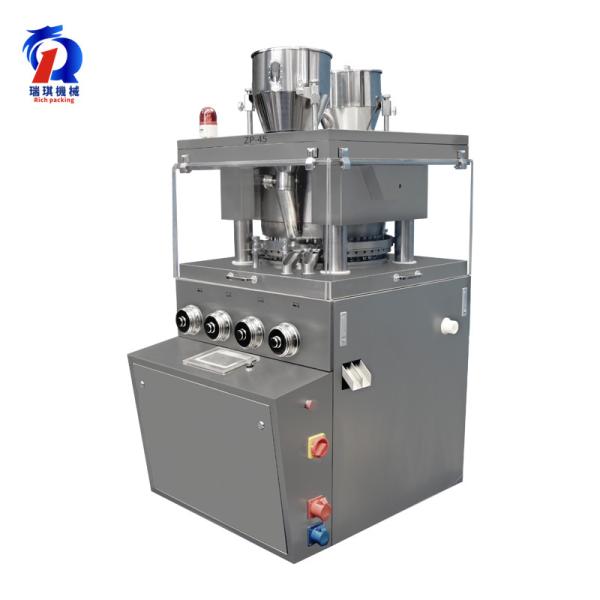

CE Approval Salt Press Machine , Rotary Press Machine 100KN Max Pressure
CE Approval Salt Press Machine , Rotary Press Machine 100KN Max Pressure
Specifications
Brand Name :
Rich Packing
Model Number :
ZP-45
Certification :
CE ISO SGS
Place of Origin :
Guangzhou, China
MOQ :
1 PC
Price :
$29000-33000/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 pcs/month
Delivery Time :
20-30 working days
Packaging Details :
Standard export wooden case
Name :
Price For Small Mini Rotary Tablet Pill Candy Salt Press Machine
Dies No. :
45set
Max. Production Capacity :
20000 pcs/h
Max. Pressure :
100KN
Max. Dia. of Tablet :
Round shape：13mm；irregular shape :16mm
Max. Thickness of Tablet :
8mm
Dia. Of Middle Die :
Ф26mm
Dia.of Upper/Lower Punching Bar :
Ф22mm
Max. Depth of Filling :
17mm
Rotary Speed :
5～36 r/min
Length of Upper/Lower Punching Bar :
115mm
Motor :
5.5kw
Weight of Machine :
1800kg
Outline Dim. :
1100×940×1755mm
Packing Size :
1520×1100×2130 mm
Packing size of Dust Collector :
960×620×1460 mm
Description

Price For Small Mini Rotary Tablet Pill Candy Salt Press Machine

Introduction of tablet press machine

IPT die, the maximum pressure is 80 kN, maximum press diameter 25mm, maximum capacity 40000/ hours, maximum press thickness 8mm. The tablet compress machine is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in production, the pharmacy pill press machine is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.

Features of automatic pharmacy tablet press machine:

1.The whole shell is made of stainless steel, and the chamber is separated from the outside environment by the organic glass, with good sealing. All the contacting parts of the tablet press meet the requirements of "no poison, no odor and corrosion prevention".

2.Abide by the GMP idea, the teblet press machine is structured and modularized.

3.High pressure, this pharmaceutical tablet press machine adapts "Down pressure guide", the pressure is big, can suppress the hard material.
4.The tablet press machine equips high equipment configuration. The core components are all famous brand products such as German SIEMENS and Japanese OMRON, with long service life and low failure rate.

Dies No. 45 set
Max. Production Capacity 200000 pcs/h
Max. Pressure 100KN
Max. Dia. of Tablet Round shape:13mm；irregular shape :16mm
Max. Depth of Filling 17mm
Max. Thickness of Tablet 8mm
Dia. Of Middle Die Ф26mm
Height of Middle Die Ф22mm
Length of Upper/Lower Punching Bar 115mm
Dia.of Upper/Lower Punching Bar Ф22mm
Rotary Speed 5～36 r/min
Motor 5.5kw
Weight of Machine 1800kg
Outline Dim. 1100×940×1755mm
Packing Size 1520×1100×2130 mm
Packing size of Dust Collector 960×620×1460 mm
