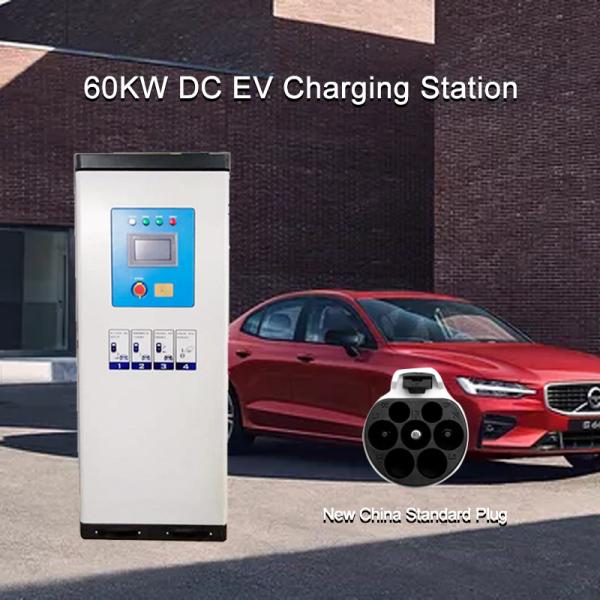

60KW Outdoor DC EV Fast Charger Ethernet/Wifi/4G Touch Screen 7m Cable GB/T
60KW Outdoor DC EV Fast Charger Ethernet/Wifi/4G Touch Screen 7m Cable GB/T
60KW Outdoor DC EV Fast Charger Ethernet/Wifi/4G Touch Screen 7m Cable GB/T
60KW Outdoor DC EV Fast Charger Ethernet/Wifi/4G Touch Screen 7m Cable GB/T
Specifications
Brand Name :
Xidao
Model Number :
XD-DC1000-60KW
Certification :
GB/T
Place of Origin :
sichuan
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000 per month
Delivery Time :
15-30 work days
Packaging Details :
Wooden case packaging
Product name :
60KW Commercial EV DC Charger GB/T
AC Input Voltage Range(V) :
380±15%,3 phases+N+PE
Output Voltage and Current :
200-1000V; 0~200A(single gun)
Output Power :
Double gun 60KW, single gun 30KW
Communication Interface :
Ethernet/Wifi/4G
Efficiency :
≥96%(full load)
Protection Grade/Shell Material :
IP54/ sheet metal shell
Display Mode :
7" Color Touch Screen
Description

GB/T 60KW DC EV Charging Station LCD Ethernet/Wifi/4G With Payments

Product Features

1. High degree of intelligence:

Intelligent temperature control, autonomous current sharing, full matrix power intelligent distribution, constant power

The core technology of intelligent control such as charging can realize any module to any charging pile.

2. High reliability:

Using redundant design, all-round detection, active protection and other safety protection measures, the average

Over 30,000 hours of trouble-free time

3. Software and hardware integration:

Provide charging operation management system and APP system, support Chinese, English,

Japanese, etc. Other languages can be customized

Product Parameters

Technical Parameters
Product Type Integrated DC Charger
Product Model XD-DC1000-60KW
Display Mode 7" Color Touch Screen
AC Input Voltage Range(V) 380±15%,3 phases+N+PE
AC Input Frequency(Hz) 45~66Hz
Power Factor ≥0.99
Current Harmonics(THDI) ≤5%
Efficiency ≥96%(full load)
DC Output Voltage Range(V) 200-1000VDC

Output Voltage Range under

Constant Power(V)

 300-1000VDC
DC Output Current(A) 0~200A(single gun)
Output Power(KW) Double gun 60KW, single gun 30KW
Length of Charging Gun(m) 5
Noise(dB) <65
Charging Operation Swiping card
Running Indication Power supply,charging,fault
Heat Dissipation Control Air Cooling Refrigeration
BMS Auxiliary Power Supply(V) 12/24
Power Distribution Equipartition/Intelligent Distribution/Switching
Altitude(m) ≤2000
Working Temperature(C) -20~50
Storage Temperature(℃) -40~70
Average Relative Humidity 5%~95%
Protective Function

Lightning protection, over-load,short-circuit

over-temperature, electric leakage, emergency stop

protection etc.
Charging Selection

Automatic, timing, quantitation, fixed fee, appointment

etc.
Communication Interface

CAN with standard configuration, Ethernet, RS485,

RS232,GPRS
Standard Chinese Standard,GB/T
Protection Grade/Shell Material Outdoor IP54/ sheet metal shell
Product Introduction 1. Friendly visual interface with multiple information displays, prompt messages, IC card information, etc. 2. Electricity collection system and charge accounting system provide records of earning and consumption. 3. When the electric vehicle is charging, if the battery is full, the machine will stop automatically and remindthe user through the indicator light. 4. In case of over-voltage, under-voltage, short-circuit, leakage and connection failure, the machine will stopcharging and alarm by indicator light. 5. Industrial design, strong temperature adaptability, long service life and IP54 protection level. 6. The production mode of the whole industrial chain ofcharging pile ensures the reliability of the hardware. 7. Self-developed charging software can be usedthrough OCPP.
Dimension(H*W*D)(mm) 1870*800*542

Details Images

60KW Outdoor DC EV Fast Charger Ethernet/Wifi/4G Touch Screen 7m Cable GB/T

60KW Outdoor DC EV Fast Charger Ethernet/Wifi/4G Touch Screen 7m Cable GB/T

60KW Outdoor DC EV Fast Charger Ethernet/Wifi/4G Touch Screen 7m Cable GB/T60KW Outdoor DC EV Fast Charger Ethernet/Wifi/4G Touch Screen 7m Cable GB/T

FAQ

Q: How long is your delivery time?

For charging posts, it is usually 3-10 days. If there is no stock, the production lead time is determined according to the order quantity. High-power DC char- ging posts usually need to be customized according to the customer's technical parameters.

Q: How long does it take to customize the prototype?

For charging piles, the prototype time is usually 7 days.
For DC charging post, the prototype time is usually 15 days.
For high power fast charging station, the technical parameters need to be
determined before production, and the prototype time is usually 30 days.

Q: How to guarantee the service?

Our products are divided into two categories: household and commercial.
For home chargers, we provide standardized service: 1 year warranty + remote installation and usage guidance + video installation tutorial
For commercial chargers, we not only provide standardized services for charging piles, but also provide payment software docking services for opera
ting companies.

Q: How do you guarantee the quality of your products?

The charging post products we sell have passed GB certification in China and CE certification in EU. For some other countries, the relevant certifications are
in progress.

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
