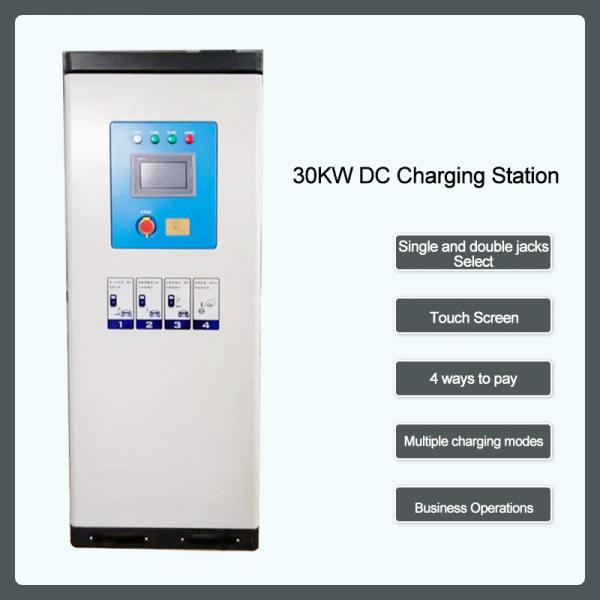

30KW DC EV Fast Charging Stations OCPP1.6 Ethernet IP54 Double Guns Chademo
30KW DC EV Fast Charging Stations OCPP1.6 Ethernet IP54 Double Guns Chademo
30KW DC EV Fast Charging Stations OCPP1.6 Ethernet IP54 Double Guns Chademo
30KW DC EV Fast Charging Stations OCPP1.6 Ethernet IP54 Double Guns Chademo
Specifications
Brand Name :
Xidao
Model Number :
XD-DC1000-30KW
Place of Origin :
sichuan
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000 per month
Delivery Time :
15-30 work days
Packaging Details :
Wooden case packaging
Product name :
30KW Commercial EV DC Charger Chademo
AC Input Voltage Range (V) :
380±15%, 3 phases +N+PE
Output Voltage :
200~1000V
Rated Output :
30KW
Communication Interface :
Ethernet, RS485, RS232, GPRS,WIFI
Protection Grade :
IP54
Display Mode :
4.3" Color Touch Screen
Description

Chademo 30KW Outdoor Commercial DC EV Charging Station IP54 OCPP1.6

Features

1.connection protection, shutdown protection and human-machine interface operation authority protection.
2. Reduce energy loss, in line with energy saving and emis- sion reduction requirements, saving electricity costs for customers
3. A variety cf control modes to facilitate maintenance and related experiments, a variety of cherging modes to meet the different needs of customers
4.Low input harmonics - reduce pollution to the grid, higher grid adaptability Wide input voltage, wide output voltage range - suitable
for most different input and output voltage situations.
5. Wide operating temperature range-/de operating tempe- rature range to meet most harsh working environments Hol-swappable-suitable for easy use and reduced mainte- nance costs
6. Real-time display of communication, charging operation and battery status through HMI
7. Flexible billing function Multiple billing methods and time-of-day billing to meet customers' diversfied charging needs

Product Parameters

Product name EV Fast Charger
Input voltage AC 380V ±10%
AC power input connection 3P+N+PE
Operating Frequency 50hz
Power Factor >0.99
Output rated power 30A
Output Current 0-30
Current limit adjustable range 10%~100%
Current error ≤1%
Current accuracy ≤±1%
Module Unbalance ≤5%
Ripple coefficient ≤±5%
Charge gun cable length 2 guns/guns 7m cable
Auxiliary power supply 12V/24V
Display method Touch screen
Protection level IP54
Cooling method Forced air cooling
mounting method Floor mounting
Reference size 800*1050*2000

Main features

1. High efficiency

2. High power density

3. Input high voltage shock resistance

4. Modular design

5. One machine with four charging functions

Company Profile

Besides providing our EV chargers to our customers, Xiangdao Technology also provides application development services, if you are interested in developing a unique charging app for your own charging pile, do not hesitate to send us a message to request detailed information and start turning your ideas into reality

Since 2004, our company has been dedicated to developing applications to provide the best service to various customers, our 20 years of experience in application development allows us to be one of the best and most experienced companies in China.

Our quality software product has been used by many clients in retail, distribution, and VIP account management.

Chengdu Xiangdao Technology Co., Ltd. is a company specializing in the overall solution of development, design sales, and operation of new energy, including EV charging piles, fast charging stations, solar photovoltaic power generation systems, solar application products, etc. We are committed to providing total solutions for the application of new energy technologies.

In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.

30KW DC EV Fast Charging Stations OCPP1.6 Ethernet IP54 Double Guns Chademo

Details Images

30KW DC EV Fast Charging Stations OCPP1.6 Ethernet IP54 Double Guns Chademo

30KW DC EV Fast Charging Stations OCPP1.6 Ethernet IP54 Double Guns Chademo

NOTE:

1- OEM supported.

2- Any requirement please contact us to talk about the details.

3- We will reply you for your inquiry in 24 hours.

4- If you have any questions about the charger, please contact us.

5- The above for reference only, final price decide by the charger KW, please contact us to get the correct quote.
