RFID 500mAh Truck GPS Tracking Device UMTS Suport 2g 3g Network
RFID 500mAh Truck GPS Tracking Device UMTS Suport 2g 3g Network
Specifications
Brand Name :
iStartek
Model Number :
4G VT900 L
Certification :
CE FCC ROHS NBTC
Place of Origin :
Guangdong, China
MOQ :
2 Pieces
Price :
$1.00-$42.00/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
900000PCS/Month
Delivery Time :
1-7 days
Packaging Details :
VT900 L 4G GPS tracker will be packed by gift box, the size is 133*103*72mm, 350g per gift box.
Type :
fuel GPS tracking device suport 2g3g network
Function :
RFID/Magnetic Card Reader
Warranty :
36 Months
Use :
Automotive
Product Name :
manual 3g 4g obd 2 gps vehicle tracker gps 105bi with camera
Sensor :
Motion Sensor
I/O :
1RS232+1AD+3IN+2OUTPUT
Weight :
90g
Size :
65mm x 61mm x 26mm
Backup Battery :
500mAh
Operating temperature :
-20° to 65° C
GSM Module :
Quectel UC15
GSM Band :
GSM/UMTS
Certificate :
ISO9001:2008, CE, CCC, FCC, NBTC, DLT, AIS 140, LTFRB
Selling Units :
Single item
Single package size :
13.3X10.3X7.2 cm
Single gross weight :
0.450 kg
Package Type :
tk510i 103a tk102i rpm roaming manual 3g 4g obd 2 gps vehicle tracker gps 105bi with camera VT900 3G Dimension:65 x 61 x 26mm VT900 3G Net Weight:105g Box Size:133x103x72mm Gross Weight:350g per box
Description

4g lte module truck fuel GPS tracking device suport 2g3g network

VT900-L Main Features:

1. Real-time uploads location information via time/distance interval
2. Image transmit (take photos by digital camera)
3. Real-time Positioning & Tracking by SMS or internet
4. SOS Function & Power-cut Alert
5. Audio Monitoring
6. Geo-fence & Over Speed Alert
7. Fuel level Monitoring
8. Remote controlling oil & circuit by SMS or internet
9. ACC/Door/Trunk/bonnet/shock Alert
10. Special Vehicle Monitoring (dump trucks pouring, mixers rotating, etc.)
11. Built-in backup battery, low battery alert, unauthorized dismantle alert
12. GPS & A-GPS (LBS-location based service)
13. Fuel sensors, Temperature sensor, Flash memory (optional)
14.Support google map
15.Show location directly on mobile phone with HTTP google map link
16.Absolute street address request by SMS.

Specifications

LTE/GSM Specifications

Frequency

VT900-LMN: Cat-M/NB/GSM(4G)

LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25*/B26*/B28

LTE-TDD: B39 (for Cat M only)

EGPRS: 850/900/1800/1900MHz

VT900-LEC (EU):Cat-1 (4G)

LTE-FDD: B1/B3/B7/B8/B20/B28

WCDMA: B1/B8

GSM: B3/B8

VT900-LNS (US):Cat-1 (4G)

LTE-FDD: B2/B4/B5/B12/B13/B25/B26

WCDMA: B2/B4/B5

4G LTE Module

QUECTEL EG91(LEC,LNS) , BG96(LMN)

Data Transmission

BG96(LMN)

Cat M1: Max.375Kbps (DL)/Max.375Kbps (UL)

Cat NB1: Max.32Kbps (DL)/Max.70Kbps (UL)

EDGE: Max.296Kbps (DL)/Max.236.8Kbps (UL)

GPRS: Max.107Kbps (DL)/Max.85Kbps (UL)

EG91(LEC,LNS)

LTE FDD: Max.10Mbps (DL)/Max.5Mbps (UL)

WCDMA: Max.384Kbps (DL)/Max.384Kbps (UL)

GPRS: Max.107Kbps (DL)/Max.85Kbps (UL)

GSM Data Transmission

Multi-slot class 12

GNSS Specifications

GPS Type

MTK MT3337

Sensitivity

Acquisition -148dBm

Tracking -165dBm

Reacquisition -160dBm

Position Accuracy

Autonomous: < 2.5m CEP

Velocity Accuracy

Without Aid: <0.1m/s

Channel

22 (Tracking)/ 66 (Acquisition)

TTFF (Open Sky)

Cold Start: <15s

Warm Start: <5s

Hot Start: <1s

Reacquisition Time

<1s

Packing & Accessories

1 x GPS Tracker 103A

1 x GPS Antenna

1 x GSM Antenna

1 x Microphone

1 x Harness 10PIN

1 x Relay

1 x User manual

Optional accessories:

>Relay
>USB Cable
>Microphone
>iButton
>Pin Switch
>RFID/Magnetic Card
Reader
>Temperature Sensor
>Ultrasonic Fuel Sensor
>Resistance Fuel Sensor
>Capacitive Fuel Sensor
>OBD(CANbus) Connector

Standard Accessories

VT900 L 4G GPS Tracker

GSM Antenna

GPS Antenna

Power Cable

Applying directions:
Vehicle fleet/logistics/Vehicle rental

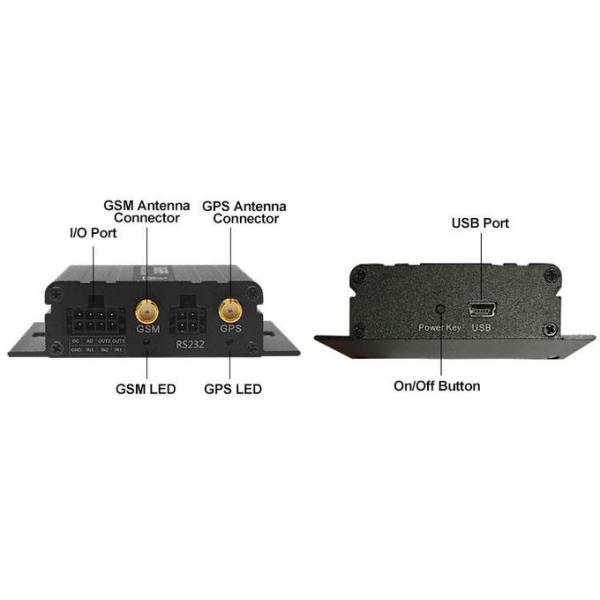

Product Appearance

RFID 500mAh Truck GPS Tracking Device UMTS Suport 2g 3g Network
