Fuel Monitoring Telematics RFID Reader Car GPS Tracker / Car Location Tracker
Fuel Monitoring Telematics RFID Reader Car GPS Tracker / Car Location Tracker
Fuel Monitoring Telematics RFID Reader Car GPS Tracker / Car Location Tracker
Fuel Monitoring Telematics RFID Reader Car GPS Tracker / Car Location Tracker
Specifications
Place of Origin :
Guangdong, China
Brand Name :
iStartek
Model Number :
3G VT900 G
Supply Ability :
900000 Piece/Pieces per Month
Packaging Details :
VT900 car gps tracker will be packed by gift box, the size is 133*103*72mm, 350g per gift box.
MOQ :
2 Pieces
Price :
$1.00-$42.00/PC
Certification :
CE FCC ROHS NBTC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Delivery Time :
1-7 days
Product Name :
RFID vehicle gps car locator
Sensor :
Motion Sensor
I/O :
1RS232+1AD+3IN+2OUTPUT
Weight :
90g
Size :
65mm x 61mm x 26mm
Backup Battery :
500mAh
Operating temperature :
-20° to 65° C
GSM Module :
LYNQ L306
Description

Custom logo fuel monitoring telematics GPS tracking device 800/1900 Mhz with camera

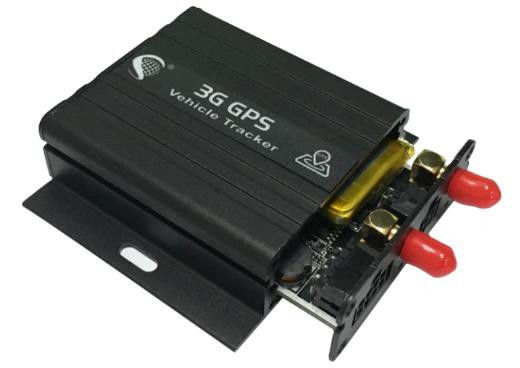

VT900-G car GPS tracker Description:
GPS vehicle tracking VT900 is a GPS/WCDMA based tracking device, specially developed and designed for vehicle real-time tracking and fleet management. VT900 has an inbuilt GPS module to obtain accurate position data. This device utilizes its GSM/WCDMA capability to send position data to a specified mobile phone or server base for tracking and fleet management. With internal memory, VT900 can store GPS coordinates when there is no GPRS/WCDMA connection, or at a specified interval requested by the user. One optional feature of VT900 is that an RS232 port Can connect an RFID card reader, magnetic card reader, and other external equipment.

Interfaces

Digital Inputs

2 positive trigger inputs

1 negative trigger input
Digital Outputs 2 digital output, open drain, 500 mA max drive current
Analog Inputs 1 analog input (0V-24V)
1-Wire Interface Support 1-wire temperature sensor
Power Output 5V outputs for external accessories
Communication Ports 1 RS232 port for external accessories, such as RFID Reader, Magnetic Card Reader, etc.
Cellular Antenna external antenna
GNSS Antenna external antenna
LED Indicators CEL, GNSS
Mini USB Interface 1 USB port for data configuration

Standard Accessories

VT900 car GPS Tracker GSM Antenna GPS Antenna Power Cable

Application:

1. Fleet Management

2. Vehicle Tracking

3. Bus

Interface:

Fuel Monitoring Telematics RFID Reader Car GPS Tracker / Car Location Tracker

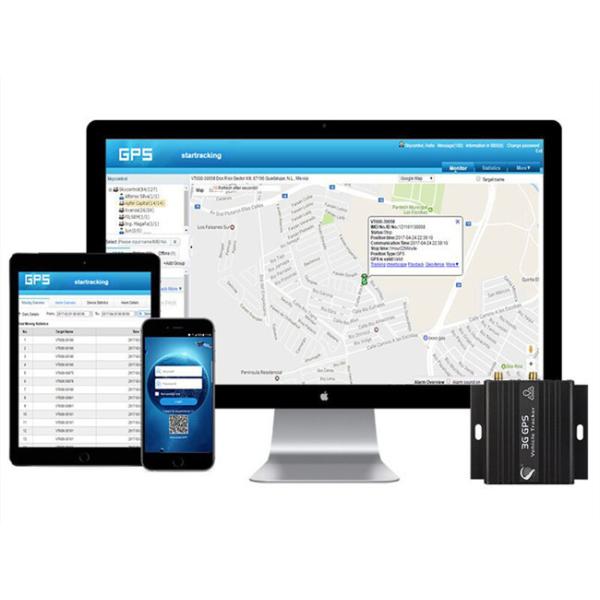

Free GPS Tracking System

We provide a free GPS Tracking System for one year, simple and easy for management and tracking!

  • Web-based tracking system
  • Android APP
  • IOS APP
Features Descriptions
Time Zone & Local Language More than 10 languages and timezone settings
Multiple Account Support Allow you to set up an account for company user to manage many vehicles
Group Management User can manage the vehicle by setup different groups
Reporting and Export Overview report, Speeding report, Mileage Report, Stop Report
SMS and Email Notification Get alert by SMS or Email
Real-Time Tracking Track the vehicle by real-time
Location History Replay the location history
SOS Alarm SOS Alert
Communication Failure Monitoring Monitor the vehicle when it is not reporting
Over Speed Monitoring Monitor the vehicle when it is over speed
Online Vehicle Engine Control Turn on or turn off the engine
Geo-fence Notification Set up a zone to monitor the vehicle to enter or exit this zone.
Landmark Mark the new point in the map by yourself

Fuel Monitoring Telematics RFID Reader Car GPS Tracker / Car Location Tracker

Product use
1 Charge
For the first time using the VT900 G, please connect the DC (positive) and GND (ground) to the 12V or 24V power supply
for at least 2 hours to ensure sufficient power. After configuration and testing, install it on the vehicle.
2 Insert SIM Card
The device supports SIM cards of 2G and 3G networks;
Please ensure that the SIM card has sufficient balance, and has opened the GPRS function and obtained the correct APN
of the SIM card;
Please make sure that the PIN lock function of the SIM card has been turned off;
If you need to use the call to reply to the location information function, please make sure that the SIM card has caller ID
function;

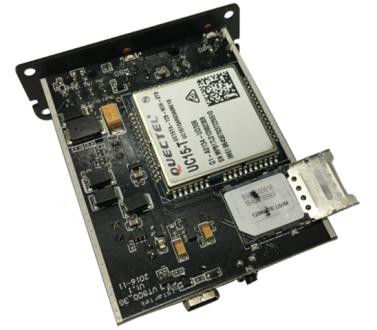

a. Make sure the device is turned off before installing the SIM. Unscrew the front baffle screw and take out the PCBA

Fuel Monitoring Telematics RFID Reader Car GPS Tracker / Car Location Tracker
b. Insert SIM Card

Fuel Monitoring Telematics RFID Reader Car GPS Tracker / Car Location TrackerFuel Monitoring Telematics RFID Reader Car GPS Tracker / Car Location Tracker

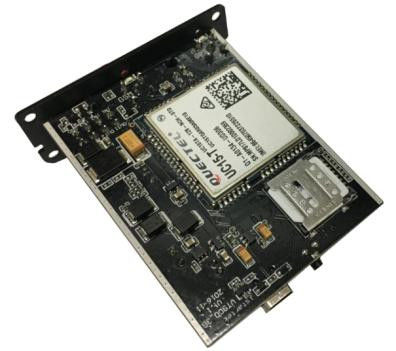

c. Fit on PCBA and screw on the screw
