1 ,Support bothGPS / GSM station positioning ways.
2 ,Support SMS/GPRS/Internet Network data transfer
3 ,Support GPRS on-line and the line re-connected automatically.
4 ,Support work based on existing GSM/GPRS network..
5 ,Support configuration by remote terminal.
6 ,SOS alarm.
7 ,Support for point-to-point, point to group,group-to-group monitoring.
8 ,Set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety.
9 ,Remote control can be deployed in and disarm.
10,Remote control vehicle oil and circuit.
11,Connect the original vehicle anti-theft or a vibration sensor, and keyless entry alarm.

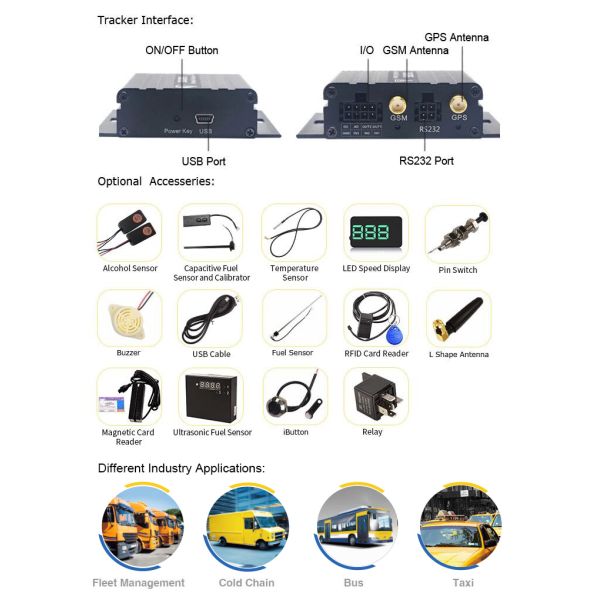

Interface, Optional Accessories, and Application |
Specification |
General Features
Power Supply | 9V-36V/1.5A |
Dimension | 65 x 61 x 26mm |
Weight | 90g |
Backup Battery | 500mAh |
Normal Power Consumption | 55mA/h |
Work Time | 38 hours in power saving mode and 9hours is normal mode |
Operation Temperature | -20° to 55° C |
Humidity | 5% to 95% Non-condensing |
Memory | 8MB flash memory |
Sensor | Motion sensor |
WCDMA/GSM Specifications
Frequency | VT900 3G-T 850/2100MHz @UMTS, 850/900/1800/1900MHz @GSM
VT900 3G-A 850/1900MHz @UMTS, 850/900/1800/1900MHz @GSM
VT900 3G-E 900/2100MHz @UMTS, 900/1800MHz @GSM |
WCDMA Module | QUECTEL UC15 |
Data Transmission | HDSPA : Max.3.6Mbps UMTS: Max.384Kbps (DL)/Max.384Kbps (UL) GPRS: Max.85.6Kbps (DL)/Max.85.6Kbps (UL) |
GSM Data Transmission | Multi-slot class 12 |
GNSS Specifications
GPS Type | MTK MT3337 |
Sensitivity | Acquisition -148dBm Tracking -165dBm Reacquisition -160dBm |
Position Accuracy | Autonomous: < 2.5m CEP |
Velocity Accuracy | Without Aid: <0.1m/s |
Channel | 22 (Tracking)/ 66 (Acquisition) |
TTFF (Open Sky) | Cold Start: <15s Warm Start: <5s Hot Start: <1s |
Reacquisition Time | <1s
|
Standard Accessories |
VT900 Tracker | GSM Antenna | GPS Antenna | Power Cable |
Free GPS Tracking System |
We provide free GPS Tracking System for one year, simple and easy for management and tracking!
Features | Descriptions |
Time Zone & Local Language | More than 10 languages and timezone settings |
Multiple Account Support | Allow you to set up an account for company user to management many vehicles |
Group Management | The user can manage the vehicle by setup difference groups |
Reporting and Export | The overview report, Speeding report, Mileage report, Stop Report |
Real-Time Tracking | Track the vehicle by real-time |
Location History | Replay the location history |
SOS Alarm | SOS Alert |
Communication Failure Monitoring | Monitor the vehicle when it is not reporting |
Over Speed Monitoring | Monitor the vehicle when it is over a speed |
Online Vehicle Engine Control | Turn on or turn off the engine |
Geo-fence Notification | Set up a zone to monitor the vehicle to enter or exit this zone. |
Landmark | Mark the new point in the map by yourself |
OEM & ODM Case Study |
Case 1: customized vehicle tracker to meet Chile bus group's request and installed more than 2000pcs already.
Case 2: As per Indian's Telecom Provider's request, we customized portable tracker to track GSM station's Backup batteries, for an anti-theft purpose.
Case 3: Customized VT900 3G GPS Tracker as per Thailand DLT request, connecting with Magnetic Card Reader to collect driver's ID card data, controlling car engine by card swiping.
Package and Delivery |
Package:
1. VT900 Size: 65*61*26mm
2. VT900 Weight: 105g
3. VT900 will be packed by gift box, the size is 133*103*72mm, 350g per gift box.
Delivery:
1. Sample and mini order will be delivered within 24hours after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 1-2workdays after the receipt of payment.
FAQ |
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T ,Western union ,Alipay Or Paypal(Samples) . We'll show you the photos of the products and packages .
Q3. What is your terms of delivery?
A: EXW, FOB.
Q4. How about your delivery time?
A: Generally, it will take 1-3 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples . we can't provide free samples
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
