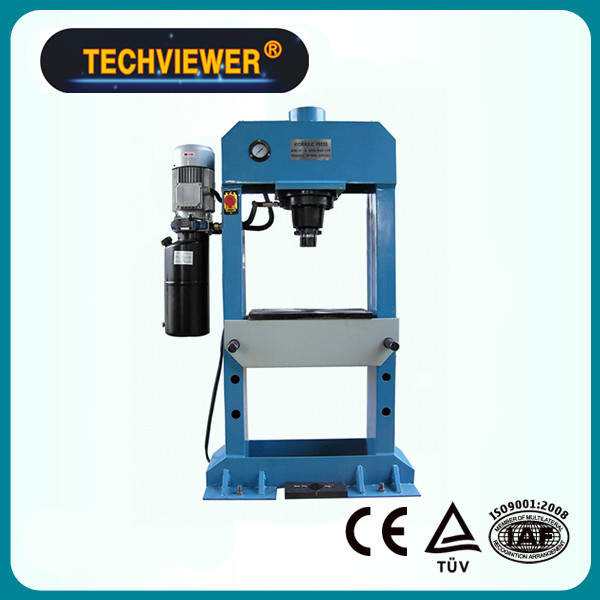

25Mpa Double Column Hydraulic Press Machine
25Mpa Double Column Hydraulic Press Machine
25Mpa Double Column Hydraulic Press Machine
25Mpa Double Column Hydraulic Press Machine
25Mpa Double Column Hydraulic Press Machine
25Mpa Double Column Hydraulic Press Machine
25Mpa Double Column Hydraulic Press Machine
25Mpa Double Column Hydraulic Press Machine
25Mpa Double Column Hydraulic Press Machine
25Mpa Double Column Hydraulic Press Machine
Specifications
Brand Name :
TECHVIEWER
Model Number :
HP-20
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Chat with Supplier
Payment Terms :
L/C, T/T
Supply Ability :
50000 units per year
Delivery Time :
5-8 work days
Packaging Details :
Wooden box, quantity in 20' container: 10, quantity in 40' container: 20
Type :
Double Column Hydraulic Press
Feature :
Automation, Precision, High Efficiency
Customized :
Customized
Warranty :
1 year
Voltage :
110v 220v 380v Optional
Name :
2 post hydraulic press
Description

2 post hydraulic press HP-20 / hydraulic press machine / hydraulic bending machine

25Mpa Double Column Hydraulic Press Machine

HP-20 2 Post Hydraulic Press features:

HP series hydraulic presses are used for assembling, dismantling, alignment, calendaring, tension, bending and punching.
Italy CNK & CBZ oil pump
Save 60% energy compared with traditional model
The efficiency increased to 2-3 times
It takes advantages of small volume, high pressure, simple structure and light weight.

HP-20 2 Post Hydraulic Press technical specification:

Model HP-10 HP-20 HP-30 HP-50 HP-63
Capacity (KN) 100 200 300 500 630
Pressure (Mpa) 25 25 25 25 30
Travel (mm) 200+200 200+250 200+270 220+405 220+405
Tale size (mm) 260*300 260*300 300*400 480*360 400*500
Dimension (mm) 1000*450*1200 1160*550*1500 1160*550*1600 1500*650*1950 1500*650*1950
Weight (KG) 220 320 420 980 1020

Model HP-100 HP-150 HP-200 HP-250
Capacity (KN) 1000 1500 2000 2500
Pressure (Mpa) 30 30 30 30
Travel (mm) 250+405 250+405 300+405 300+405
Tale size (mm) 440*980 440*980 500*980 500*980
Dimension (mm) 1730*730*2200 1730*730*2200 1800*800*2200 1800*800*2250
730*630*960 730*630*960 830*730*1260 830*730*1260
Weight (KG) 1220 1350 2200 2400

Product details:

25Mpa Double Column Hydraulic Press Machine

25Mpa Double Column Hydraulic Press Machine

25Mpa Double Column Hydraulic Press Machine25Mpa Double Column Hydraulic Press Machine

More Products: tire changer | car lift | wheel balancer | brake disk lathe

25Mpa Double Column Hydraulic Press Machine

Company & factory
25Mpa Double Column Hydraulic Press Machine

Why choose us
Online/Offline Technical Support
Service Parts Availability 100%
Professional Shop Design & Upgrade
Support Technical Training
