Galvanized Metal Bus And Truck Washing Machine Automatic Height 4200mm
Galvanized Metal Bus And Truck Washing Machine Automatic Height 4200mm
Galvanized Metal Bus And Truck Washing Machine Automatic Height 4200mm
Galvanized Metal Bus And Truck Washing Machine Automatic Height 4200mm
Galvanized Metal Bus And Truck Washing Machine Automatic Height 4200mm
Galvanized Metal Bus And Truck Washing Machine Automatic Height 4200mm
Specifications
Place of Origin :
Guangdong, China
Brand Name :
wintai
Model Number :
nm
Packaging Details :
carton
Supply Ability :
10000 Set/Sets per Month
Price :
$42,900.00/sets >=1 sets
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
25
Material :
galvanized sheet metal
Output Power :
>1500W
Design Style :
New China-Chic
material :
galvanized metal or stainless steel
Application :
bus,truck,heavy duty vehicles
Max Vehicle suitable :
W 2600 H 4200mm
Type :
channel,automatic
Color :
blue
Description

Galvanized Metal Stainless Steel Bus Truck Washing Machine Automatic Channel Type

Product Description

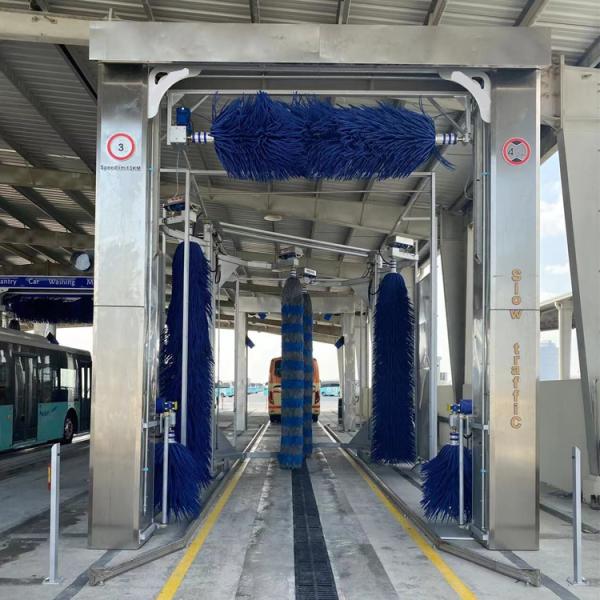

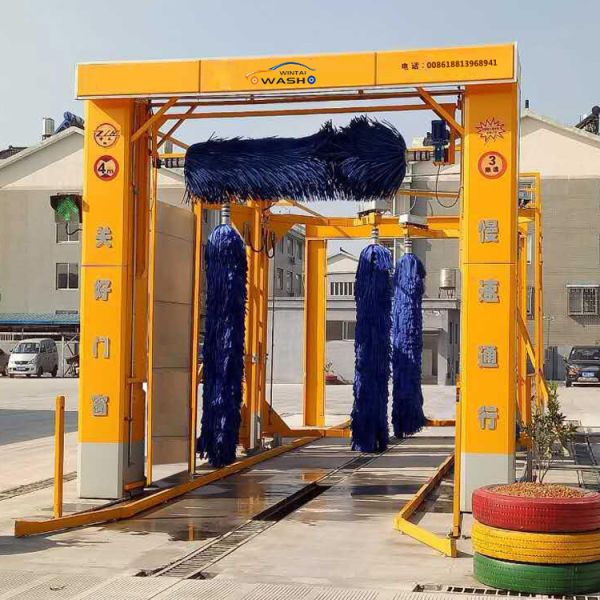

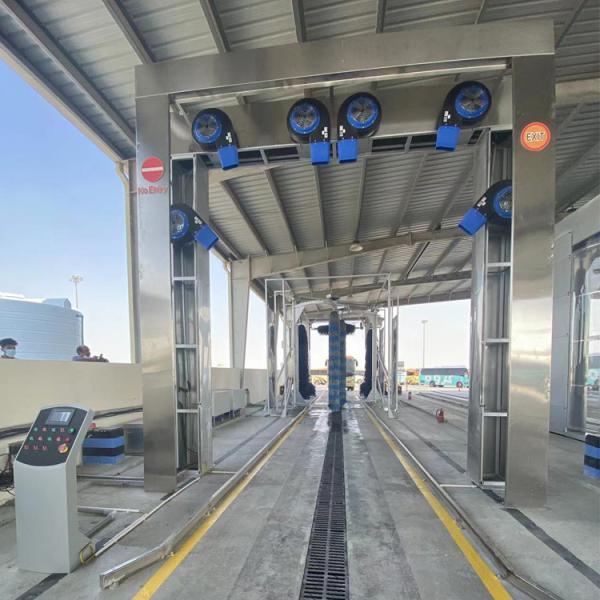

Channel Type Bus/Truck Washing Machine Automatic
(1) The car washing machine adopts channel type , with computer control in the progress, can meet with vehicle models cleaning and cleaning needs which company operating (vehicle size 2600 (width) × 4200 (height) mm).
(2)The machine can perform the high efficient , quick flushing and brushing of the operating vehicles through electronic control (programmable controller) continue it's automate operating control
(3) The washing machine is equipped with the newest modular automatic control system, fault automatic detection system, can control electricity leakage and overload, vehicle rearview mirror automatic avoidance protection system.
(4)The washing machine has the function of fully automatic cleaning of two sides, the rear side, the chassis, the tires, the window glass, and can automatically avoid the rear-view mirror.
Different types available:
3 brushes :1 top, 2 sides
4 brushes: 4 sides
5 brushes : 1 top, 4 sides
7 brushes: 1 top, 4 sides,2 small for wheels
Washing speed: 1-3 minutes
Galvanized Metal Bus And Truck Washing Machine Automatic Height 4200mm
Galvanized Metal Bus And Truck Washing Machine Automatic Height 4200mm
Galvanized Metal Bus And Truck Washing Machine Automatic Height 4200mm
Washing process
1. When the start button is pressed and the entrance signal light turn to green, the washing machine in the standby state. When the vehicle moves slowly to the cleaning area , the washing machine starts up automatically,It'll pre-spraying and rinsing, with cleaning brush to wash top of the vehicle, two sides and back of the vehicle After cleaning, there is no dust ,soil or other dirty area on the vehicle body.during the cleaning process, the washing brush will automatically avoid the rear-view mirror according to the signal detection. When the vehicle drive out from the cleaning area, the cleaning ends automatically and waiting for the next vehicle to enteri in the washiing area.
2. The side brush consists of two sets of large rocking-type side brushes. By pneumatically controlling the opening and closing of the brush arm, the appropriate air pressure generates a certain pressure, so that the rotating brush close to the car body, and it is rotated by the brush body. The brush fiber works at the surface of the car to cause rapid friction between the brush fibers and the surface of the car to remove dirt on the vehicle body .
3. The side brush can avoid the rear view mirror automatically under the signal detect. Each side brush are detected according to the signal light, it'll rest for minutes after relative time work.
4. The top brush is used for cleaning the top part of the vehicle , and automatically cleaning the vehicle top through signal
detection starting and stopping at the appropriate time.
Specification
Brand Name
wintai
Model Number
nm
Size
2600 × 4200mm
Material
galvanized sheet metal
Warranty
1 year
Output Power
>1500W
Design Style
New China-Chic
material
galvanized metal or stainless steel
Max Vehicle suitable
W 2600 H 4200mm
Type
channel,automatic
drying system
optional
Packing & Delivery
standard export package, each set is suitable for a 40HQ
