High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
Specifications
Place of Origin :
Guangdong, China
Brand Name :
WINTAI
Model Number :
5D800
Packaging Details :
standard export package
Supply Ability :
100 Set/Sets per Week
Price :
$4,999.00/sets 1-1 sets
Certification :
CE
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
15
Power Supply :
110v/220v
Balancing Speed :
nm
Max. Wheel Weight :
nm
Warranty :
1 Years, 1 year
Type :
5D wheel alignment, movable
Camera :
5pcs 5 Mega Pixels
Language :
Global Multi-language
Targets :
5pcs
Computer :
Lenovo
Suitable rims :
12"-23"
database :
Exceed 20,000
Work with :
lift withs secondar jack
Android system :
support
Port :
Guangzhou
Description

5D wheel alignment with 5pcs cameras 5pcs targets high precision,smaller space needed, support Android system, support APP download in mobile phone.

High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar JackHigh Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack

Product feature:

Wireless, no electronic sensor and components, can avoid some questions caused by sensor error. Measurement precision is not affected by the unbalance of vehicle and car lift. Wheel and rim compensation is unnecessary for measurement process. The advantage increase the accuracy and reliability of measurement, improve the working efficiency.

1)Five high resolution cameras respectively photographing five targets along with closer distance between cameras and targets offer clearer photographs and more precise measurement.

2)Apply high strength plastic target, which is lighter, thinner and stronger.

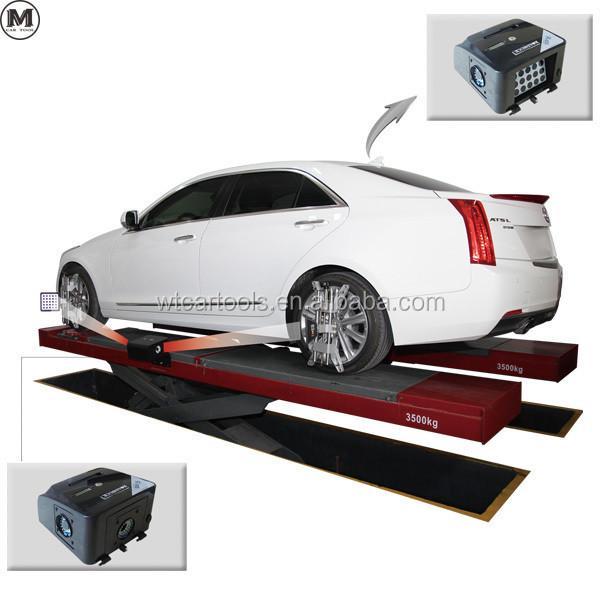

3)The camera installed onto the car lift, with short shooting distance, the measurement data is

more precise; This machine is made for saving the operation space.

4) Multi-interfaces can be easily switched.

5) Assistant 3D animation for adjusting

6) Multi-languages including Chinese, English ,Portuguese, Arabic, Spanish, Russian, Japanese, Korean, French, German, Italian

7)Cooperate with ALLDATA ,original vehicle database owning more than 20,000 original vehicle databases

8) Car body dimension & wheel rolling radius measurement.

9) Jack-up adjustment function, it’s convenient for the operator to lift vehicles and adjust camber.

10)Smaller space needed, more precise result.

Technical parameters:

ITEMS

Front wheel measurement precision

Front wheel measurement range

Rear wheel measurement precision

Rear wheel measurement range

TOE

±0.02

±20°

±0.02

±20°

CAMBER

±0.02

±15°

±0.02

±15°

S.A.I

±0.02

±26°

x

x

CASTER

±0.02

±26°

x

x

THRUST ANGLE

x

x

±0.02

±5°

High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar JackHigh Precision 5D Wheel Alignment System 5 Cameras Work With Secondar JackHigh Precision 5D Wheel Alignment System 5 Cameras Work With Secondar JackHigh Precision 5D Wheel Alignment System 5 Cameras Work With Secondar JackHigh Precision 5D Wheel Alignment System 5 Cameras Work With Secondar JackHigh Precision 5D Wheel Alignment System 5 Cameras Work With Secondar JackHigh Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack

High Precision 5D Wheel Alignment System 5 Cameras Work With Secondar JackHigh Precision 5D Wheel Alignment System 5 Cameras Work With Secondar Jack
