Specifications
Place of Origin :
Guangdong, China, Guangdong
Brand Name :
BIVEO
Model Number :
J-20
Packaging Details :
standard export package
Supply Ability :
100 Set/Sets per Month
Price :
$4,100.00/sets >=1 sets
Certification :
CE
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
15
Type :
Other
Color :
Yellow
Material :
Metal
Power Supply :
110v/220v
Max. Wheel Weight :
80kg
Warranty :
1Years
Screen :
32" & 19"
Suitable rims :
12"-23"
Keywords :
3D wheel aligner
Max. Rim Width :
w
Dual screen :
yes,
Max. Rim Diameter :
d
Port :
Guangzhou
Description

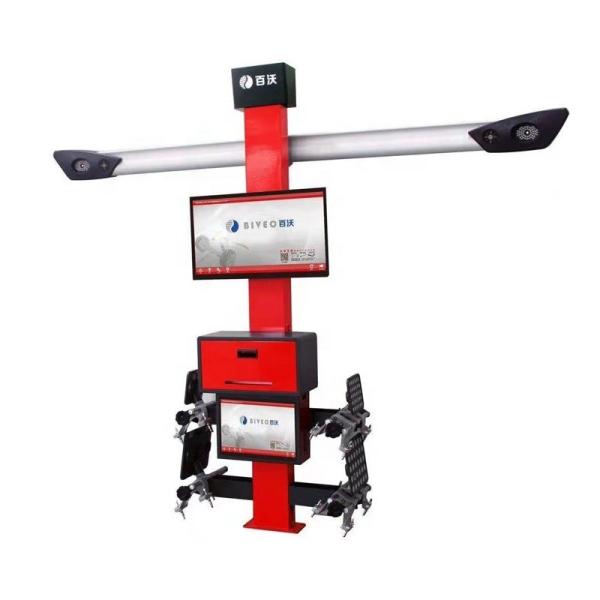

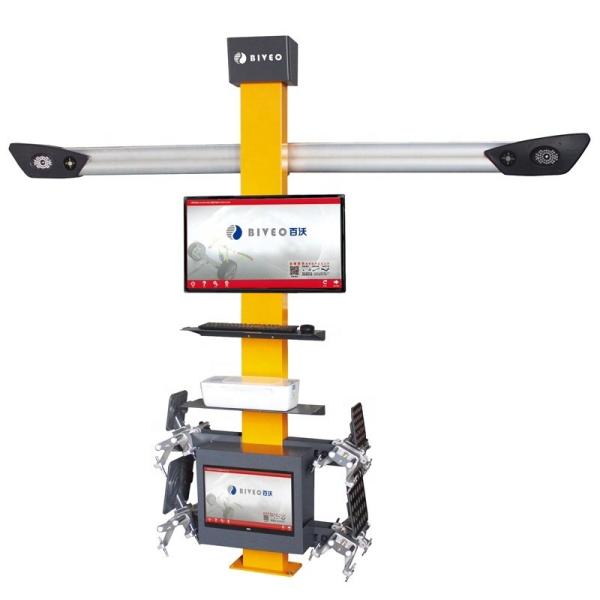

BIVEO four-wheel alignment system 3D car wheel aligner high accuracy use alldata update free

Metal 110v Tire Alignment Machine High Accuracy And Free Alldata Update

Advantage:
1. From same manufacturer of H*offman*n and Sunshine,
2. with overvoltage protection,
3. with central integrated unit, super ability of anti-interference,
4. Special design of steering wheel fixer without spring, more stable,
5. USB 4.0 makes sure data transfer more quickly,
6. Dupont power coating, up to 8 years lifetime,
6. Hedy computer,
7. Self-development software with Auto.data database,update free two times one year
8. 32" big screen & 19" screen
9. 4-feet clamps
10. Components recommended function to help you solve more problems and get more profit
Standard Configuration
Compact cabinet,Big screens,Hedy computer, brand printer, target plate, Pylon bracket, Brake fixer, Steering wheel fixer, Wedge block, Turntable, Transition block of turntable, 4.0 software
Software function
Basic function: camber, caster, Kingpin Inclination, toe angle, set back, Thrust Angle and so on
Extended function: axis deviation measurement, wheel deviation measurement, Animation, single-wheel measurement, the vehicle lift measurement function, straight steering wheel function, Alignment platform levelness detecting function

Technical Specification:

Measurement project

Accuracy

Measurement range

Display accuracy

1´/1mm

Camber

±2´

±10°

Caster

±6´

±20°

Kingpin Inclination

±6´

±20°

Toe-in & Toe-out

±2´

±20°

Set back

±2´

±5°

Thrust angle

±2´

±5°

Wheel Deviation

±2mm

Axis Deviation

±2mm
