ATF-20DT Semi Automatic Transmission Fluid Exchanger Cleaner for Smooth Oil Exchange

Important:

The price doesn't include freight.

please contact us to quote freight.

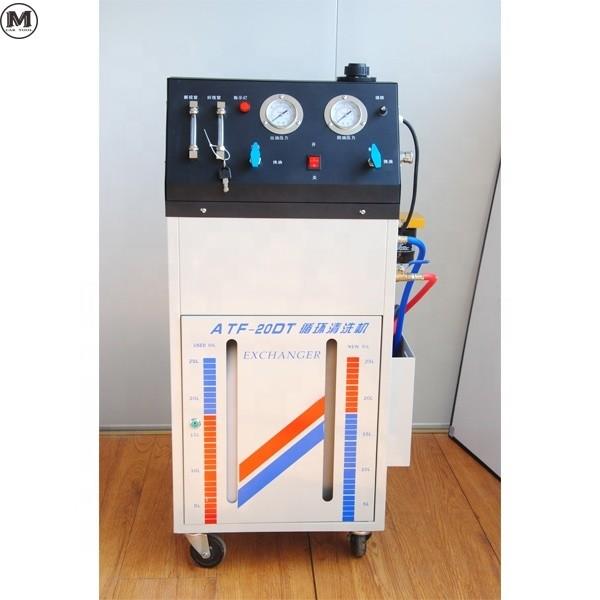

Semi Automatic Auto Transmission Fluid Exchanger & Cleaner ATF-20DT

Why should we use ATF machine?
The structure of ATF machine is extremely tight and complex. Only 25% of waste oil can be changed if using traditional way. Metal scraps, Oil sludge and other residues still in the gearbox will cause secondary pollution mixing with new oil, which make gearbox accelerating slow, changing gear with vibration, and then overheating, oil consumption big and other abnormal phenomena, if it’s ignored, it is easy to fail.This ATF machine is designed according to the world's latest process. Combining the recycling and cooling pressure of gearbox and the output pressure of this machine, it’s filled with new oil when discharging waste oil. This kind oil exchanging which make new oil filling and waste discharging occurring synchronously not only ensures the safety and
efficiency, but also makes gearbox in completely maintenance. Meanwhile the ATF machine adopts adjustable electric pressure design which allow the pressure can be adjusted according to the needs of different models, easy to operate. The ATF machine can finish the oil recharging and cleaning of gearbox ,hydraulic converter, gearbox radiator in 20 minutes, which not only can completely remove metal scraps, oil sludge, but also make oil changing ratio to nearly 100% to make sure gearbox is always new.

Features of ATF-20DT ATF machine
1,it can clean gearboxes from European, America, Japanese ;
2,It can finish the oil recharging and cleaning of gearbox ,hydraulic converter, gearbox radiator in 20 minutes, which not only can completely remove metal scraps, oil sludge, but also make oil changing ratio to nearly 100%;
3,No need dismantling, it can completely remove metal scraps and oil sludge in gearbox;
4,It can rapidly solve the problem of changing gear difficultly, restore its performance, reduce the vibration of the gearbox,
reduce its temperature, reduce its fuel consumption and prolong its lifetime.
5,Movable type, reasonable structure and easy to operate.
6,Use quick joints to connect with gearbox, easy and fast to operate
7,Pressure adjustable design makes sure it can work in different models of vehicles.
8,Cycle cleaning function makes sure more completely maintenance.
ATF-20DT ATF Machine Structure
Structure:

Parameters:

Packing List
Please check carefully all parts you receive when opening package. Even though all parts are packed well in factory.Unexpected abnormality or accident can't be avoided completely. If you find any problems, please report it to dealer.Pictures and written documents are highly recommended so that the problem can be solved better and more quickly. It includes below parts
1. ATF main machine 1 set; 2.adapter kit 1 set;
3. Accessories: a. wheels(4pcs) b.M8 screws 16 pcs(fix wheels) c. User Manual
Cleaning Agent(optional)

ATF-20DT Working Principle Schematic diagram

Please use cleaning agent from WINTAI or approved by WINTAI, or else uses will not enjoy the rights and interests of one year free warranty .

ATF-20DT Adapter Kit
