531mm Height Air Hydraulic Jack
531mm Height Air Hydraulic Jack
531mm Height Air Hydraulic Jack
531mm Height Air Hydraulic Jack
531mm Height Air Hydraulic Jack
531mm Height Air Hydraulic Jack
531mm Height Air Hydraulic Jack
531mm Height Air Hydraulic Jack
531mm Height Air Hydraulic Jack
531mm Height Air Hydraulic Jack
Specifications
Brand Name :
Golden Boat
Model Number :
50T2
Certification :
CE
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
USD 400-600/SET
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
20 work days
Packaging Details :
wooden case
Capacity :
25/50T
Min height :
210mm
Max height :
531mm
Air pressure :
0.8-1.2MPA
Description

50T2 Air hydraulic jack

Description of Car jack:

1. for load lifting activities
2. capacities : 50T
3. high quality with most competitive

4. Compact design ,small volume,light weight,easy operation,time saving,labor saving,large lifting tonnage

5. Small dimension,large carrying capacity,high-pressure resistance performance

6. Slightly slide switch for ealizing purpose lifting

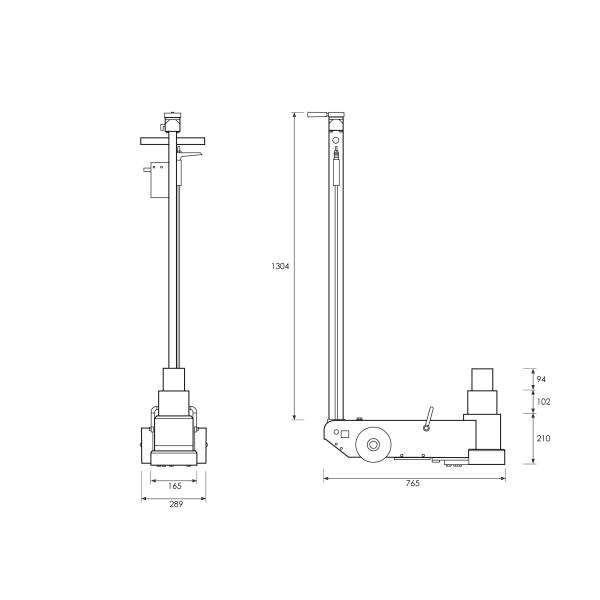

Model type 50T2
Type AIR HYDRAULIC JACKS
Lifting Capacity 25T/50T
Min Height 210mm
Max Height 531mm
Lifting Height

25T:94mm

50T:102mm
Working air pressure 0.8-1.2Mpa
Net weight 60kg
Gross weight 77kg
Packing size: 1450*335*330mm

Lifting:

1. Connect adequate air source to the air supply inlet(Air pressure 0.9-1.2Mpa)

2. Turn the control valve clockwise until the pump starts.

3. Transfer the load immediately to appropriately rated jack stands.

Lowering:

1. Raise load high enough to clear the jack stands.

2. Remove jack stands carefully(always used in pairs).

3. Slowly turn handle knob counter-clockwise, if the load fails to lower:
(a). Use another jack to raise the vehicle high enough to reinstall jack stands.

(b). Remove the malfunction jack and then jack stands.

(c). Use the functioning jack to lower the vehicle.

4. After removing jack from under the vehicle, fully retract the jack to reduce ram exposure to rust and contamination.
