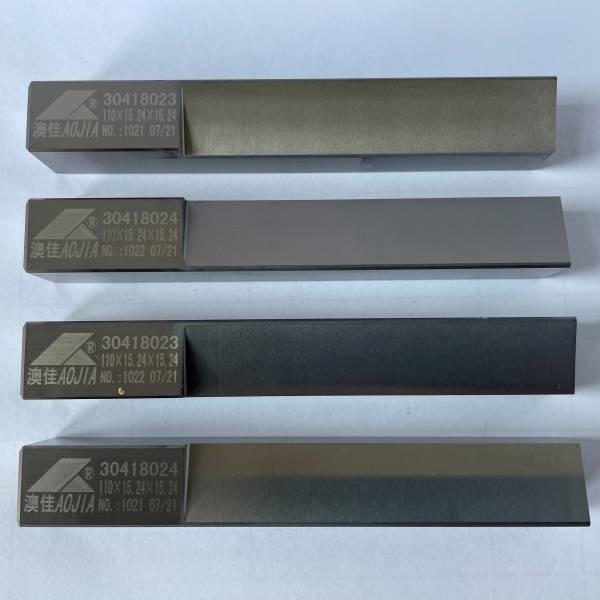

Carbide Gear Cutter Blade For Spiral Bevel Gear Cutting From China Factory
Carbide Gear Cutter Blade For Spiral Bevel Gear Cutting From China Factory
Carbide Gear Cutter Blade For Spiral Bevel Gear Cutting From China Factory
Carbide Gear Cutter Blade For Spiral Bevel Gear Cutting From China Factory
Carbide Gear Cutter Blade For Spiral Bevel Gear Cutting From China Factory
Carbide Gear Cutter Blade For Spiral Bevel Gear Cutting From China Factory
Specifications
Brand Name :
AOJIA
Model Number :
can be customized
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
negotiate
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
within 14 working days
Packaging Details :
Inner packing plastic bag, outer packing superhard carton
Category :
Spiral Bevel Gear Cutter
description :
Carbide gear cutter blade for spiral bevel gear cutting from China factory
material :
tungsten carbide, cemented carbide
dimension :
can be customized
coating :
TiN, AT, AP, DURANA coating
precision :
AAA,AA,DIN3968
Application :
Gleason bevel gear cutting machine,OERLIKON bevel gear cutting machine
prcoessing method :
roughing, semi-finishing, finishing
Description

Carbide gear cutter blade for spiral bevel gear cutting from China factory

Spiral Bevel Gear Cutter Blade with high precision

Dimension: can be customized

Coating: TiN, AT, AP, DURANA coating is available

Carbide blade cutter head cutting speed meter

serial number

The diameter of the cutter head

Time / mm

cutting speed

The ruler / cent

main shaft speed

Turn / points

 instruction
1 "/Ø12.7

120 - 180

 3000 - 4500

①.Currently only applies 1.1" to

2.75" cutter head," cutter head temporarily

Can't apply

②. The spindle speed of the cutter head adopts

1:1.5 pulley deceleration, so

Spindle speed up to

1890 rpm.

③. For 1.1" cutter head,

1.3" cutterhead, up to

up to 200 m/min

cutting speed, according to

High speed 1890 rpm

calculate.
2

1.1"/Ø27.94

120 - 165

 1360 - 1890
3

11. 3"/ Ø33. 02

120 - 196

 1150 = 1890
4

1.5"/Ø38.1

120 - 200

 1000 - 1670
5 2. 0" /Ø50.8

120- 200

 750 - 1250
6

2.5"/ Ø63.5

120-200

 600 - 1000
7

2.75"/ Ø69.85

120- 200

 550 - 910

Carbide Gear Cutter Blade For Spiral Bevel Gear Cutting From China Factory
