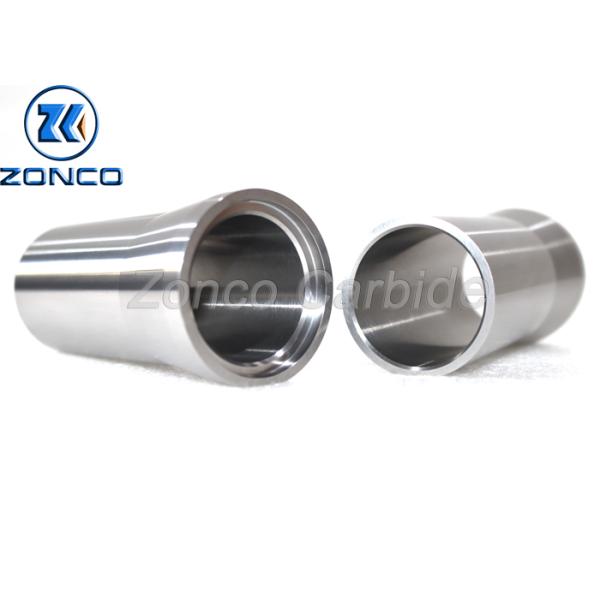

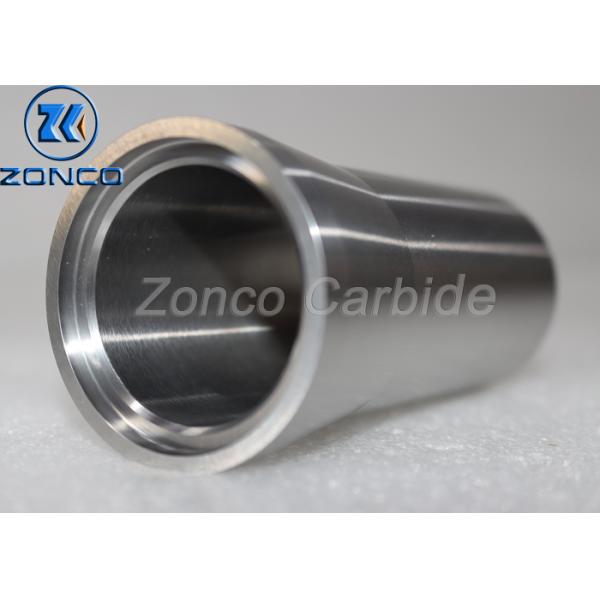

Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Pump Tungsten Carbide Bushing
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
10000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Type :
bushing
Application :
oil and gas industry
Material :
100% virgin raw material
Surface :
Ground or Blanks
Grade :
K10, K20, K30, etc.
Packing :
Wooden box
Description

Quality Manufacturing Oil Pumps Cemented Tungsten Carbide Bearing Sleeve Tungsten Carbide Bushing Sleeve

The Product Application of tungsten carbide bushing

Tungsten carbide bushing applications is widely, which is a device to protect a class of components. It is in the actual work and the role and purpose of its application environment have a great relationship. Valve applications, bushings be installed in the valve stem cap trap, in order to reduce the valve leakage, to seal; bearing applications, the use of bush to reduce wear between the bearing and the shaft seat, avoid the gap between the shaft and the hole increases and so on.

Tungsten carbide bushing production and processing of high-strength, can withstand prolonged load, with high chemical stability, alkali, alcohol, ether, hydrocarbons, acid, oil, detergent, water (sea water), and has no smell , non-toxic, tasteless, non-rust characteristics, its widely used in petrochemical industry for Submerged Oil Pump, slurry pump, water pump, Centrifugal Pump,etc.

Grade List

Grade Density T.R.S. MPa Performance & application recommended
YG6A 14.95 1800 Fine grain alloy, good wear resistance. Semi-finishing of chilled cast iron, non-ferrous metals alloys, semi-finishing and finishing of hardened steel, alloy steel.
YG8 14.8 2200

High strength in use, impact and shock resistance higher than YG6, but wear resistance and

cutting speed comparatively lower
YN8 14.7 2000 Corrosion Resistant, It widely used in chemical and petroleum pumps
YG10 14.5 2400 High strength in use, impact and shock resistance higher than YG6, but wear resistance and cutting speed comparatively lower. Roughing of cast irons, non-ferrous metals and their alloys as well as non metallic materials at low cutting speed.
YL10.2 14.5 2400 Fine grain alloy, good wear resistance. Used for processing hard wood, veneer board, PCB, PVC and metals
YG20 14.3 2420 Conventional wear resistance, high bending strength,used for steel alloy etc.

Pump Tungsten Carbide Bushing

Our advantages

1. Use 100% Raw material, strict incoming inspection.

2. Overpressure sintering, increasing the densification of the alloy teeth and increasing the 30% life span.

3. Can be customized according to the requirements of the customer.

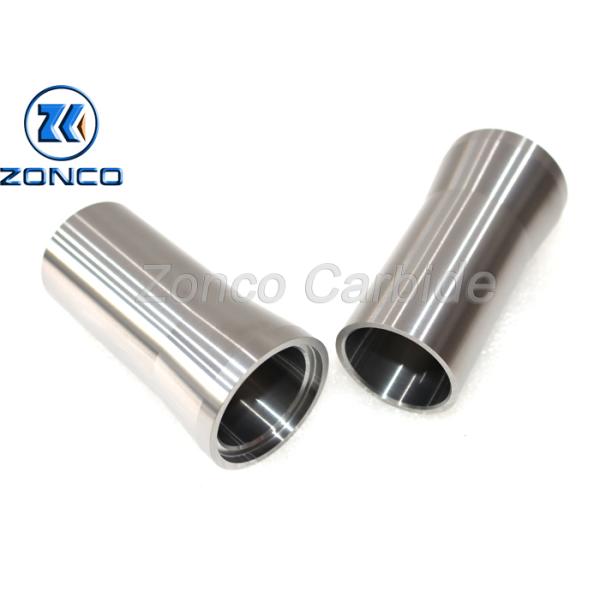

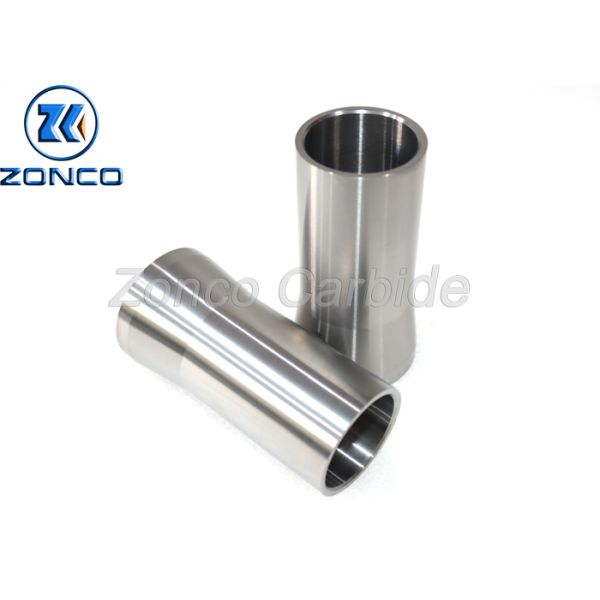

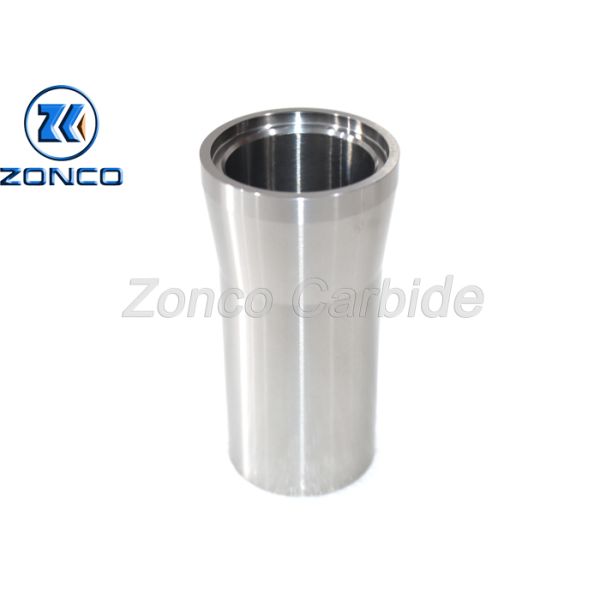

Products show

Pump Tungsten Carbide Bushing

Pump Tungsten Carbide Bushing

Pump Tungsten Carbide Bushing

Pump Tungsten Carbide Bushing
