Tungsten Carbide Wellhead Christmas Tree Choke Valve
Tungsten Carbide Wellhead Christmas Tree Choke Valve
Tungsten Carbide Wellhead Christmas Tree Choke Valve
Tungsten Carbide Wellhead Christmas Tree Choke Valve
Specifications
Brand Name :
Zonco
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
4-8 weeks depending on quantity
Packaging Details :
Standard package or to customer's demand
Application :
Oil Industry
Size :
Customized Size
Certificate :
ISO9001:2015
Brand name :
Zonco
Type :
Choke Valve
Description

Tungsten Carbide Valve Stem Used In Wellhead Christmas Tree Choke Valve

Product features:

1. Raw materials’ quality is 100% guaranteed. Some materials are imported from abroad, making the product performance more stable.2. High hardness products are more resistant to wear and erosion

3. Advanced materials, better corrosion resistance

Product introduction:

Choke valve, sometimes also known as 'choker valve' is a type of control valve, mostly used in oil and gas production wells to control the flow of well fluids being produced. Another purpose that the choke valves serve is to kill the pressure from reservoir and to regulate the downstream pressure in the flowlines.

Choke valves allow fluid flow through a very small opening, designed to kill the reservoir pressure while regulating the well production. The reservoir fluids can contain sand particles. Hence the choke valves are usually designed to handle an erosive service.

Typically oil and gas producing wells have two choke valves in series, one non-regulating choke valve and one regulating choke valve downstream to the non-regulating choke valve.

Common alloy grades, physical and mechanical properties, and recommended applications

Grade Physical and mechanical properties
density(g/cm3) Flexural strength(N/mm2) hardness(HRA)
ZG01 15.3-15.5 1200 95.5
ZG06 14.8-15.1 2000 90.0
ZG6X 14.8-15.1 1860 91.8
ZG6A 14.8-15.1 2000 93.2
ZG08 14.6-14.9 2200 89.0
ZG11 14.3-14.7 2600 88.5
ZG12X 14.2-14.5 2850 89.5
ZG15 13.8-14.2 3000 86.5
ZG10.2 14.3-14.6 3500 91.5
ZN06 14.5-14.9 2000 90.0
ZN09 14.3-14.6 2300 89.0
ZN11 14.0-14.3 2600 88.0

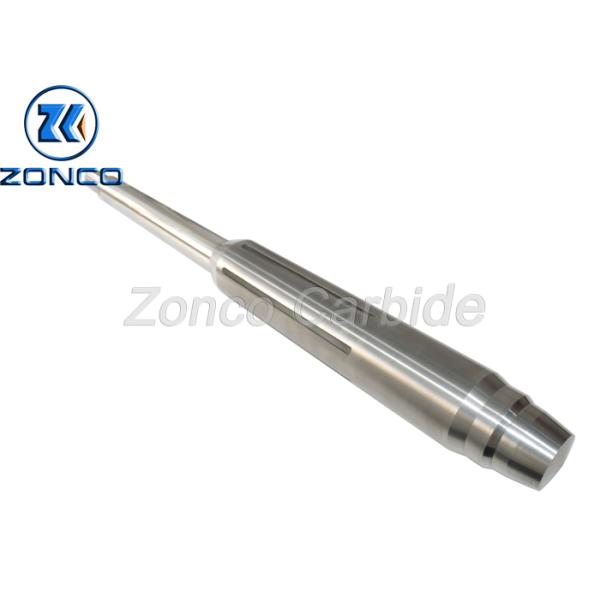

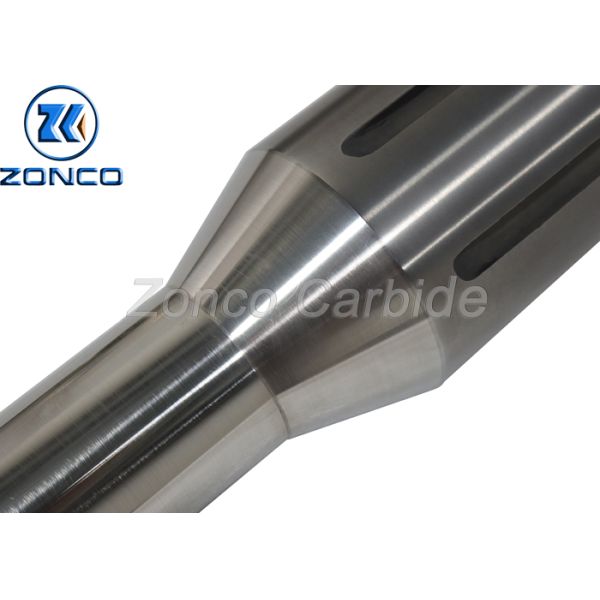

Pictures:

Tungsten Carbide Wellhead Christmas Tree Choke Valve

Tungsten Carbide Wellhead Christmas Tree Choke Valve

Advantages:

Zonco has been specialized in the cemented carbide industry for many years. It is particularly good at the production and processing of special-shaped non-standard parts. Zonco has not only a full set of processing equipment, but also unique processing technology as well. Zonco offers innovative solutions to meet the extreme complex and severe working conditions (high temperature, strong corrosion and wear) in energy, chemical industry and other industries.The company is dedicated to addressing production concerns to deliver productivity to customers seeking peak performance and providing products with high performance price ratio.

Main product line:

Cemented carbide valve stem

Hard alloy valve seat

Cemented carbide porous sleeve

Carbide labyrinth valve
