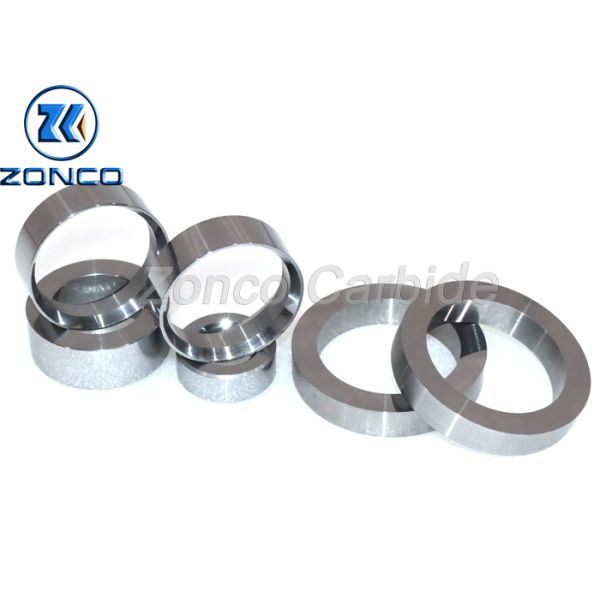

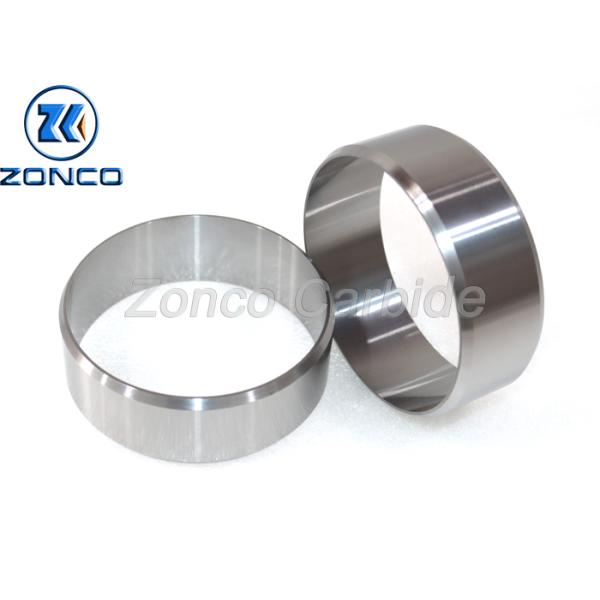

Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
100000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Application :
available for nearly every rolling
Material :
100% Virgin Tungsten Carbide
Surface :
excellent surface finish of the rolled product
Feature :
Higher hardness
Name :
Carbide flat seal rings
Packing :
Wooden box
Description

Blank Tungsten Carbide Flat Seal Rings With High Wear Resistance And Well Corrosion Resistance

Advantages: 1. 100% virgin raw material.

2. Inspection reports can be provided.

3. Customized parts are available.


Product Application:

We can manufacture both rough blank tungsten carbide seal rings and finished rings with high precision. With high wear resistance and well corrosion resistance, tungsten carbide material is better than ceramic and silicon carbide material.


Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance

Blank Tungsten Carbide Mechanical Seal Ring High Wear Resistance

Grades:

-With 6% Nickel, excellent corrosion resistance.

-With 6% Cobalt, 8% Cobalt, 12% Cobalt with higher hardness.

Most of the tungsten carbide seal rings are customized parts. Please send the drawing to us! Freely to contact us if there is anything we can do for you!


Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
GradeWC%Co/Ni %Physical and mechanical propertiesGrain size (μm)Recommended application
Density (g/cm3)TRS (N/mm2)Hardness (HRA)
ZG01100015.3-15.5120095.50.3Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X96415.0-15.2160092.80.8-1.0Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG0694614.8-15.1250090.01.2Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X94614.8-15.1240091.51.0Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A94614.8-15.1215092.50.6-0.8
ZG0892814.6-14.9270089.01.2-1.6Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2901014.3-14.6380091.70.7Good general performance, suitable for casing and oil nozzle products
ZG11891114.3-14.7280088.51.2-1.6Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X881214.2-14.5300089.51.0-1.2Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15851513.8-14.2300086.51.2-1.6
ZG15X851513.8-14.2450089.00.7Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20802013.4-13.8310085.01.0Excellent wear resistance and toughness
ZN0694614.5-14.9200090.01.2Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN0991914.3-14.6230089.01.2-1.6
ZN11891114.0-14.3260088.01.2
