New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
1000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Size :
1'' and 2''
Material :
Tungsten Carbide + SS410 SS420
Production capacity :
1000pcs/month
Description

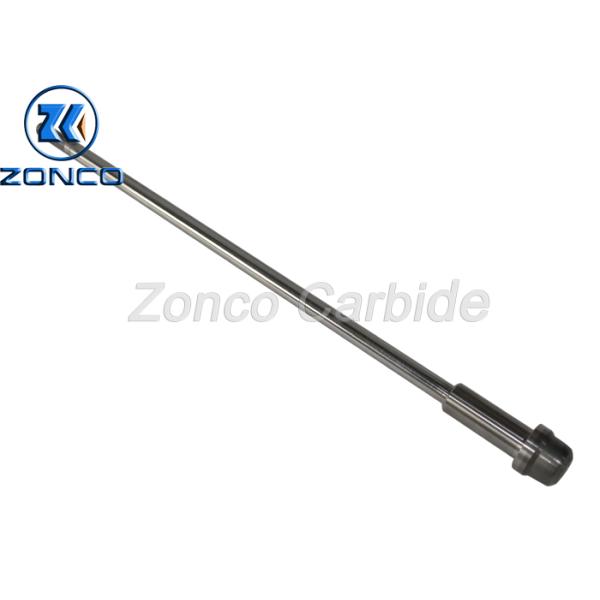

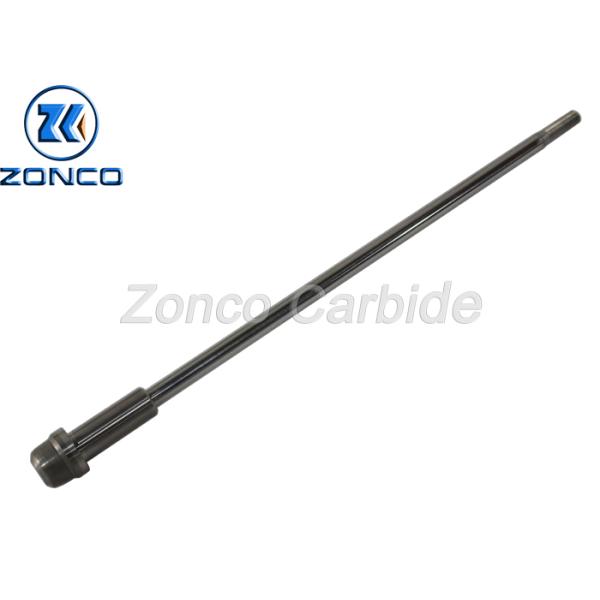

New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve

Choke stem and seat are the key parts for adjustable choke valves in wellhead equipment.Assembled with tungsten carbide tips and SS410/316 body.

Specifications

Size 1'' and 2''
Material YG6/YG8 +410 S.S/420 S.S
Certificate Material,size,MPI,UT etc
Sample Can provide sample before form orders
Braze way Silver brazing
Delivery time 35days/1000pcs
Package Carton +wooden cases

Products show

New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve

New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve

New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve

New Stem (Tungsten Carbide +SS410 )for Adjustable Choke Valve

Our Services

1.OEM grade--Can composit grade according to customer's requirement

2.OEM part--Can product parts according to customer's drawing

3.Service on 24 hours

Our products range

  • Tungsten carbide mechanical seal rings
  • Tungsten carbide bush and sleeve
  • Tungsten carbide valve and seat for fluid controlling
  • Choke valve stem
  • Choke beans
  • Choke stem and seat
  • Tungsten carbide thread nozzles
  • Tungsten carbide tip for oil well,water well drilling,mining drilling,stone working
  • Tungsten carbide teeth for drill bits
  • Other tungsten carbide customized products

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2
