YG6/YG8/YG8C Tungsten Carbide Wear Parts Ball Bearing Seats For Hardware Industry
YG6/YG8/YG8C Tungsten Carbide Wear Parts Ball Bearing Seats For Hardware Industry
YG6/YG8/YG8C Tungsten Carbide Wear Parts Ball Bearing Seats For Hardware Industry
YG6/YG8/YG8C Tungsten Carbide Wear Parts Ball Bearing Seats For Hardware Industry
YG6/YG8/YG8C Tungsten Carbide Wear Parts Ball Bearing Seats For Hardware Industry
YG6/YG8/YG8C Tungsten Carbide Wear Parts Ball Bearing Seats For Hardware Industry
YG6/YG8/YG8C Tungsten Carbide Wear Parts Ball Bearing Seats For Hardware Industry
YG6/YG8/YG8C Tungsten Carbide Wear Parts Ball Bearing Seats For Hardware Industry
YG6/YG8/YG8C Tungsten Carbide Wear Parts Ball Bearing Seats For Hardware Industry
YG6/YG8/YG8C Tungsten Carbide Wear Parts Ball Bearing Seats For Hardware Industry
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
100000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Surface :
Ground or Blanks
Grade :
YG6/YG8/YG8C etc
Size :
Customized
Model Type :
Various
OEM Service :
Acceptable
Trial Order :
Acceptable
Description

Tungsten Carbide Ball Bearing Seats For Hardware Industry, Valve, Bearing, Die Casting , Punching

Quick detail

Size: Customized Model Type:Various Trade Term: CIF,EXW,FOB
Grade: YG6/YG8/YG8C etc Color: Silver Gray Surface: Ground or Blanks
Trial Order: Acceptable OEM Service: Acceptable Delivery Time: Shipped in 10 days after payment

Product Description

Grade ISO Code Hardness Density T.R.S Application
(HRA) (G/M³) (Mpa)
YG6 K20 90.5 14.6-15.0 1900 Widely used in all kinds of hardware industry, valve, bearing, die casting , punching and grinding measurement.
YG6X K10 91.5 14.6-15.0 1800 Widely used in all kinds of hardware industry, valve, bearing, die casting , punching, grinding measurement.
YG8 K30 89.5 14.4-14.8 2200 Widely used in valves,bearing, die casting , punching, grinding measurement,hardness tester, petroleum, chemical industry, aeronautics and astronautics.

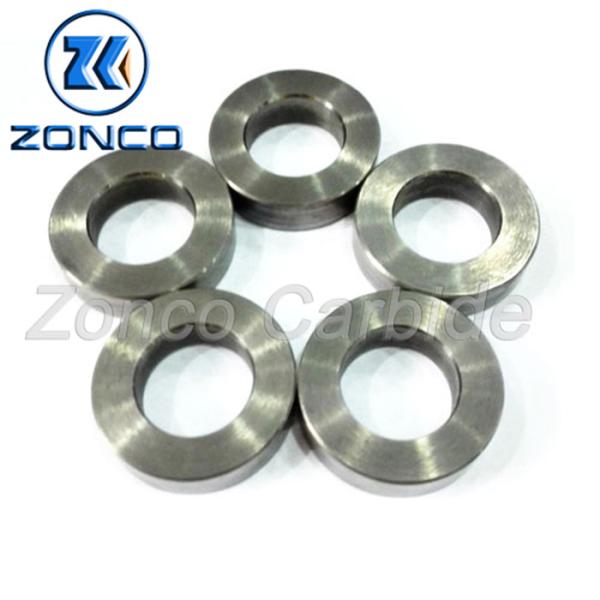

Product show

YG6/YG8/YG8C Tungsten Carbide Wear Parts Ball Bearing Seats For Hardware Industry

YG6/YG8/YG8C Tungsten Carbide Wear Parts Ball Bearing Seats For Hardware Industry

Common alloy grates,ghysical mechanical properties and recommended application

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2
