Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving
Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving
Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving
Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving
Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving
Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving
Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving
Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving
Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving
Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving
Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving
Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
100000 kg/ per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Material :
100% virgin raw material
Surface :
Ground or Blanks
Particle :
1.2um
Grade :
YG6 YG8 K10 K20
Name :
Tungsten carbide bushing
Virgin material :
100%
Description

Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving

Due to their excellent properties, such as scratch and corrosion resistance, efficiency in heat conduction and sturdiness mean that tungsten carbide Bushings are the most suitable choice for applications that involves heavy amount of friction such as the oil exploration industry.

Zonco is a leading tungsten carbide Bushings manufacturer, making products that are not only reliable and durable but also meet the stringent international quality standards.

Thickness 8-30mm
Diameter 20-500mm
Length 100-2000mm
Appearance Silver gray metal luster
Surface 0.16
Supply state Sintering or processing
Standard GB/T 4187-1984 ASTM F288-90

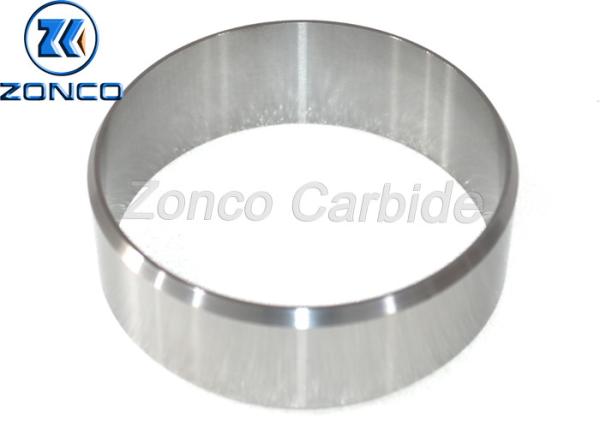

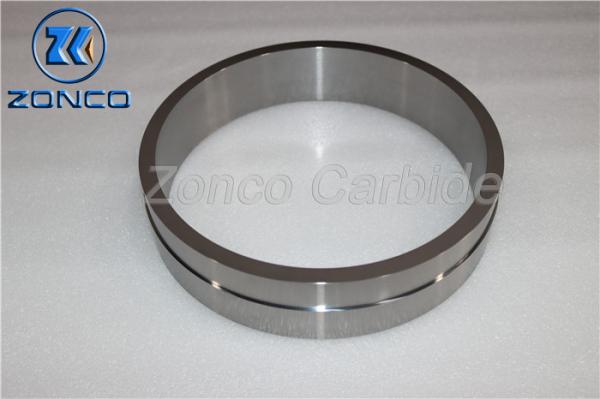

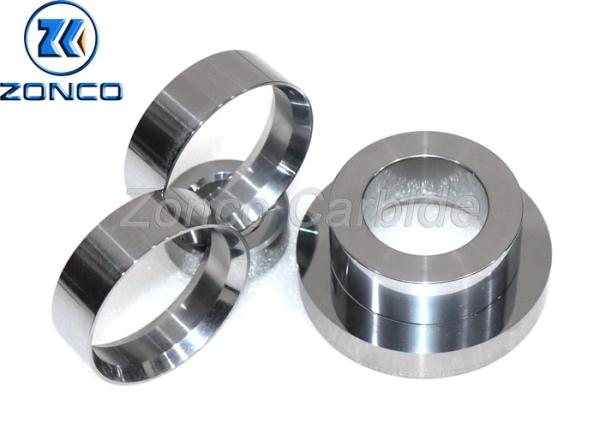

Product show

Customized Cemented Carbide Sleeve Bearing Bushing Small Size Space Saving

Carbide Bushing/bushing is mainly used for oil industry,high temperature furnace compnents, crucible, missile rocket nozzels etc. It is also used for pressing blanks for spinning thin-wall tubes and other special purposes.

We can offer any tungsten material Bushing (pure tungsten Bushing,tungsten alloy Bushing,tungsten carbide Bushing) suitable for different working environments.

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2
