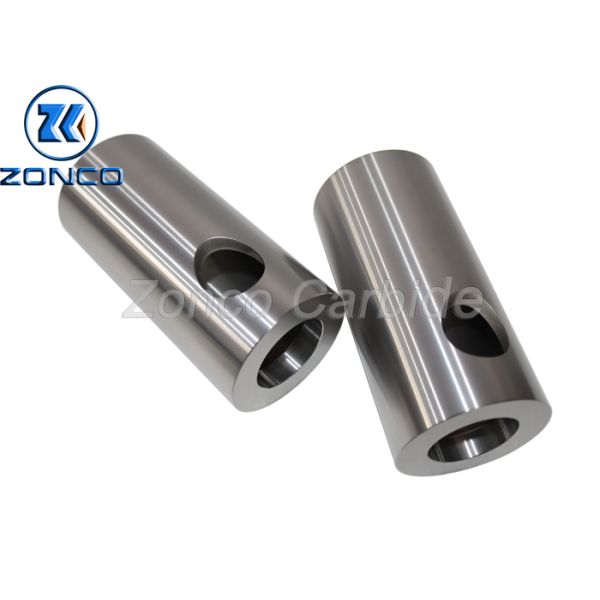

Tungsten Carbide Bushing For Water Pump
Quick Details
Application: Oil Industry | Model Type:Customized | Trade Term: CIF,EXW,FOB |
Material: Tungsten Carbide | Product Name: Carbide Bushing | Surface Roughness: 1.6~0.1 |
Trial Order: Acceptable | OEM Service: Acceptable | Delivery Time: Shipped in 10 days after payment |
Product Description
Carbide bushings are mainly used for stamping and stretching. Carbide bush can effectively reduce the friction between the punch or the bearing and the equipment, and achieve a guiding effect to help protect the equipment. As a wear part in petroleum machinery wells, cemented carbide bushings have high hardness, good wear resistance and high smoothness. After welding, the hardness of the carbide bushing can reach HRC60, and the wear resistance is better, which can meet the requirements of the petroleum machinery industry.
As a professional Chinese manufacturer and supplier, we specializes in design, development, precision of wear resistant components and new materials research and production, marketing, meanwhile, we offer cost effective products and material option solution for those customers who seek high performance products used in extreme
complex working condition.Main products: hard alloy wear-resistant
parts, metal matrix composite wear-resistant parts, superhard powder materials, etc. Work with us, you will benefit financially and
conveniently from our good quality and services, and competitive prices.
Product show
Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application | |||||||
Grade | WC% | Co/Ni % | Physical and mechanical properties | Grain size (μm) | Recommended application | ||
Density (g/cm3) | TRS (N/mm2) | Hardness (HRA) | |||||
ZG01 | 100 | 0 | 15.3-15.5 | 1200 | 95.5 | 0.3 | Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability |
ZG04X | 96 | 4 | 15.0-15.2 | 1600 | 92.8 | 0.8-1.0 | Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts |
ZG06 | 94 | 6 | 14.8-15.1 | 2500 | 90.0 | 1.2 | Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure. |
ZG06X | 94 | 6 | 14.8-15.1 | 2400 | 91.5 | 1.0 | Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance. |
ZG06A | 94 | 6 | 14.8-15.1 | 2150 | 92.5 | 0.6-0.8 | |
ZG08 | 92 | 8 | 14.6-14.9 | 2700 | 89.0 | 1.2-1.6 | Good general performance, used for general wear parts, molds, general tools, etc. |
ZG10.2 | 90 | 10 | 14.3-14.6 | 3800 | 91.7 | 0.7 | Good general performance, suitable for casing and oil nozzle products |
ZG11 | 89 | 11 | 14.3-14.7 | 2800 | 88.5 | 1.2-1.6 | Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries. |
ZG12X | 88 | 12 | 14.2-14.5 | 3000 | 89.5 | 1.0-1.2 | Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings. |
ZG15 | 85 | 15 | 13.8-14.2 | 3000 | 86.5 | 1.2-1.6 | |
ZG15X | 85 | 15 | 13.8-14.2 | 4500 | 89.0 | 0.7 | Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc. |
ZG20 | 80 | 20 | 13.4-13.8 | 3100 | 85.0 | 1.0 | Excellent wear resistance and toughness |
ZN06 | 94 | 6 | 14.5-14.9 | 2000 | 90.0 | 1.2 | Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts. |
ZN09 | 91 | 9 | 14.3-14.6 | 2300 | 89.0 | 1.2-1.6 | |
ZN11 | 89 | 11 | 14.0-14.3 | 2600 | 88.0 | 1.2 |
