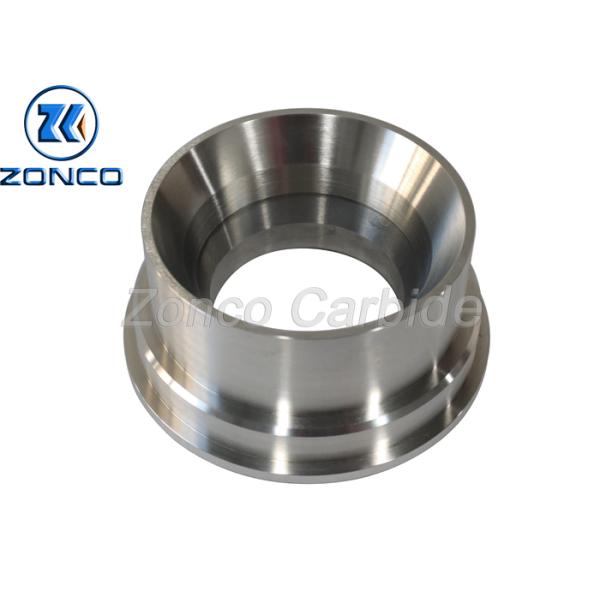

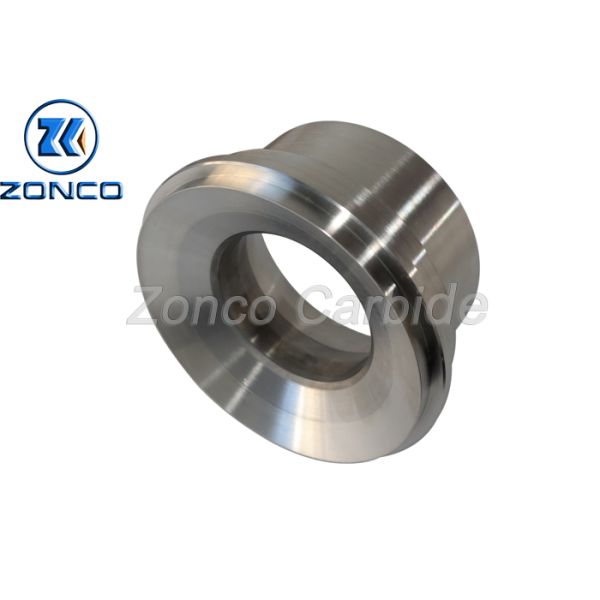

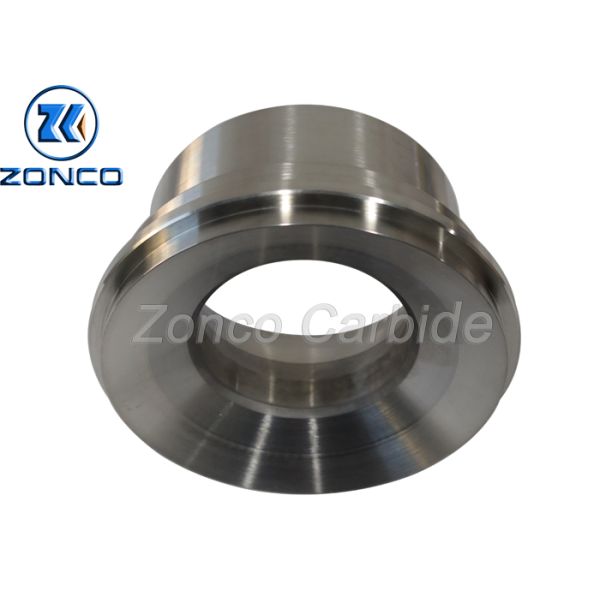

Tungsten Carbide Sleeve With Grinding Finishing High Temperature Resistance
Tungsten Carbide Sleeve With Grinding Finishing High Temperature Resistance
Tungsten Carbide Sleeve With Grinding Finishing High Temperature Resistance
Tungsten Carbide Sleeve With Grinding Finishing High Temperature Resistance
Tungsten Carbide Sleeve With Grinding Finishing High Temperature Resistance
Tungsten Carbide Sleeve With Grinding Finishing High Temperature Resistance
Tungsten Carbide Sleeve With Grinding Finishing High Temperature Resistance
Tungsten Carbide Sleeve With Grinding Finishing High Temperature Resistance
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
100000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Type :
Sleeve
Finishing :
Grinding
Features :
High Resistance
Application :
Pumps
Packing :
Wooden box
Color :
Silver
Description

Products Application

Tungsten carbide sleeves are used mainly for rotating support, aligning anti-thrust and seal of the axle of motor, centrifuge, protector and separator of the submerged electric pump in the adverse working conditions of high speed rotation, sand lash abrasion and gas corrosion in the oil field, such as slide bearing sleeve, motor axle sleeve, aligning bearing sleeve, anti-thrust bearing sleeve and seal axle sleeves.

Product Features:


High temperature resistance

The strength keeps stable up to 800℃ and the tungsten carbide bushing can even momentarily used at 1200℃.

High wear resistance

Due mainly to the unique inherent characteristics of the tungsten carbide phase, it has exceptional wear and galling resistance.

High corrosion resistance

This excellent and lovely property allows this kind of material parts to be used in oil & gas, slurry, acid liquid and any other mediums.

Advanced production process

Powder metallurgy process. It has better strength and granule structure.

Pressing with imported press machine, sintering with low pressure vacuum furnace, the hole shape of the product is positive, and the dimension tolerance is small.

Product show

Tungsten Carbide Sleeve With Grinding Finishing High Temperature Resistance

Tungsten Carbide Sleeve With Grinding Finishing High Temperature Resistance

Tungsten Carbide Sleeve With Grinding Finishing High Temperature Resistance

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2
