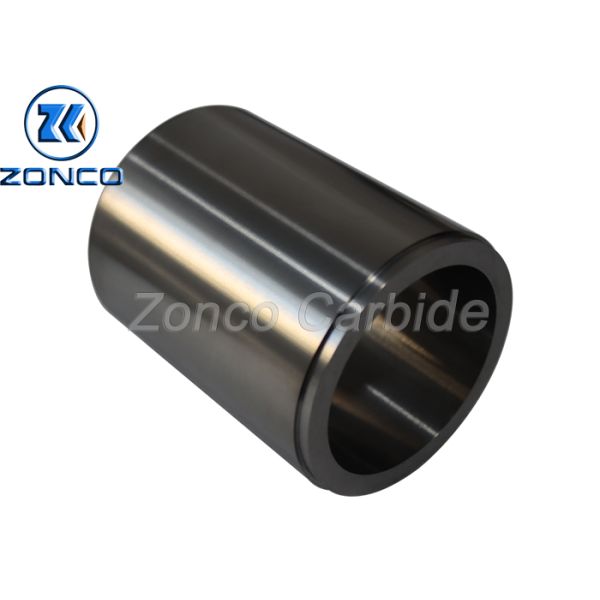

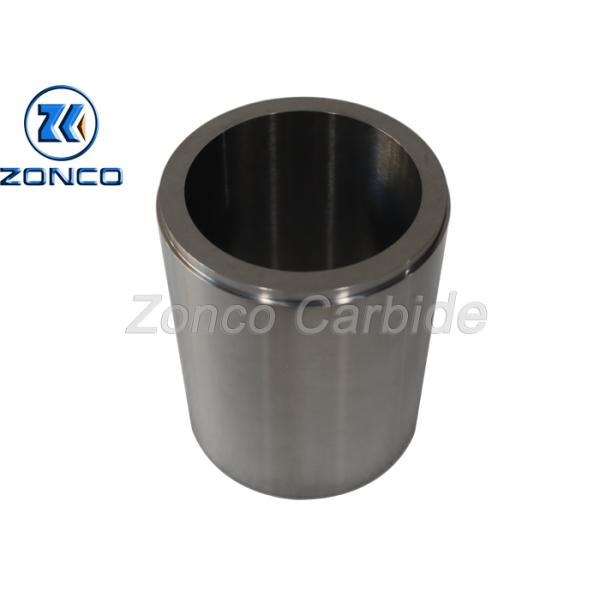

High Density Tungsten Carbide Sleeve For Oil And Gas Tools 8-150mm High
High Density Tungsten Carbide Sleeve For Oil And Gas Tools 8-150mm High
High Density Tungsten Carbide Sleeve For Oil And Gas Tools 8-150mm High
High Density Tungsten Carbide Sleeve For Oil And Gas Tools 8-150mm High
Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
1000000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Type :
Sleeve
Inside diameter :
3-260mm
High :
8-150mm
Outer diameter :
10~ 300mm
Application :
oil and gas industry
Name :
Carbide bushing
Description

Advantages

1. Good corrosion resistance.

2. High precision.

3. Ra0.2 roughness of surface.

4. Made from 100% Virgin raw material.

5. Stable and continuous production ability.

Product Application

The tungsten carbide sleeve is the supporting parts used in the mechanical parts, in order to achieve the sealing, wear protection and other functions.

In the field of valve applications, the tungsten carbide sleeve is in the bonnet and is the corrosion resistant materials for sealing.

In the field of bearing application, the carbide sleeves are used to reduce wear between the bearing and the shaft seat, and to avoid the increase of clearance between shaft and hole.

Tungsten carbide cylinder sleeves are often used in water pump, oil pump and other various pumps, especially used for high pressure or corrosion resistance pumps. It's used to seal the clearance between the rotating shaft and the stationary housing in equipment, such as pumps and mixers, so that liquid cannot leak out through this clearance.

Most of the tungsten carbide sleeves are customized parts. Please send the drawing to us. We will give our best offer to you!

Products show

High Density Tungsten Carbide Sleeve For Oil And Gas Tools 8-150mm High

High Density Tungsten Carbide Sleeve For Oil And Gas Tools 8-150mm High

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2
