Non Standard Cemented Tungsten Carbide Wear Parts For Oil & Gas Industry
Non Standard Cemented Tungsten Carbide Wear Parts For Oil & Gas Industry
Non Standard Cemented Tungsten Carbide Wear Parts For Oil & Gas Industry
Non Standard Cemented Tungsten Carbide Wear Parts For Oil & Gas Industry
Non Standard Cemented Tungsten Carbide Wear Parts For Oil & Gas Industry
Non Standard Cemented Tungsten Carbide Wear Parts For Oil & Gas Industry
Non Standard Cemented Tungsten Carbide Wear Parts For Oil & Gas Industry
Non Standard Cemented Tungsten Carbide Wear Parts For Oil & Gas Industry
Specifications
Brand Name :
Zonco
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
4-8 weeks depending on quantity
Packaging Details :
Standard package or to customer's demand
Certificate :
ISO9001:2015
Material :
Tungsten Carbide
Surface treatment :
mirror surface
Advantage :
Competitive
Color :
Silver-grey
Service :
OEM&ODM
Application :
Petroleum
Description

Customized non-standard cemented tungsten carbide erosion wear parts for oil & gas industry

Detailed Product Description:

Tungsten carbide represents a versatile seal ring material that is broadly applied in all acidic environments. It is generally the material of choice in applications where distortion due to high pressures or rapid wear in abrasive environments are modes of premature failure. Tungsten carbide seals possess a unique combination of high fracture strength and high hardness that minimizes or eliminates these problems. Other favorable properties of tungsten carbide seals include high thermal conductivity values and low coefficients of thermal expansion. These kinds of seal rings lifetime more than other material. There are enjoy high reputation at home and aboard. These characteristics promote the efficient removal of heat and provide dimensional stability at higher operating temperatures.

Product Feature of tungsten carbide ring:

1. Excellent abrasion resistance

2. High wear resistance

3. High fractural strength

4. high thermal conductivity

5. Small heat expansion co-efficient

Product Application of tungsten carbide ring:

1. Petroleum industry

2. Sewerage industry

3. Acid industry

4. Fluidity industry

5.Hydrocarbon industry

Etc.

Material characteristics:

The non-bonding phase nano cemented carbide material is developed for working conditions that require high wear resistance and corrosion resistance. By using the production technology of nano cemented carbide, the bending strength of the material can be improved. Therefore, products made from it can improve its resistance to damage.

Common alloy grades, physical and mechanical properties, and recommended applications

Grade Physical and mechanical properties
density(g/cm3) Flexural strength(N/mm2) hardness(HRA)
ZG01 15.3-15.5 1200 95.5
ZG06 14.8-15.1 2000 90.0
ZG6X 14.8-15.1 1860 91.8
ZG6A 14.8-15.1 2000 93.2
ZG08 14.6-14.9 2200 89.0
ZG11 14.3-14.7 2600 88.5
ZG12X 14.2-14.5 2850 89.5
ZG15 13.8-14.2 3000 86.5
ZG10.2 14.3-14.6 3500 91.5
ZN06 14.5-14.9 2000 90.0
ZN09 14.3-14.6 2300 89.0
ZN11 14.0-14.3 2600 88.0

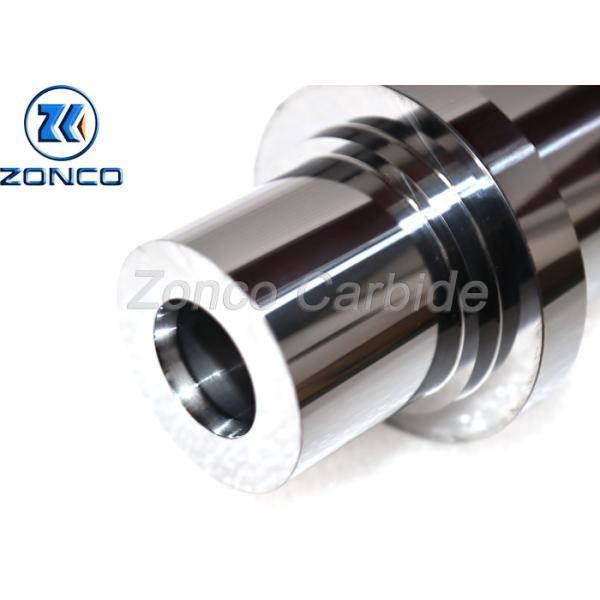

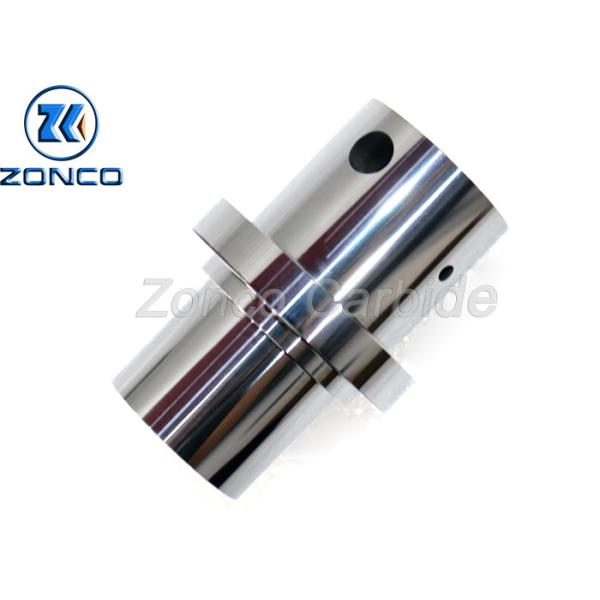

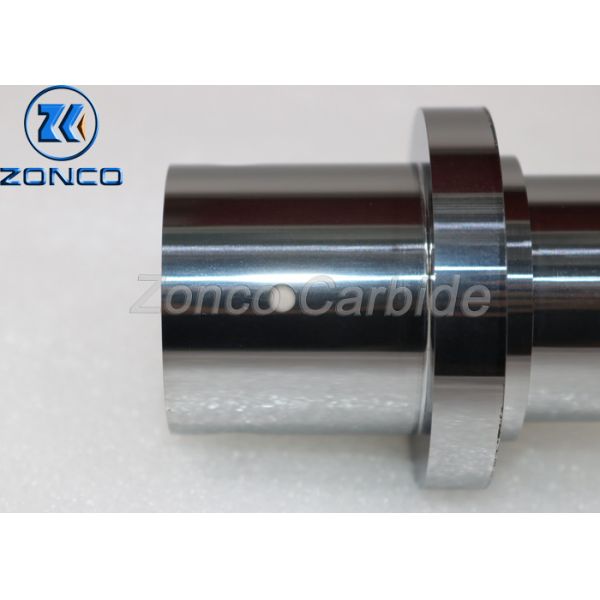

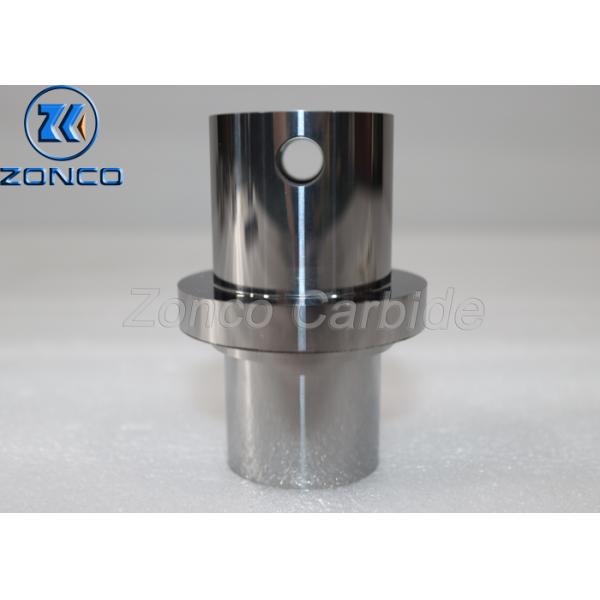

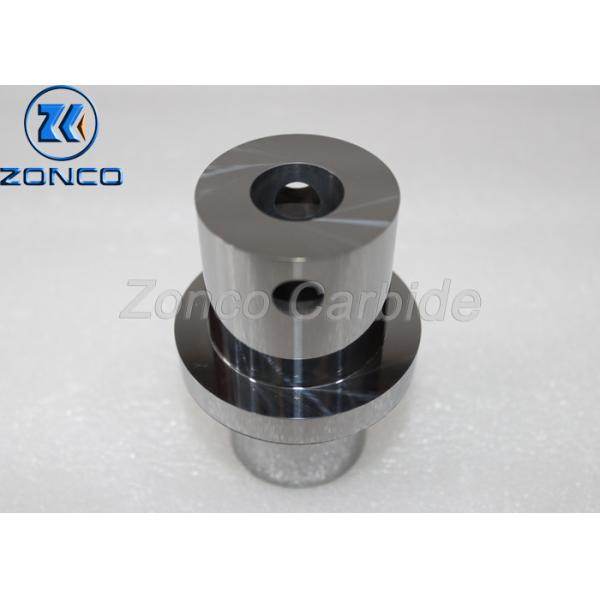

Pictures:

Non Standard Cemented Tungsten Carbide Wear Parts For Oil & Gas Industry

Non Standard Cemented Tungsten Carbide Wear Parts For Oil & Gas Industry

Advantages:

Zonco has been specialized in the cemented carbide industry for many years. It is particularly good at the production and processing of special-shaped non-standard parts. Zonco has not only a full set of processing equipment, but also unique processing technology as well. Zonco offers innovative solutions to meet the extreme complex and severe working conditions (high temperature, strong corrosion and wear) in energy, chemical industry and other industries.The company is dedicated to addressing production concerns to deliver productivity to customers seeking peak performance and providing products with high performance price ratio.

Main product line:

Cemented carbide valve core

Hard alloy valve seat

Cemented carbide porous sleeve

Carbide labyrinth valve
