Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
100000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Application :
Petroleum Chemical And Mechanic Industry
Hardness :
89.5HRA
Name :
Tungsten carbide nozzle
Grade :
YG6, YG6X, YG11, YG13X, YG15
Feature :
Good wear and corrosion resistance
Description

Tungsten Carbide Thread Nozzle For Petroleum Chemical And Mechanic Industry

A nozzle is a device designed to control the direction or characteristics of a flow (especially to increase velocity) as it exits (or enters) an enclosed chamber or pipe via an orifice.

For nozzles, tungsten carbide nozzle is the most rugged and durable and provides the best value.

Tungsten carbide nozzle is made by the precision machining with the tungsten carbide materials (super hard alloy). The hardness reached over HRA 90 degree while the anti bending degree reached over 2300N/mm.

Applications :

We are manufacturing tungsten carbide nozzle for use in roller cone and fixed cutter drill bits. Tungsten carbide nozzles are available in a wide range of styles and size combinations for Petroleum industry.

Features:

tungsten carbide nozzles have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

Product display

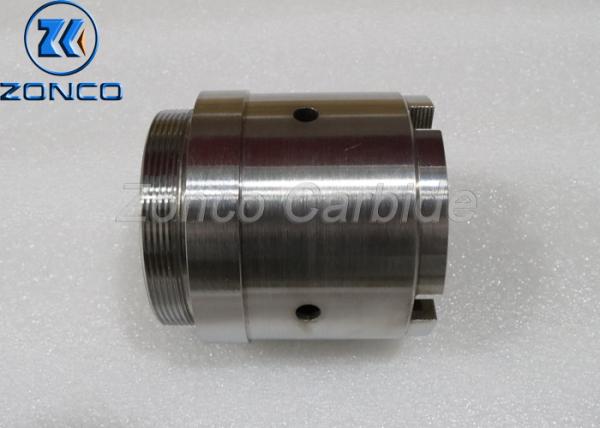

Tungsten Carbide Thread Nozzle For Petroleum Chemical And Mechanic Industry

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
GradeWC%Co/Ni %Physical and mechanical propertiesGrain size (μm)Recommended application
Density (g/cm3)TRS (N/mm2)Hardness (HRA)
ZG01100015.3-15.5120095.50.3Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X96415.0-15.2160092.80.8-1.0Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG0694614.8-15.1250090.01.2Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X94614.8-15.1240091.51.0Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A94614.8-15.1215092.50.6-0.8
ZG0892814.6-14.9270089.01.2-1.6Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2901014.3-14.6380091.70.7Good general performance, suitable for casing and oil nozzle products
ZG11891114.3-14.7280088.51.2-1.6Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X881214.2-14.5300089.51.0-1.2Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15851513.8-14.2300086.51.2-1.6
ZG15X851513.8-14.2450089.00.7Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20802013.4-13.8310085.01.0Excellent wear resistance and toughness
ZN0694614.5-14.9200090.01.2Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN0991914.3-14.6230089.01.2-1.6
ZN11891114.0-14.3260088.01.2
