Specifications
Brand Name :
ZONCO
Model Number :
Customized
Certification :
ISO9001:2015
Place of Origin :
Zhuzhou
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
1000000 piece/pieces per month
Delivery Time :
30-35 working days
Packaging Details :
carton or wooden case. Also can be customized as per your requirement.
Type :
Power Tool Parts
Cobalt Content :
8%, 10%, 6%
Surface :
Ground or Blanks
Name :
Tungsten carbide nozzle
Application :
PDC drill bits and roller core flushing
Packing :
Wooden box
Description

Customized Tungsten Carbide Mini Nozzles

Quick details

Type: Power Tool Parts Model Type:Customized Trade Term: CIF,EXW,FOB
Cobalt Content (%): 8%, 10%, 6% Virgin material:100% Surface: Ground or Blanks
Trial Order: Acceptable OEM Service: Acceptable Delivery Time: Shipped in 10 days after payment

Product Description

The cemented carbide nozzles will be used mainly to PDC drill bits and roller core flushing, drill bits for cooling and lubrication drill bit tips and cleaning stone chips in the well bottom with drilling liquid in the working conditions of high pressure, vibration, sand and slurry impacting during oil and natural gas prospecting.

Main Products

Cross groove thread nozzles, plum blossom type thread nozzles, outer hexagonal thread nozzles, internal hexagonal thread nozzles, Y type(three grooves) thread nozzles, gear wheel drill bit nozzles and press fracturing nozzles, there are various sizes and types of the products. We can recommend, design, develop, produce and supply the products according to the drawings and requirements of the customers.

Our Advantages:

Experienced with high producing technology and facilities

Varying sizes and customized needs available

Quality and quantity assured

Factory direct price

Trial order accepte

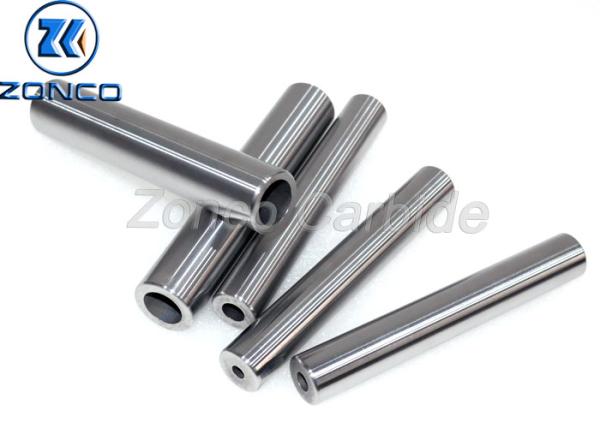

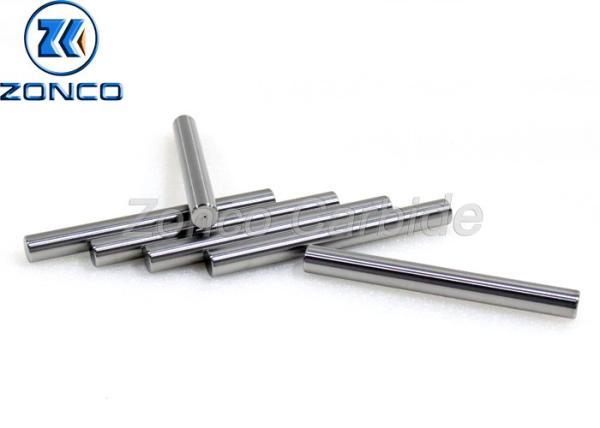

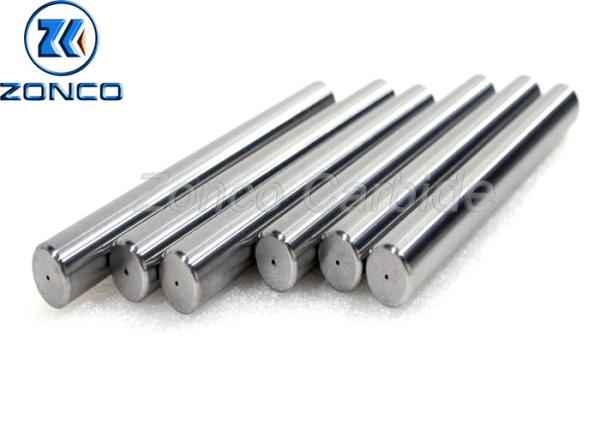

Product display

Customized Mini Tungsten Carbide Nozzle Power Tool Parts OEM Service Acceptable

Customized Mini Tungsten Carbide Nozzle Power Tool Parts OEM Service Acceptable

Customized Mini Tungsten Carbide Nozzle Power Tool Parts OEM Service Acceptable

Common alloy grates,ghysical mechanical properties and recommended application

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade WC% Co/Ni % Physical and mechanical properties Grain size (μm) Recommended application
Density (g/cm3) TRS (N/mm2) Hardness (HRA)
ZG01 100 0 15.3-15.5 1200 95.5 0.3 Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X 96 4 15.0-15.2 1600 92.8 0.8-1.0 Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06 94 6 14.8-15.1 2500 90.0 1.2 Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X 94 6 14.8-15.1 2400 91.5 1.0 Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A 94 6 14.8-15.1 2150 92.5 0.6-0.8
ZG08 92 8 14.6-14.9 2700 89.0 1.2-1.6 Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2 90 10 14.3-14.6 3800 91.7 0.7 Good general performance, suitable for casing and oil nozzle products
ZG11 89 11 14.3-14.7 2800 88.5 1.2-1.6 Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X 88 12 14.2-14.5 3000 89.5 1.0-1.2 Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15 85 15 13.8-14.2 3000 86.5 1.2-1.6
ZG15X 85 15 13.8-14.2 4500 89.0 0.7 Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20 80 20 13.4-13.8 3100 85.0 1.0 Excellent wear resistance and toughness
ZN06 94 6 14.5-14.9 2000 90.0 1.2 Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09 91 9 14.3-14.6 2300 89.0 1.2-1.6
ZN11 89 11 14.0-14.3 2600 88.0 1.2
